Products

Hyundai Translead delivers purposeful innovation and unmatched manufacturing. Through modern product development, proven engineering strategies, and a world-class testing and innovation center, Hyundai Translead ensures quality and an effective solution to product evolution.

Every product in our portfolio benefits from consistent attention to detail, outstanding engineering ingenuity, and the ability to accommodate your customization needs. We offer a wide-range of products all focused on moving your business forward, from Dry Vans and Refrigerated Vans, to Flatbeds, Chassis and Dollies. Browse our options to find the product best suited for your operations.

Dry Vans

Flexible, strong and serviceable, the Original is easily custom built to meet the specific needs of your operation. Computer controlled machine riveted sides and roof provide consistent, reliable quality.

Trailer Length Exterior: 53′ 0″
Interior: 52′ 6″
Trailer Width Exterior: 102.36″
Interior: 98.5″ lining to lining
Trailer Height Exterior: 13′ 6″
Interior: 110″
Capacity/GVWR 3,950 cu. ft./68,000 lbs
Floor Rating 18,000 lbs
Standard Weight 13,510 lbs

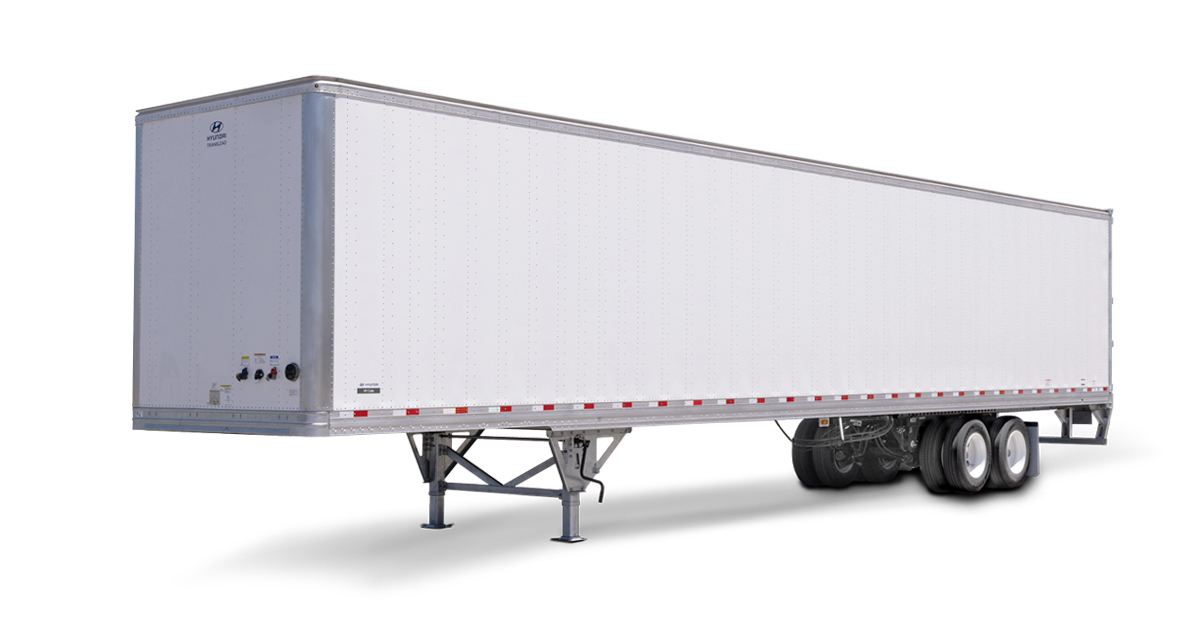

Our best-selling trailer offers greater interior width for increased load capacity and double decking capabilities. Snap-in plastic liners made of recycled materials are strong and easy to repair.

Trailer Length Exterior: 53′ 0″
Interior: 52′ 6″
Trailer Width Exterior: 102.36″
Interior: 101″ lining to lining
Trailer Height Exterior: 13′ 6″
Interior: 110″
Capacity/GVWR 4,050 cu. ft./68,000 lbs
Floor Rating 18,000 lbs
Standard Weight 13,855 lbs

Light and strong, this trailer is constructed with durable composite plate sidewalls. Sidewall design allows for quick and simple individual side panel replacement without removing the stiffeners – resulting in less downtime.

Trailer Length Exterior: 53′ 0″
Interior: 52′ 6″
Trailer Width Exterior: 102.36″
Interior: 101.50″ above side scuff, wall to wall
Trailer Height Exterior: 13′ 6″
Interior: 110″ front to back
Capacity/GVWR 4,070 cu. ft./68,000 lbs
Floor Rating 18,000 lbs
Tare Weight 13,350 lbs

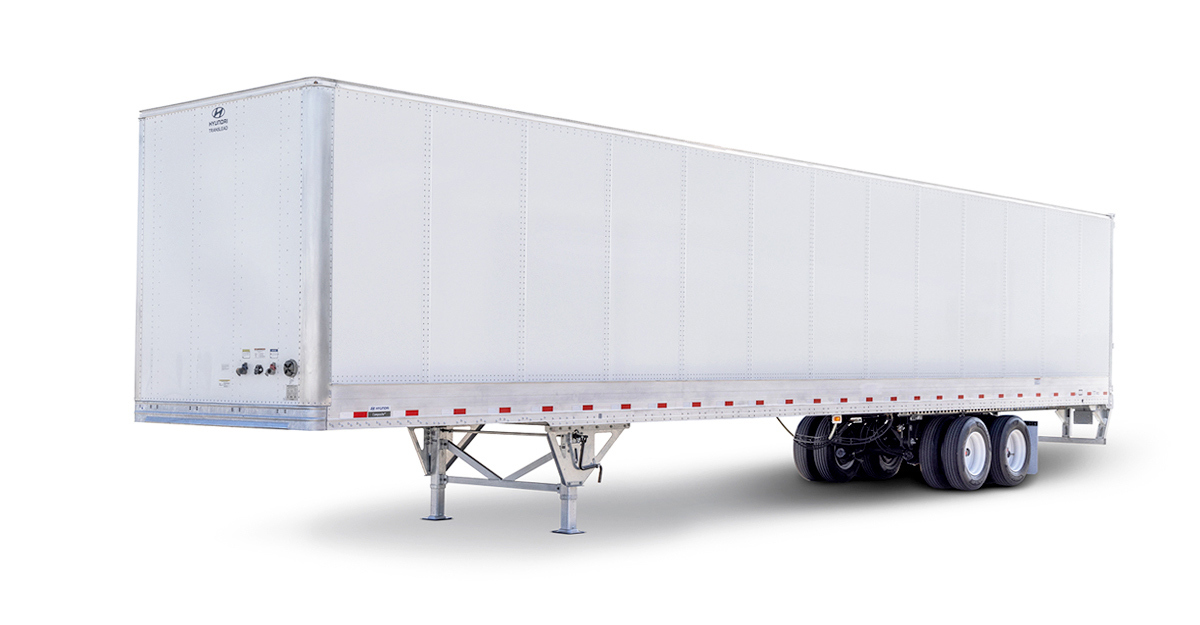

Versatile and innovative, The Composite XT uses the patented design of the Hyundai Plate trailer to offer ease of repairability not seen in other composite trailer designs.

Trailer Length Exterior: 53′ 0″
Interior: 52′ 6″
Trailer Width Exterior: 102.36″
Interior: 101.50″
Trailer Height Exterior: 13′ 6″
Interior: 110″
Capacity/GVWR 4,070 cu. ft./68,000 lbs
Floor Rating 18,000 lbs
Tare Weight 13,460 lbs

Refrigerated

Flatbeds

Light, durable, and long lasting, this series of refrigerated trailers leverages multiple years of transportation engineering ingenuity. All models can be tailored to meet your specific needs with a variety of customizable options.

Trailer Length Exterior: 53′ 0
Interior: 52′ 2″
Trailer Width Exterior: 102.36″
Interior: 97.4″ lining to lining
Trailer Height Exterior: 13′ 6”
Interior: 105.5″
Capacity/GVWR 3,722 cu. ft./68,000 lbs
Floor Rating 18,000 lbs
Standard Weight 11,950 lbs (excluding reefer unit)

Flatbeds

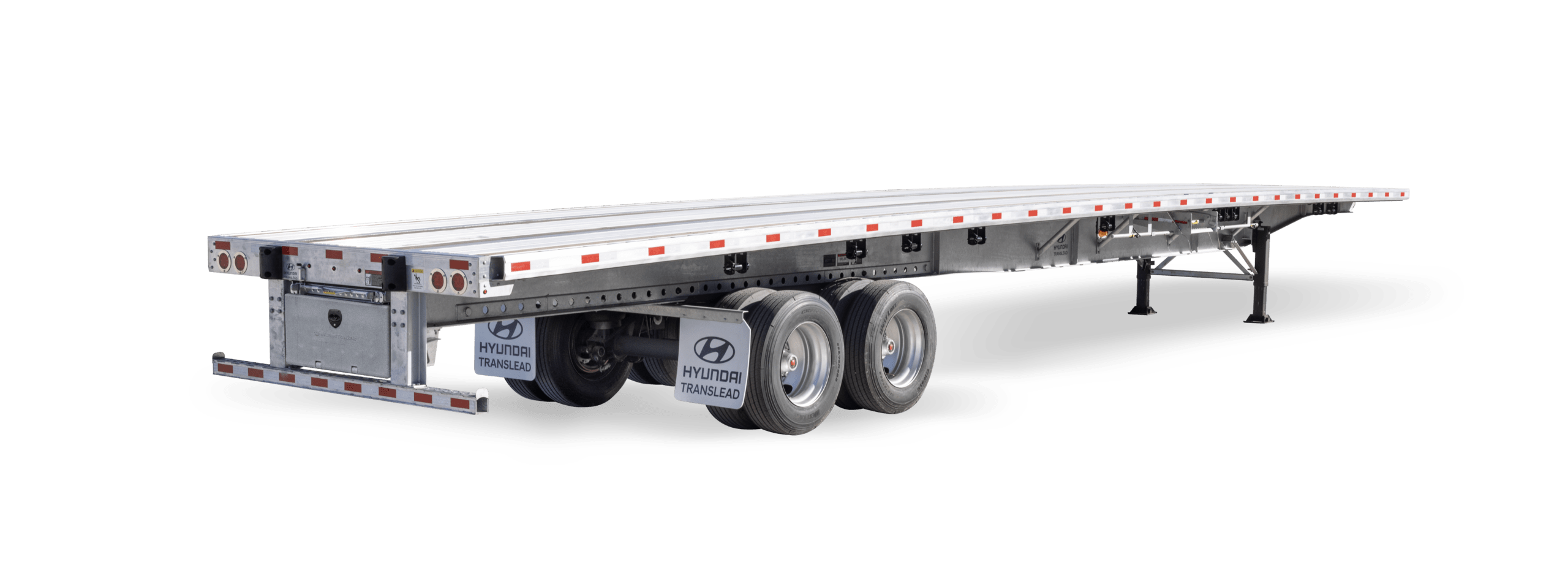

On this strong and capable flatbed trailer, all structural steel components are hot-dipped galvanized to protect against the elements. Our Hyundai Flatbed offers versatility, value and durability for the long haul.

Trailer Length 48′ 0
Trailer Width 102″
Fifth Wheel Height 47″ (Nominal)
Rear Deck Height 54.5″ (Maximum)
Capacity 10′: 68,000 lbs
4′: 55,000 lbs
Tare Weight 9,950 lbs

Chassis

Extendable Chassis

Hyundai Translead extendable chassis are all built with heavy-duty construction delivering strength and durability that lasts. Browse our extendable chassis solutions to find the configuration best suited for your business.

20’/40′ Tandem 6-Pin

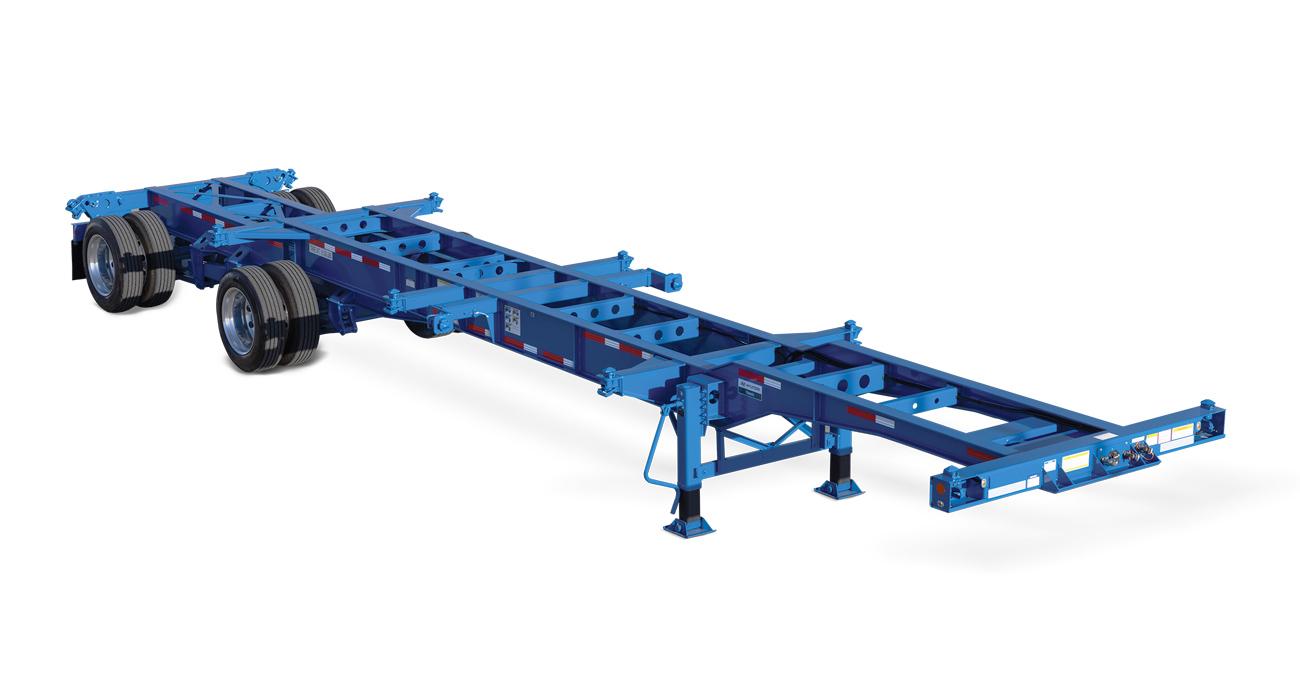

20’/40′ Tandem Spread 12-Pin
20’/40′ Tri-Axle
40′/45′ Extendable

Fixed Chassis

Hyundai Translead produces fixed chassis in a wide variety of sizes and specifications to fit the specific needs of your business. Our Hyundai Translead fixed chassis deliver strength and durability that lasts.

20′ Slider Tandem

20′ Slider Tri-Axle
40′ Gooseneck
40′ Lightweight Gooseneck

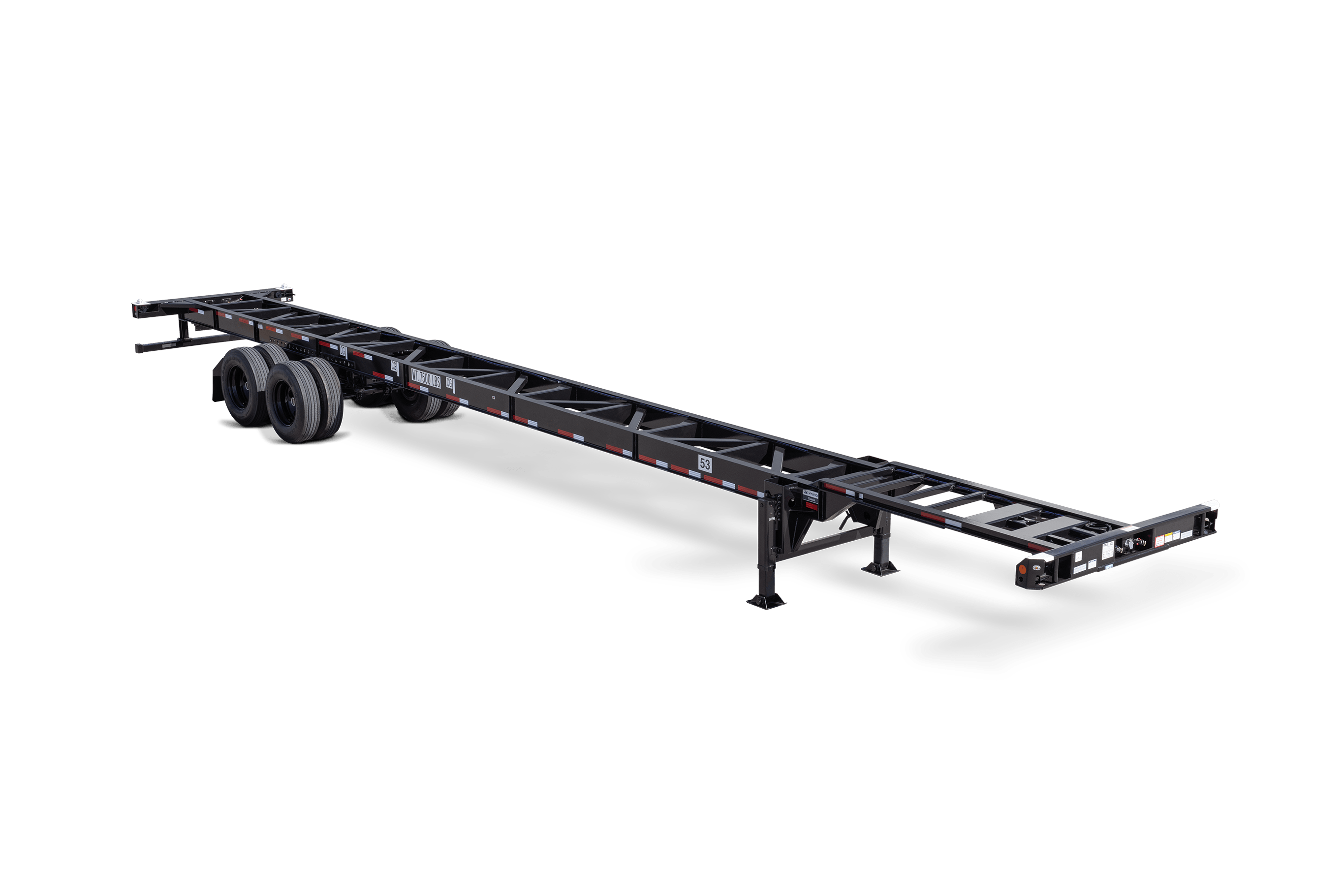

53′ Gooseneck

Dollies

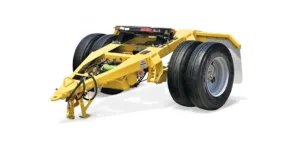

Front view of a single axel dolly

The Single-Axle Dolly is custom built to your fleet. Lightweight yet sturdy with hot-dipped galvanization and spring air suspension as an option, this dolly has the features to meet your needs.

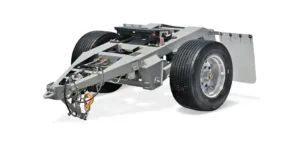

Front view of a wide single axel dolly

The Wide-Base Single Dolly is stronger and more stable. With hot-dipped galvanization and air ride suspension optional, this dolly offers all the tools to get the job done right.

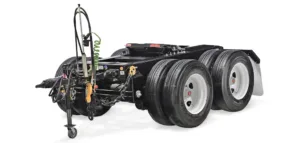

Front view of a tandem dolly

Our heavy-duty option, the Tandem-Axle Dolly features a hinged drawbar with swivel eye and corrosion resistant features. Built to order, the Tandem-Axle Dolly will perfectly fit your specifications.
