Extended Length
40′ 6-3/16″
Exterior Width
96″
Exterior Height
59″
Capacity (lbs)
20′ – 66,400
40′ – 74,400
GVWR (lbs)
20′ – 77,000
40′ – 85,000
Tare Weight
10,600 lbs
20′/40′ Tri-Axle 12-Pin

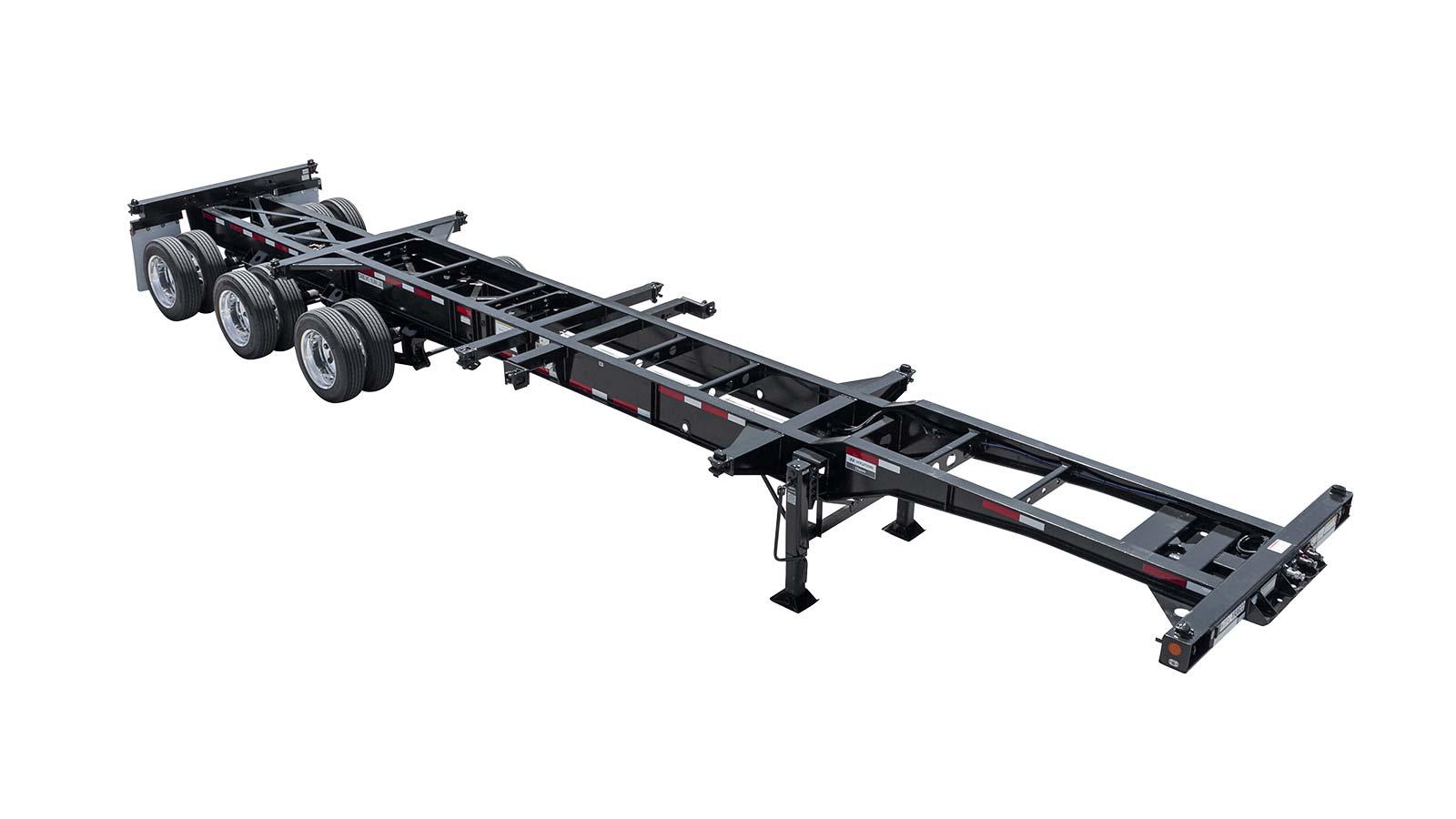

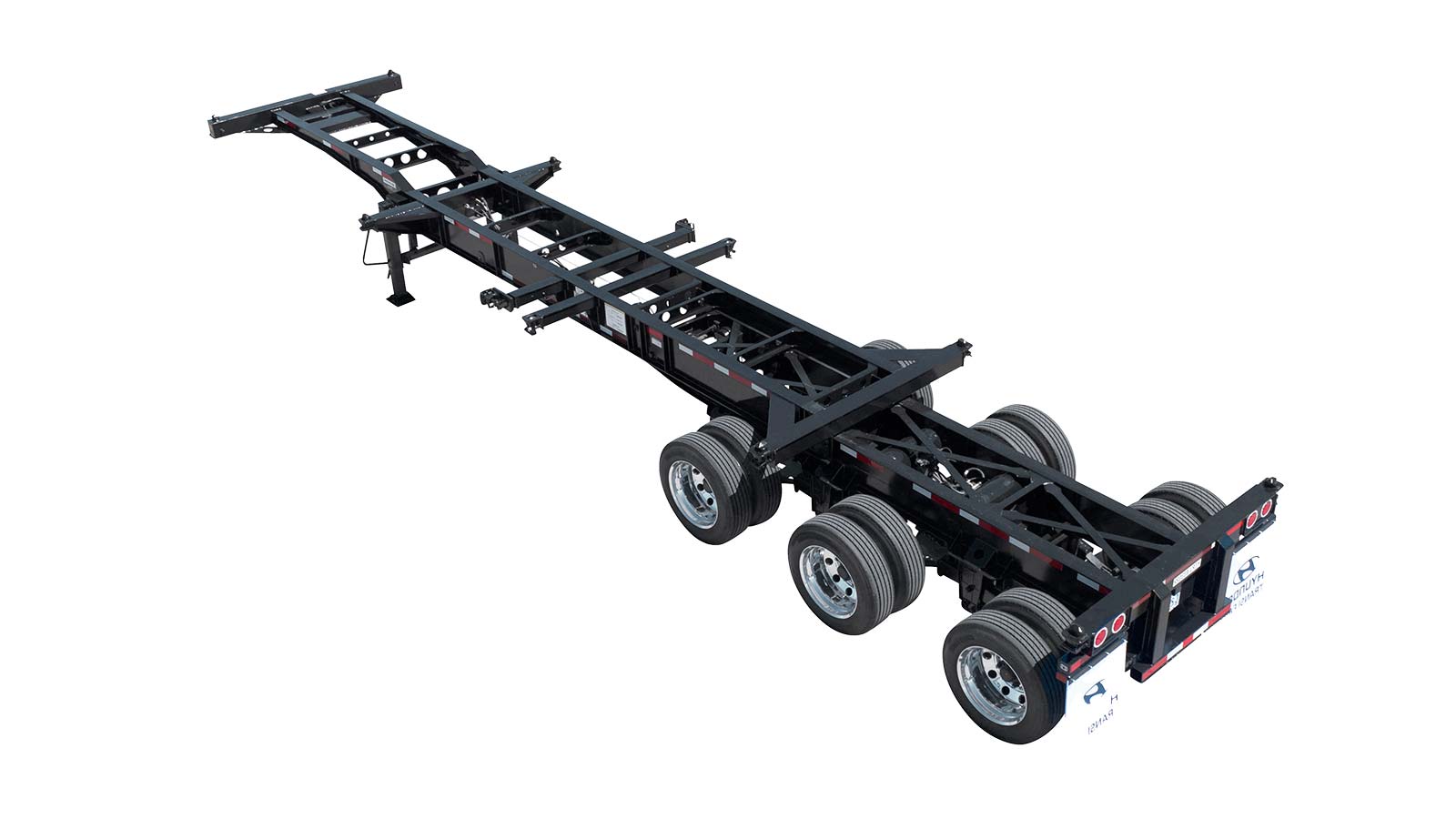

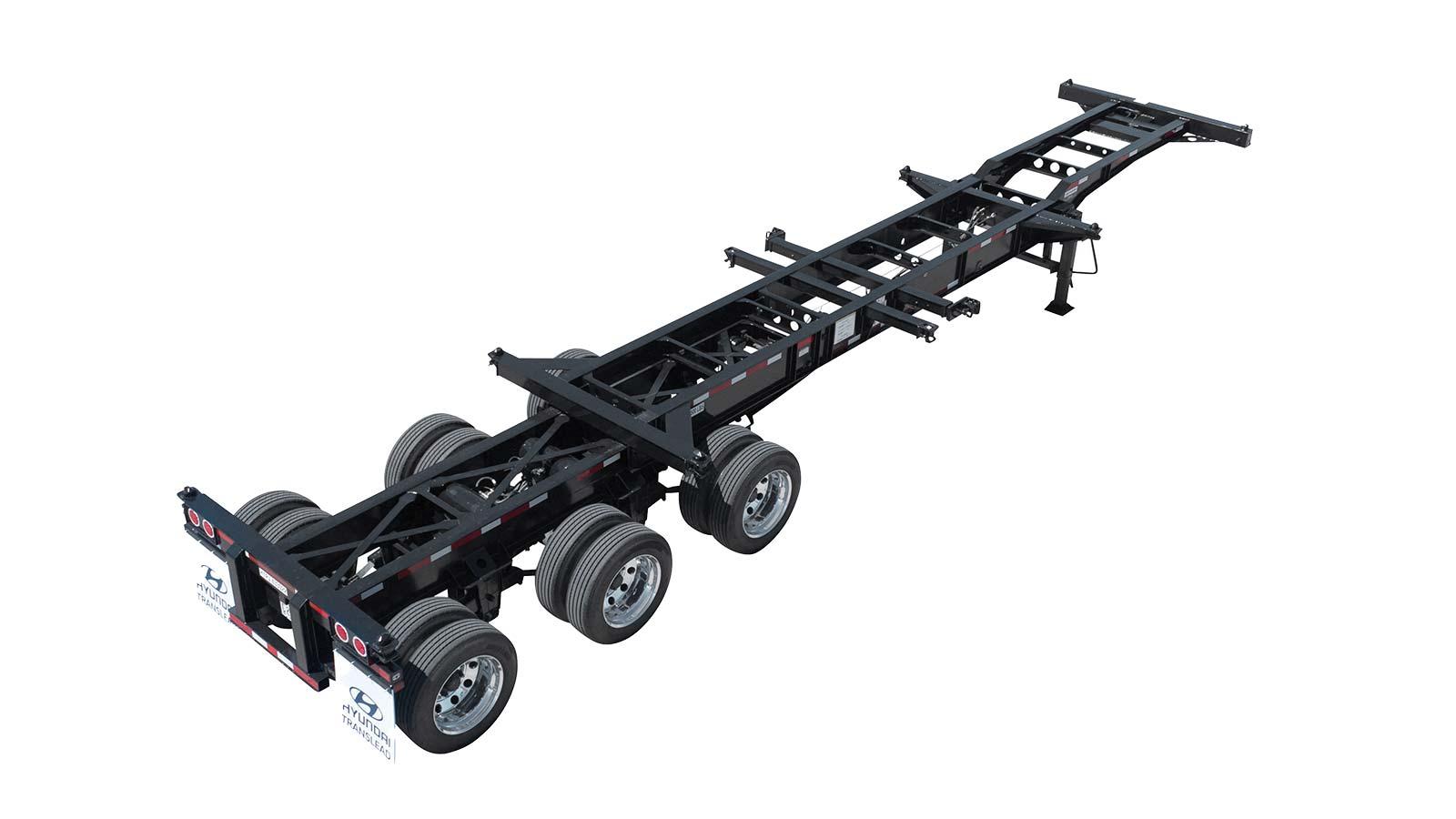

Offering the ability to carry multiple types of containers, this chassis works in multiple configurations. It carries one 40′ container, one 20′ container, or two empty 20′ containers and has a 77,000 lbs. GVWR for loaded 20′ container and 85,000 lbs. for loaded 40′ containers.
Extended Length
40′ 6-3/16″
Exterior Width
96″
Exterior Height
59″
Tare Weight
10,600 lbs
Capacity (lbs)
20′ – 66,400
40′ – 74,400
GVWR (lbs)
20′ – 77,000
40′ – 85,000

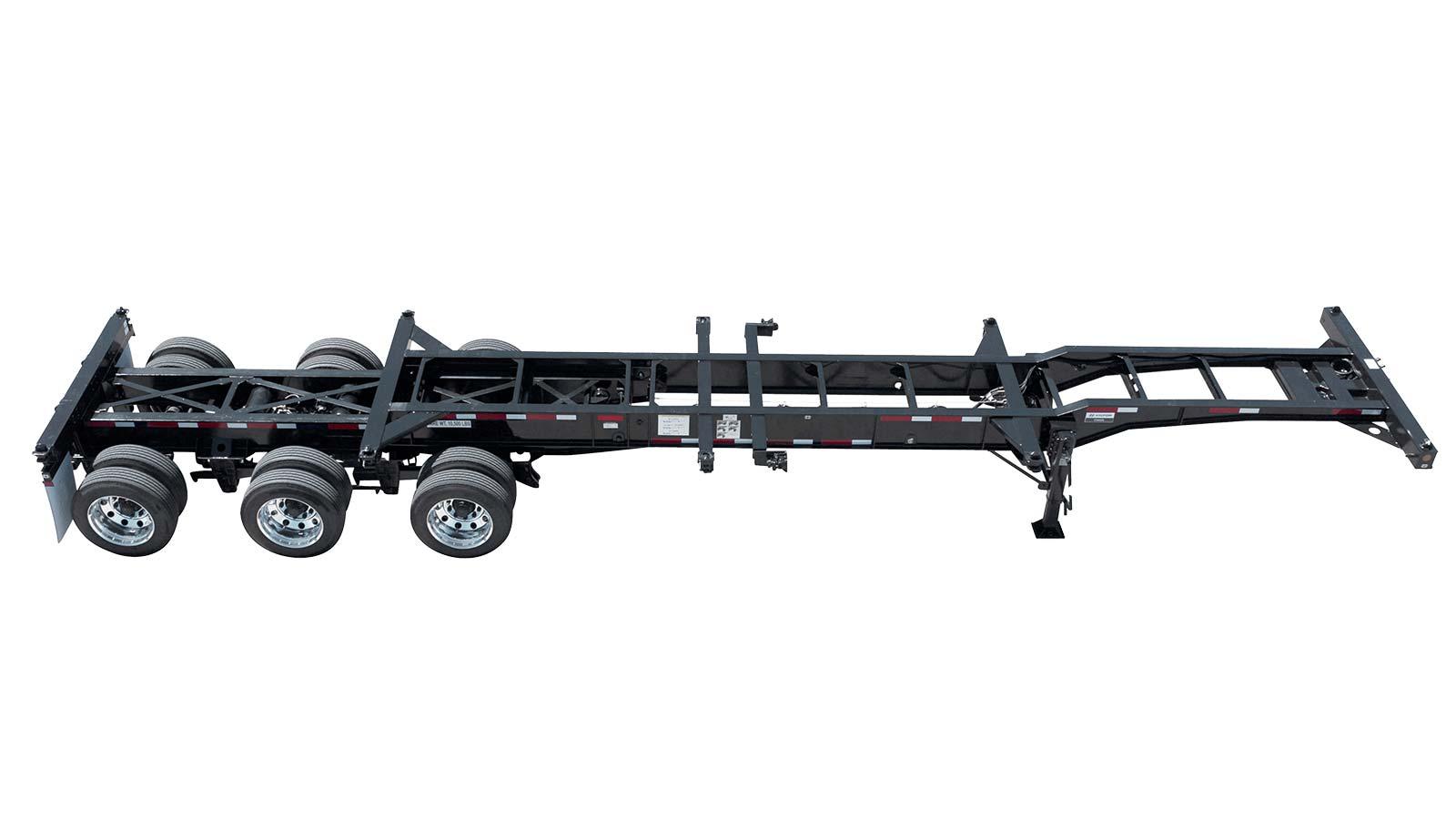

20′/40′ Tri-Axle 12-Pin Rotator

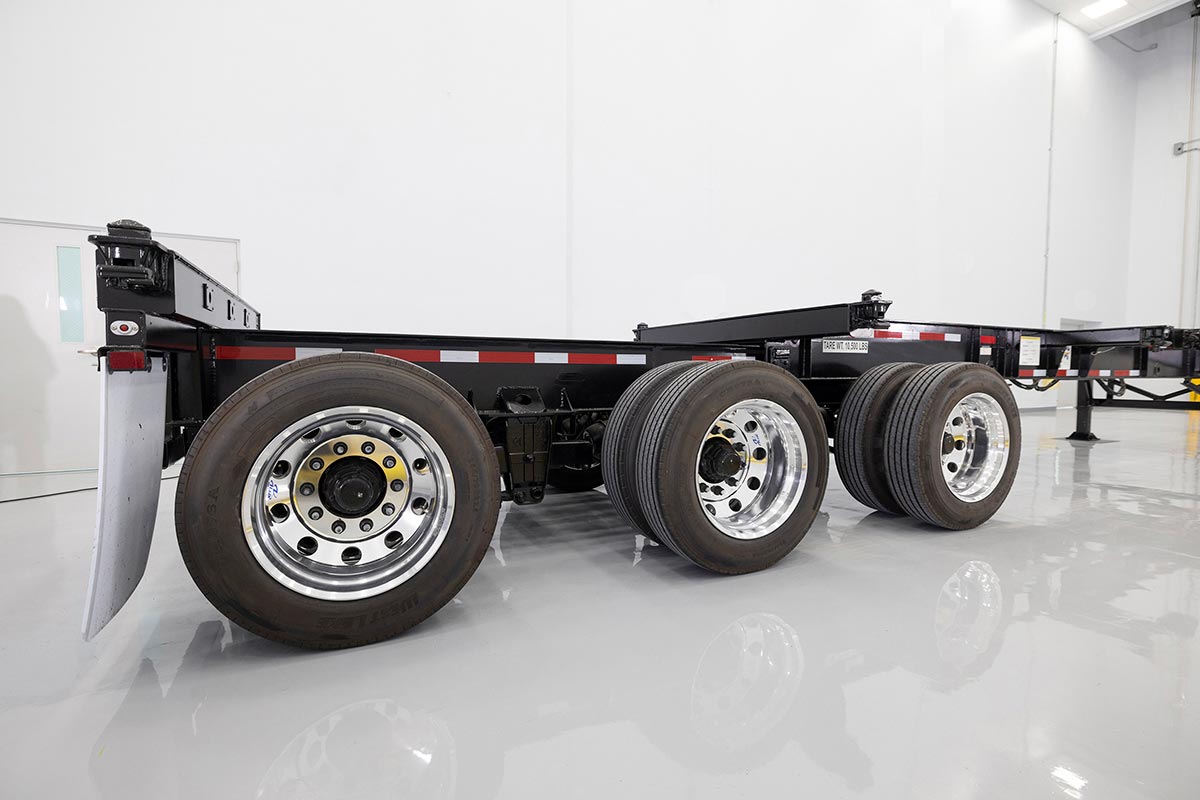

The Best Chassis From All Angles

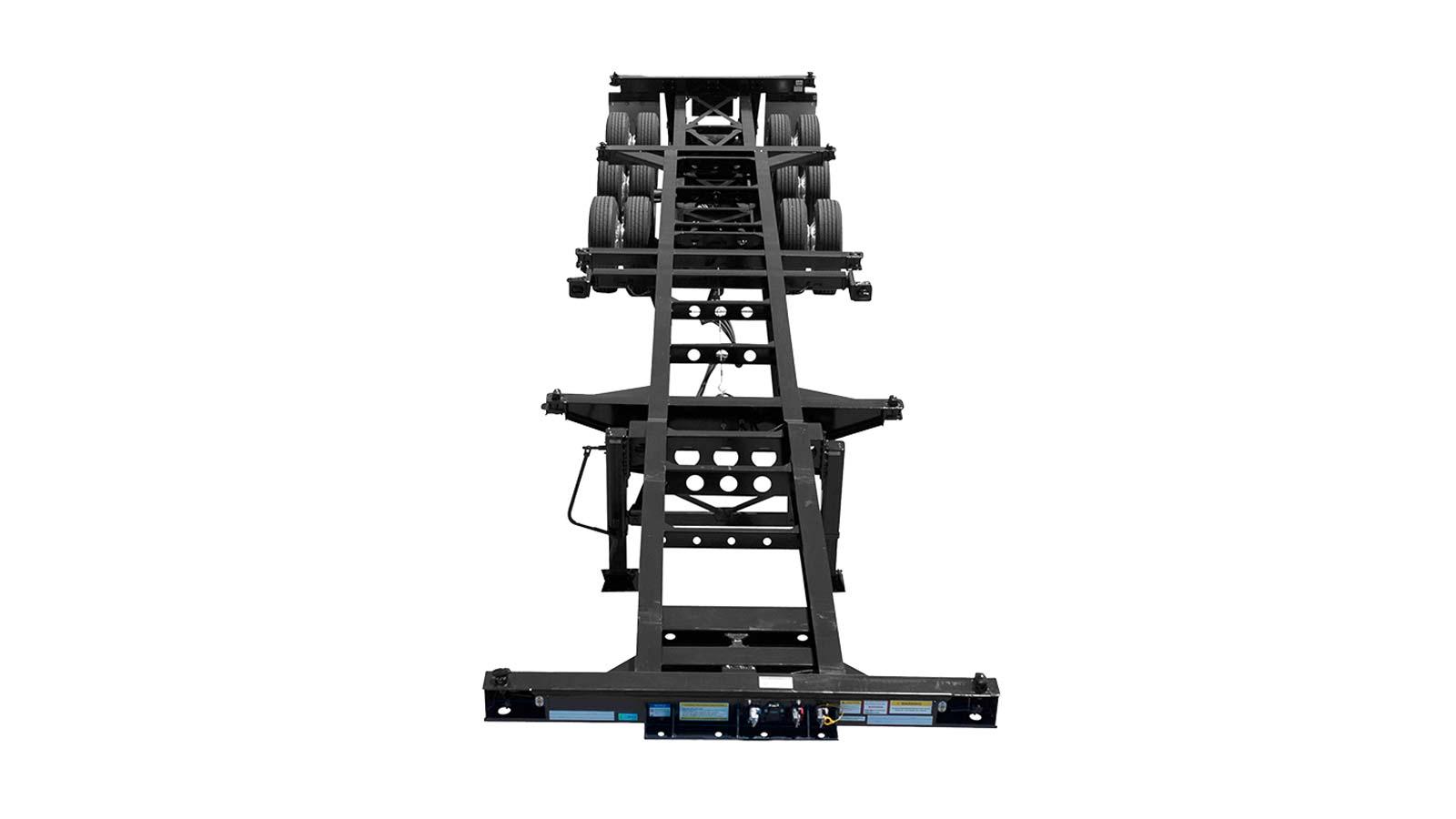

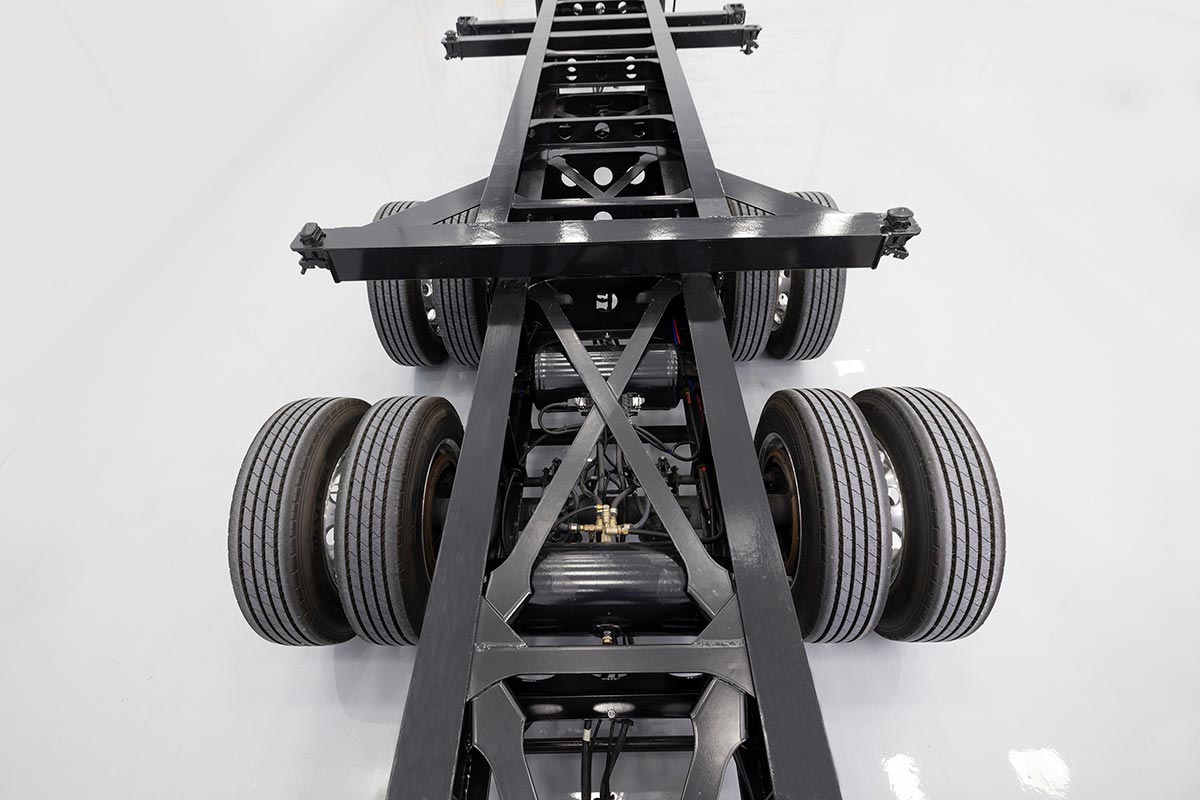

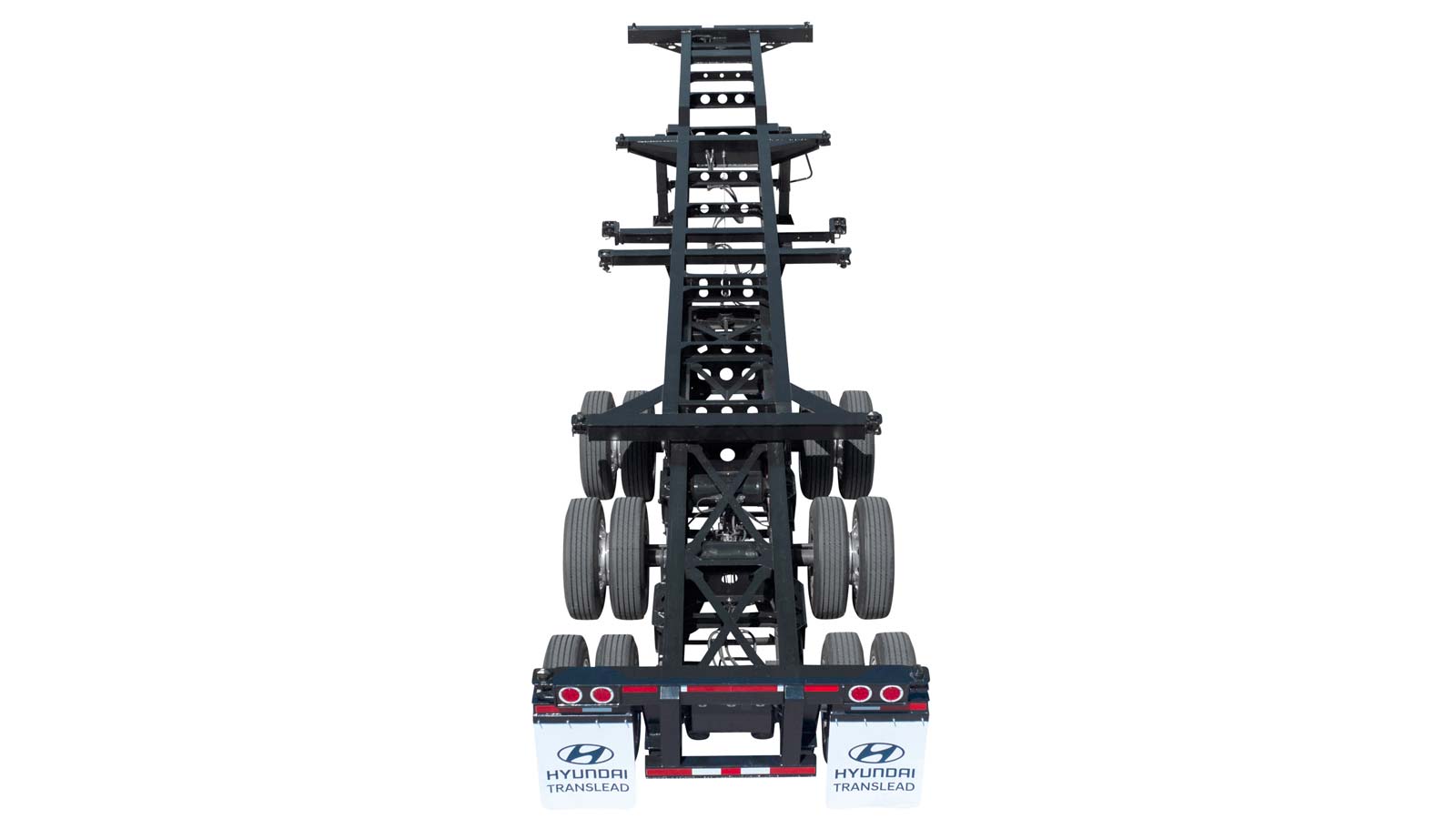

This chassis offers unbeatable versatility no matter the load. And it’s quality is easy to see front to back and side to side.

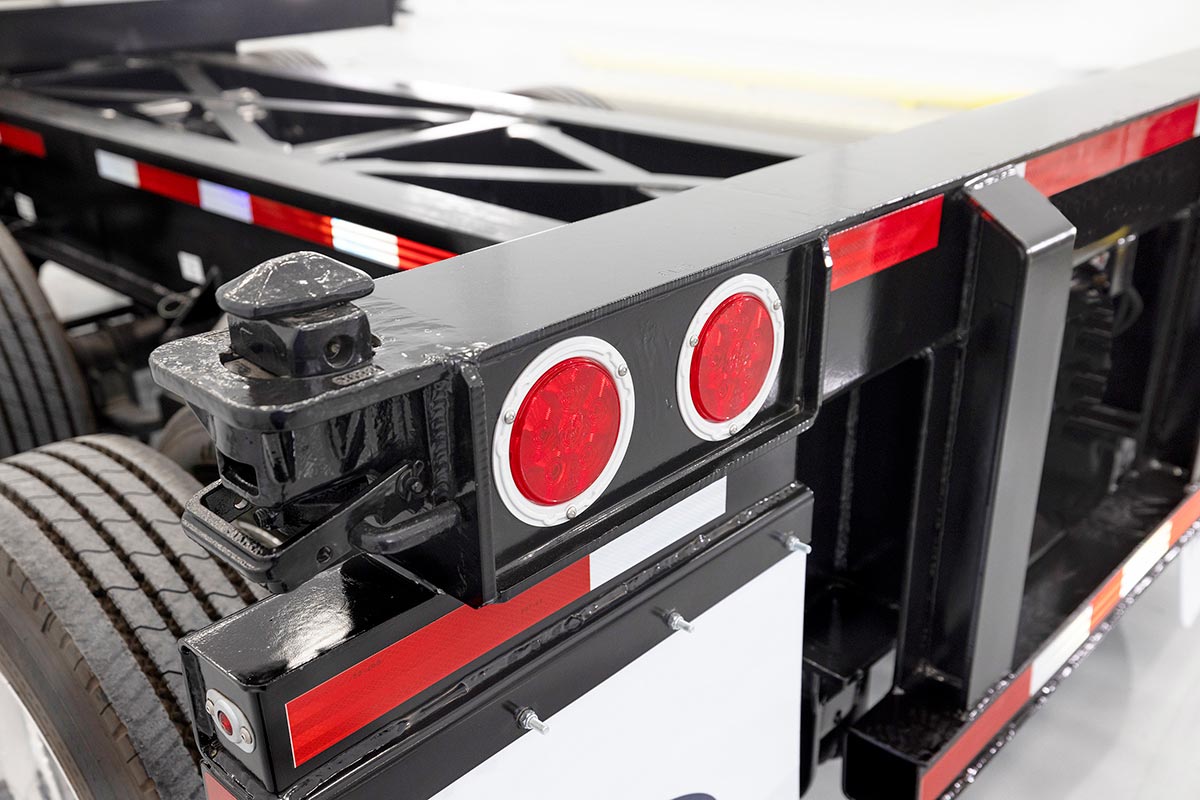

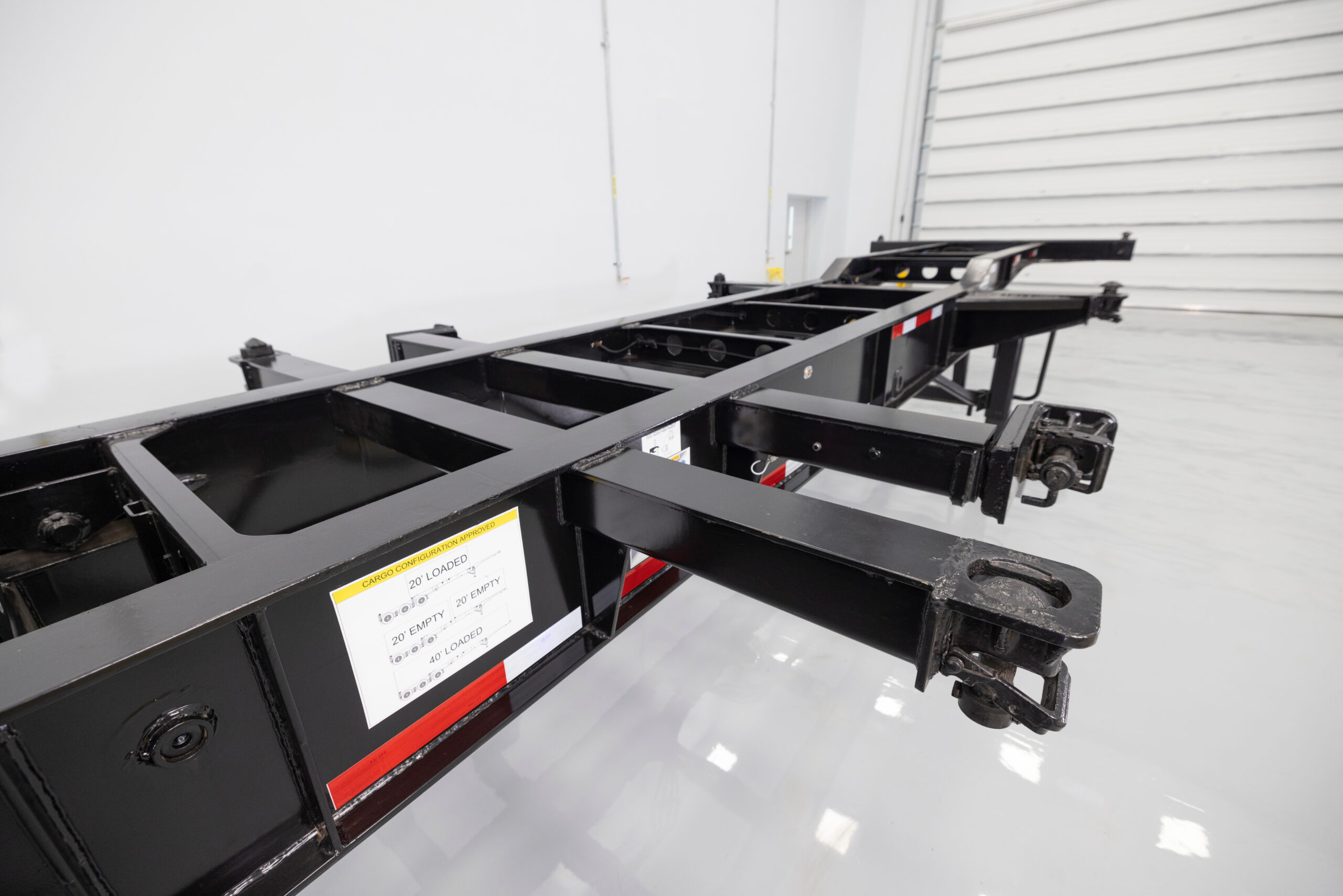

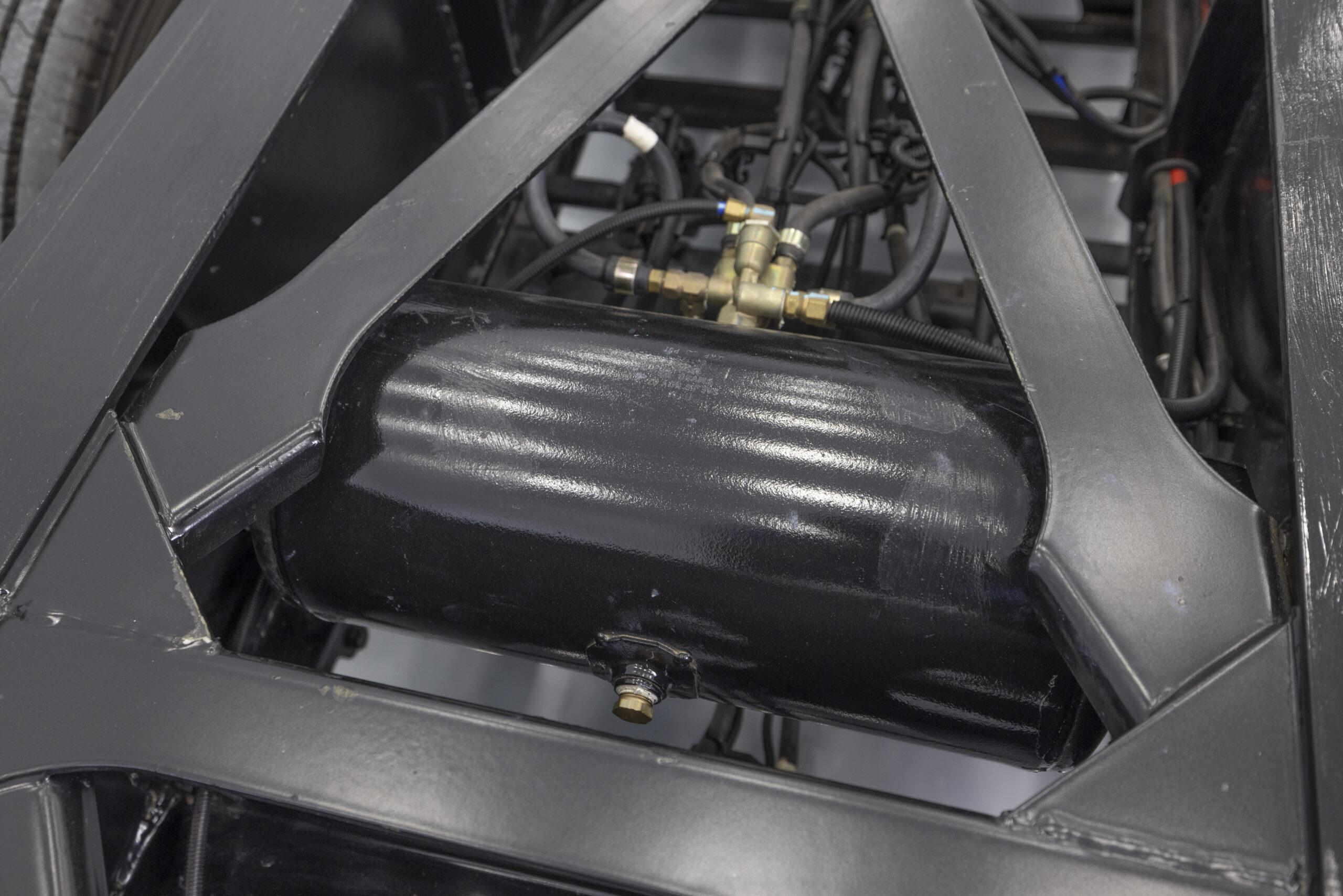

20′/40′ Tri-Axle 12-Pin Gallery
Hyundai Translead takes pride in quality, innovation, and manufacturing excellence that you can see on first impression. All Hyundai Translead chassis models are engineered for a long service life. The high-strength alloy steel construction provides strength and durability while reinforced bracing in the landing gear area showcases our commitment to excellence. Scroll through our photos to see features that deliver the quality you require.
Select the tabs above to view each specification category.
Product Specifications
The Tri-Axle 12-Pin is a stronger and more stable option. North America’s leading chassis manufacturer offers strength that lasts, variety for your specific needs, and versatile models that increase efficiency.
| Length | Closed: 32′ 1-1/4″ | Extended: 40′ 6-3/16″ |
|---|---|---|
| Width | 96″ | |
| Height | 59″ | |
| Capacity | 20′: 66,400 lbs | 40′: 74,400 lbs |
| Tare Weight | 10,600 lbs | |
| GVWR | 20′: 77,000 lbs | 40′: 85,000 l lbs |
Select the tabs above to view each specification category.
Body Construction
Built in our state-of-the-art manufacturing facility, the 20′/40′ Tri-Axle 12-Pin is made stronger and more efficient to help reduce costs and meet your specific intermodal needs.
| Main Beam | Fabricated “H” Beam with 1/2″ top & bottom flanges grade 130 and 3/16″ web grade GR80 |
|---|---|
| Gooseneck | Fabricated “H” beam w/ 1/2” top & bottom flanges grade 130 and 3/8” web GR80 |
| Crossmember | Fabricated channel with gussets integrated |

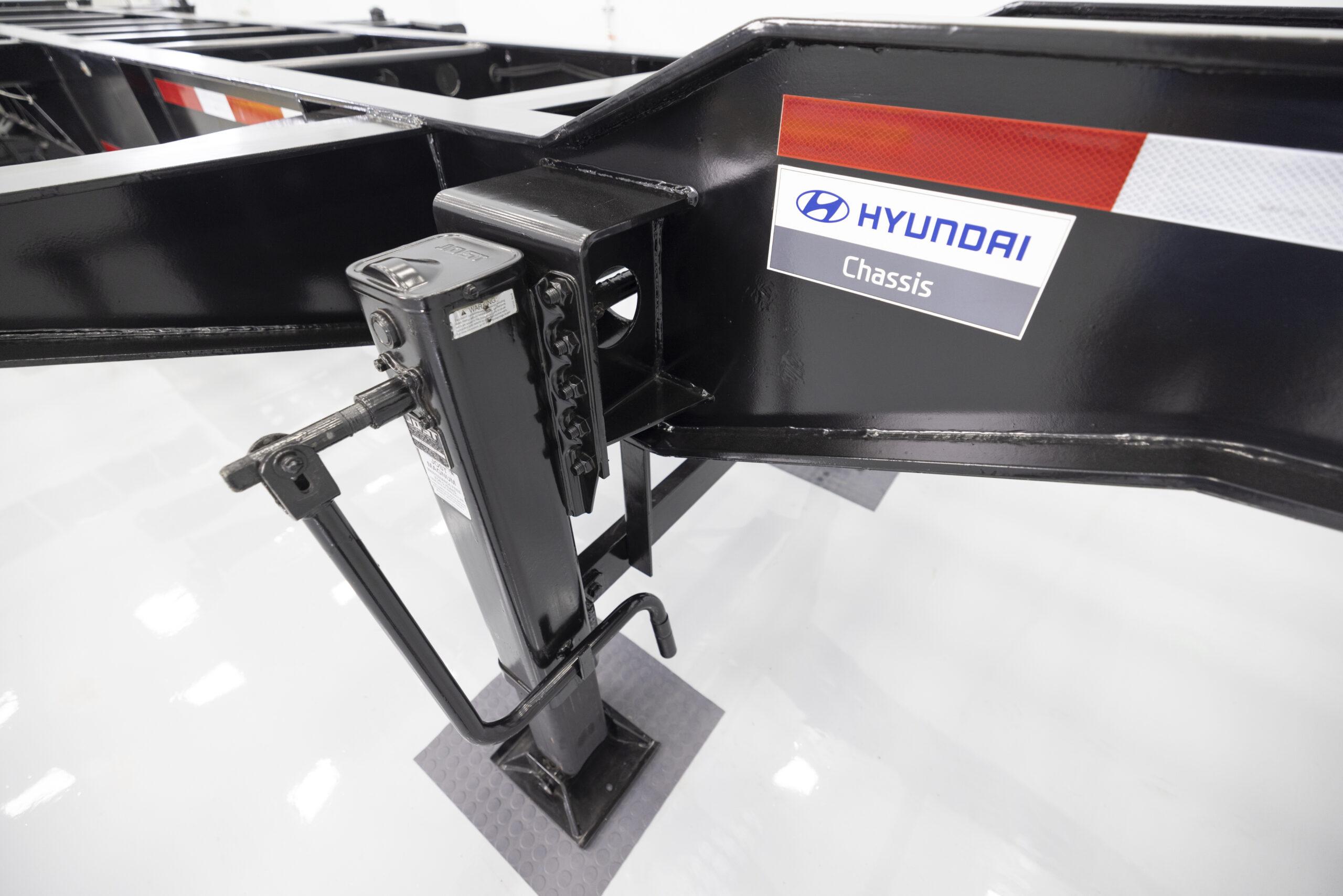

| Landing Gear | 62,500 lbs lift capacity with low profile sand shoe |

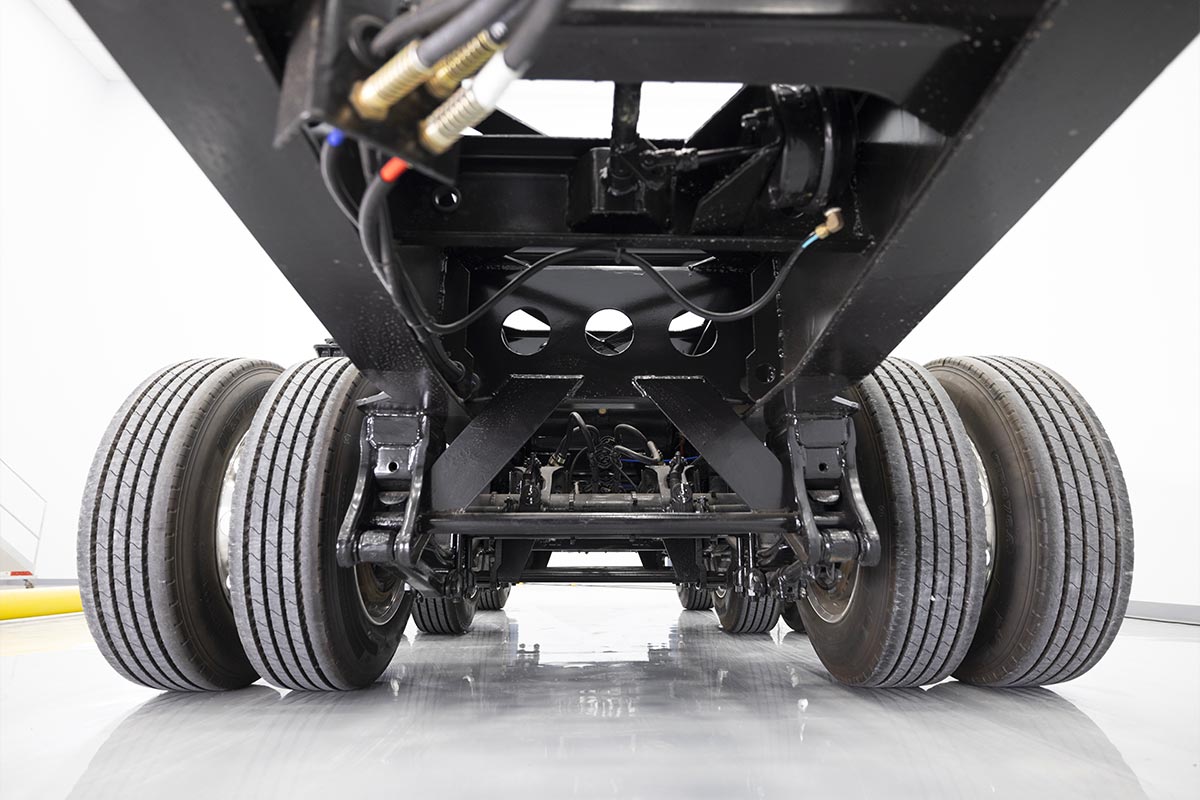

| Suspension | Hutchens Underslung Spring Hangers with two leaf springs |

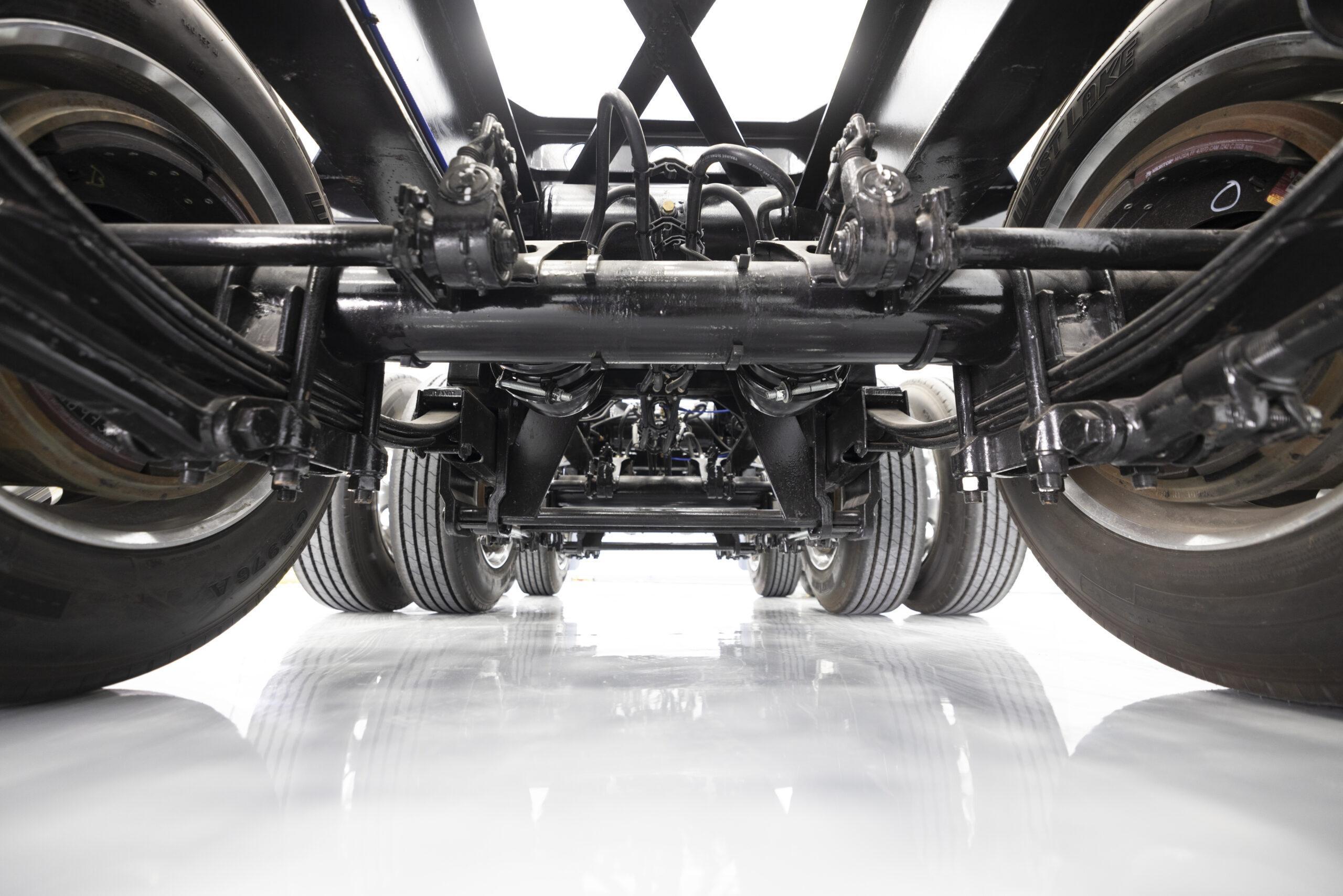

| Axles | 5” round type, 22,500 lbs rating, 71-1/2” track with 16-1/2” x 7” brake lining |
| Lights and Wiring | 12 Volts sealed system with molded connectors to fit sealed LED lamps |
Difference Makers
Innovative features that elevate the 20′/40′ Tri-Axle 12-Pin
Explore why and how this Hyundai Translead chassis is more durable and versatile for your needs.
Manufacturing & Materials
Hyundai Translead chassis are built in our state-of-the-art manufacturing facility with top-notch surface preparation, advanced corrosion protection, and highly automated running gear assembly.
Customizable Options
Our chassis can be built to multiple length configurations and with special features to meet your specific intermodal needs.
Durability
Structure and surfaces are hardened and protected against harsh elements and damage, including from vehicles, docks, yards and containers.
Longevity
Hyundai Translead builds chassis for longer service life, reducing total cost of ownership with longevity-focused features and a strong warranty.
Hot-Dipped Galvanization
Hyundai Translead offers hot-dipped galvanization of the complete chassis frame and components as an enhanced option to further protect against corrosion.

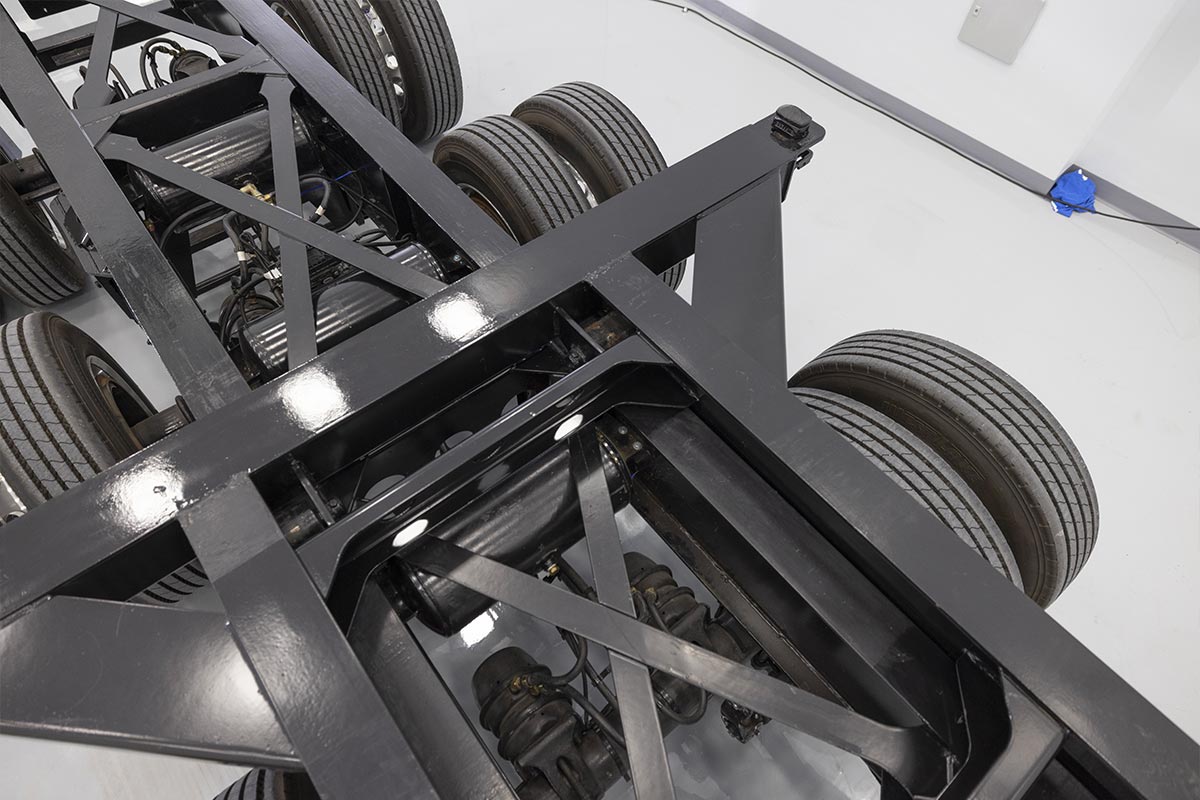

High-Strength Alloy Steel Construction
Hyundai Translead chassis are constructed with high-strength alloy steel for extra strength and durability.

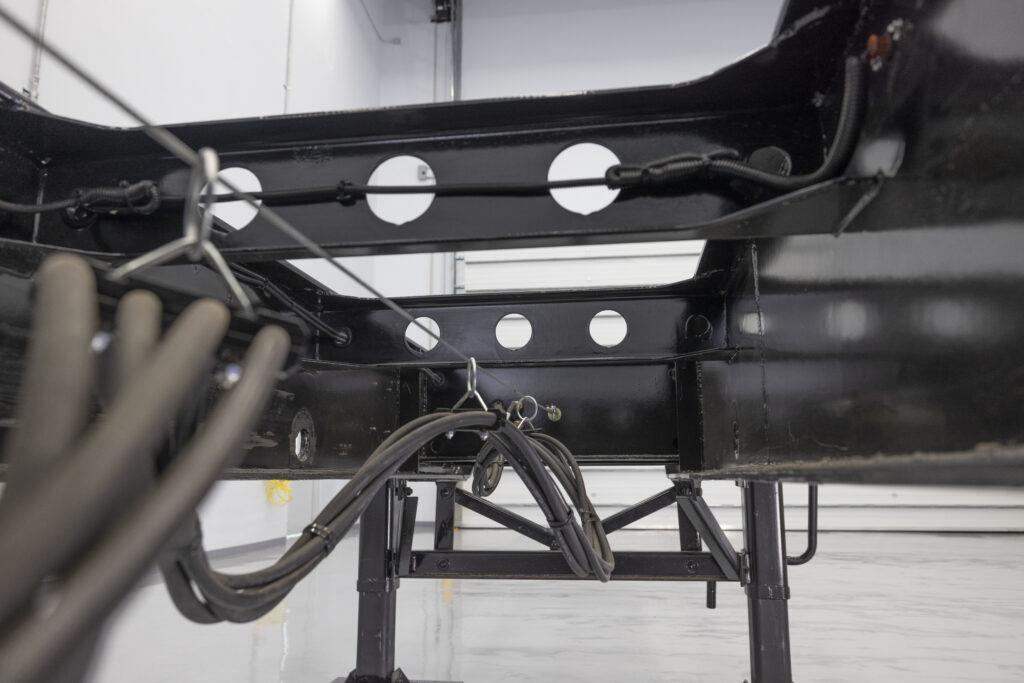

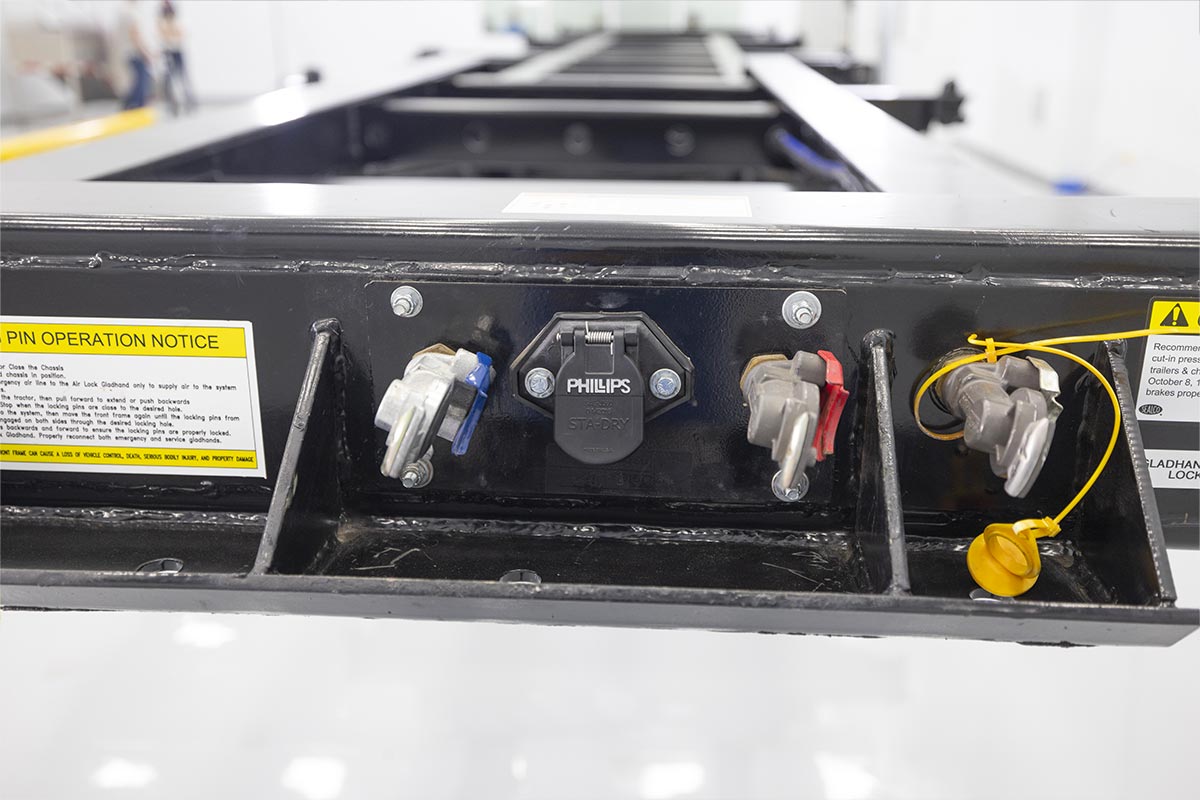

Sealed Wiring Harness with Integral Ground
Air and electrical lines protected with automotive wire loom for optimal wire protection.
