Trailer Length
53′ 0″
Exterior Width
102.36″
Exterior Height
13′ 6″
Capacity/GVWR
68,000 lbs
Floor Rating
18,000 lbs
Tare Weight
13,855 lbs

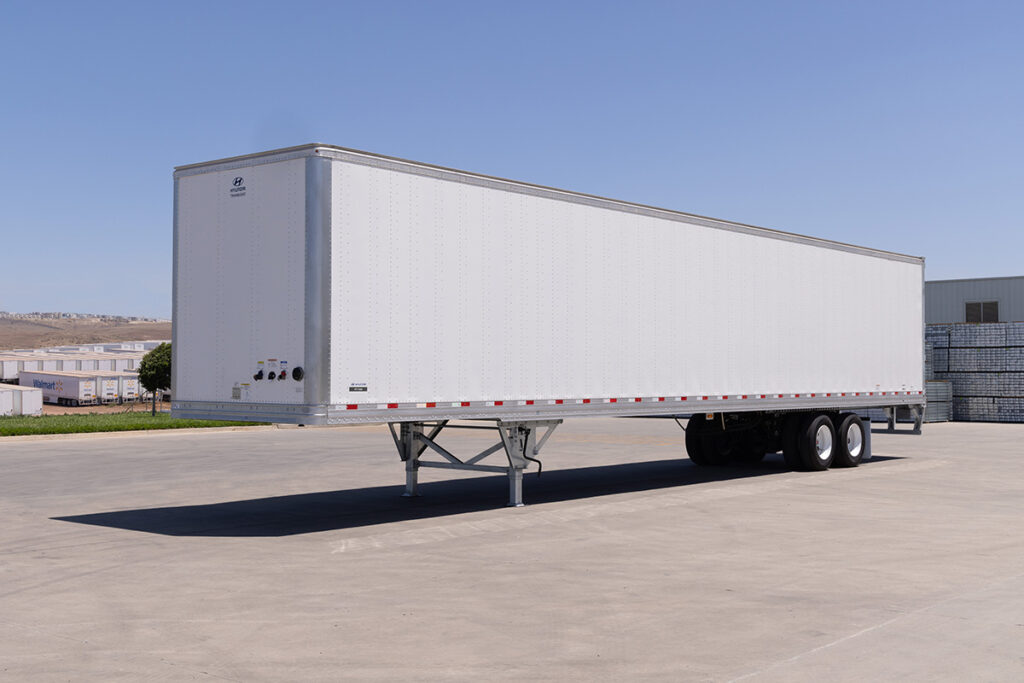

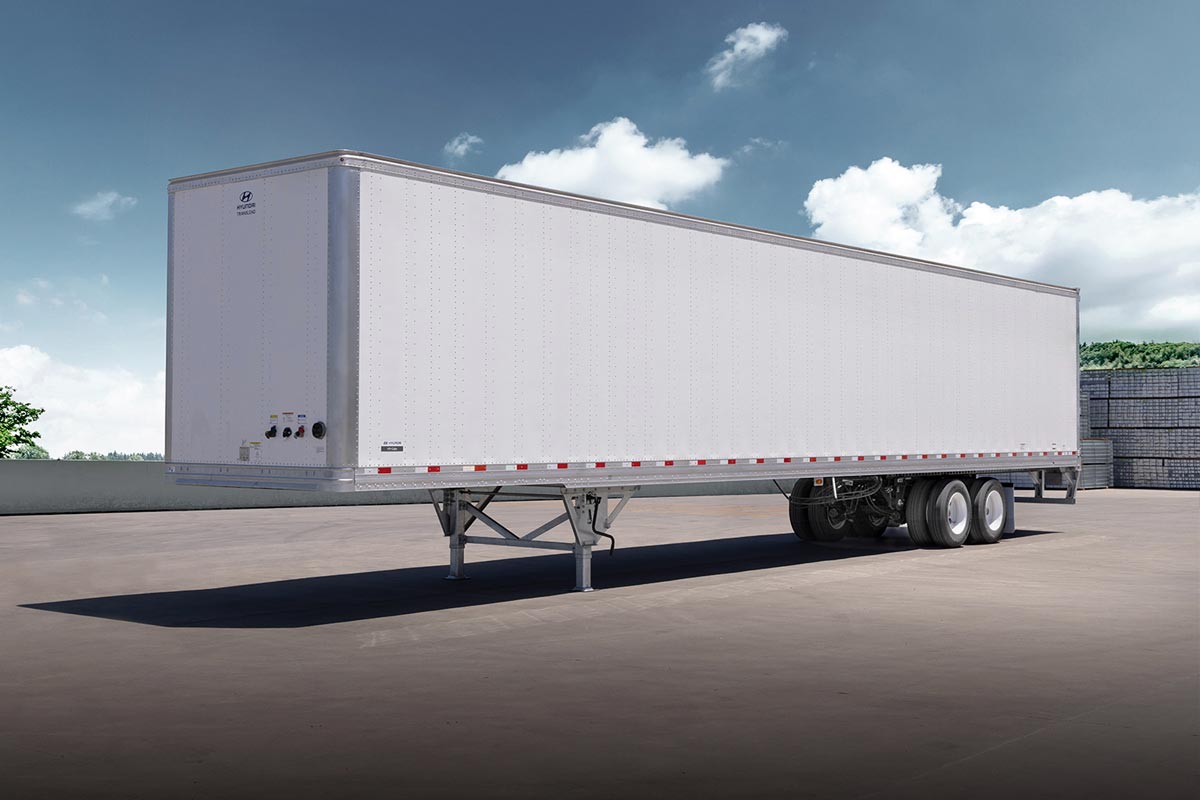

HY-Cube®
Offering greater interior width for increased load capacity and double decking capabilities, HY-Cube® is Hyundai Translead’s best-selling trailer. Snap-in plastic liners made of recycled materials are strong and easy to repair. Customize to suit your fleet.
Trailer Length
53′ 0″
Exterior Width
102.36″
Exterior Height
13′ 6″
Capacity/GVWR
68,000 lbs
Floor Rating
18,000 lbs
Tare Weight
13,855 lbs
HY-Cube Rotator
The Best From All Angles
See the Hyundai Translead HY-Cube come to life using our 360º Rotator feature.
Use the tabs to select different views of the trailer, and click on the icons to learn what makes Hyundai Trailers a step above the competition.

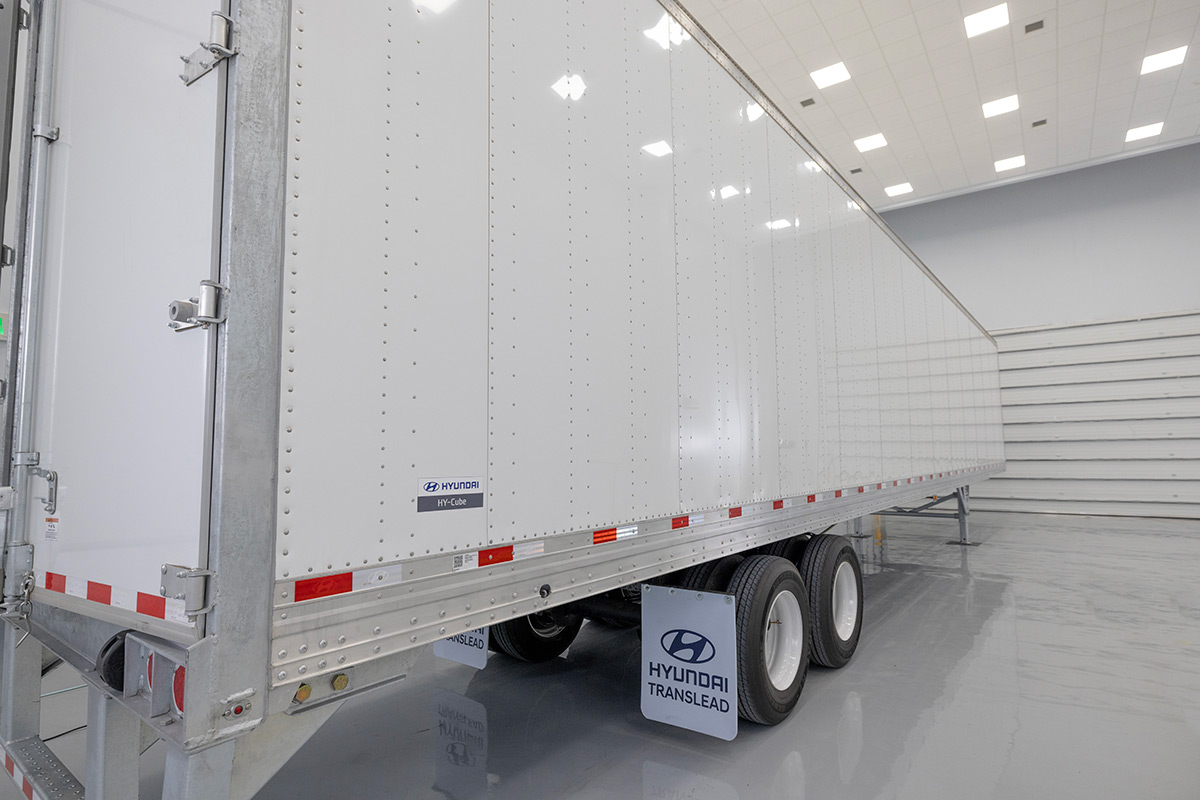

HY-Cube Gallery
Hyundai Translead takes pride in quality, innovation, and manufacturing excellence that you can see on first impression. The HY-Cube® dry van is easily customized and engineered for a long service life. Scroll through the gallery to see features and details that deliver the quality you require.
Select the tabs above to view each specification category.
Product Specifications
The HY-Cube dry van offers more interior space and larger load capacities. Offering trailers designed to fit your needs, Hyundai Translead is committed to customization and flexibility.
| Length | Exterior: 53′ 0″ | Interior: 52′ 6″ |
|---|---|---|
| Width | Exterior: 102.36″ | Interior: 101″ lining to lining |
| Height | Exterior: 13′ 6″ | Interior: 110″ |
| Capacity/GVWR | 4,050 cu. ft. of interior volume | 68,000 lbs |
| Standard Weight | 13,855 lbs | |
| AIAG Floor Rating | 18,000 lbs | |
Select the tabs above to view each specification category.
Body Construction
Built in our state-of-the-art-manufacturing-facility the HY-Cube Dry Van offers more space and uses HDPE panels that are quick and easy to repair.

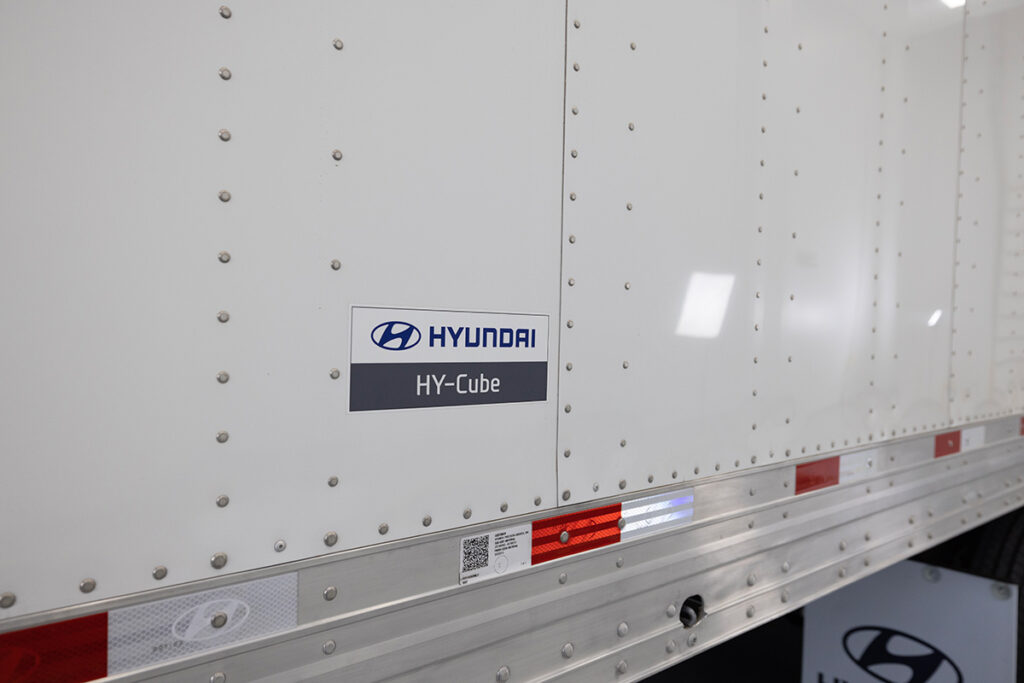

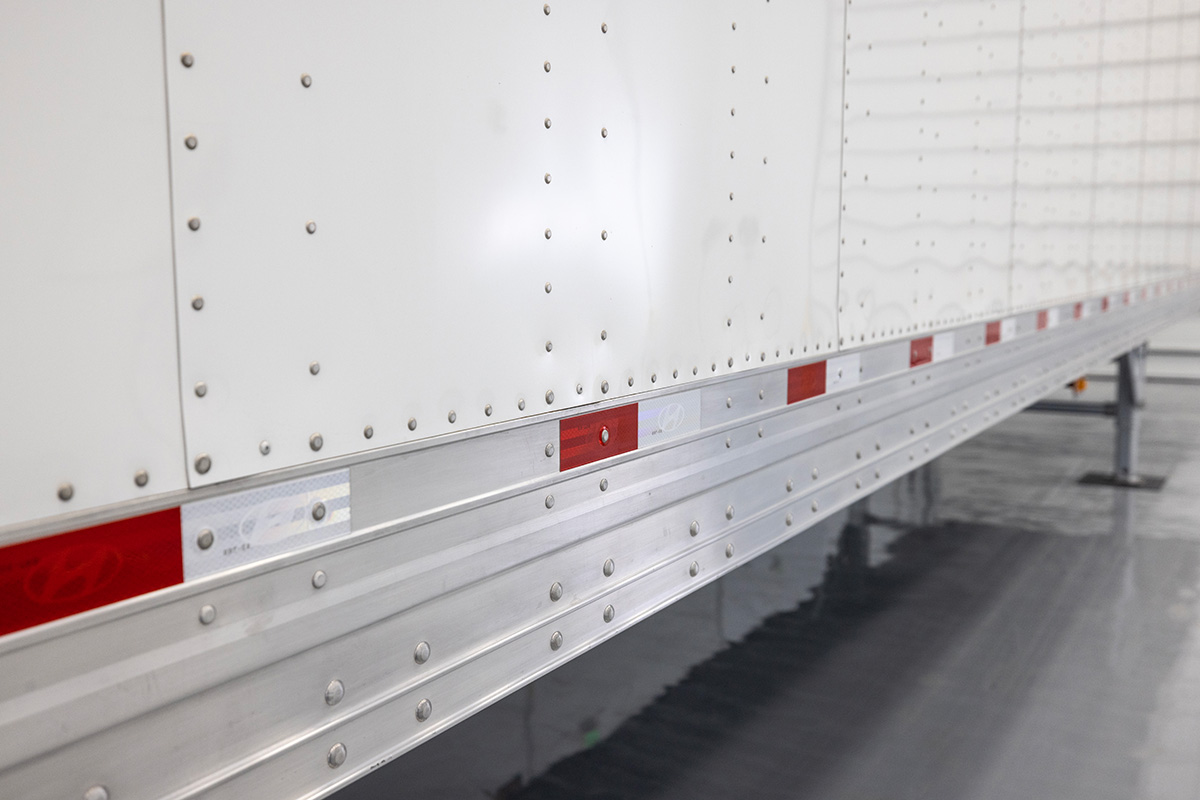

| Side Sheets | Side sheets 0.050″ thick pre-painted white aluminum. |
|---|---|

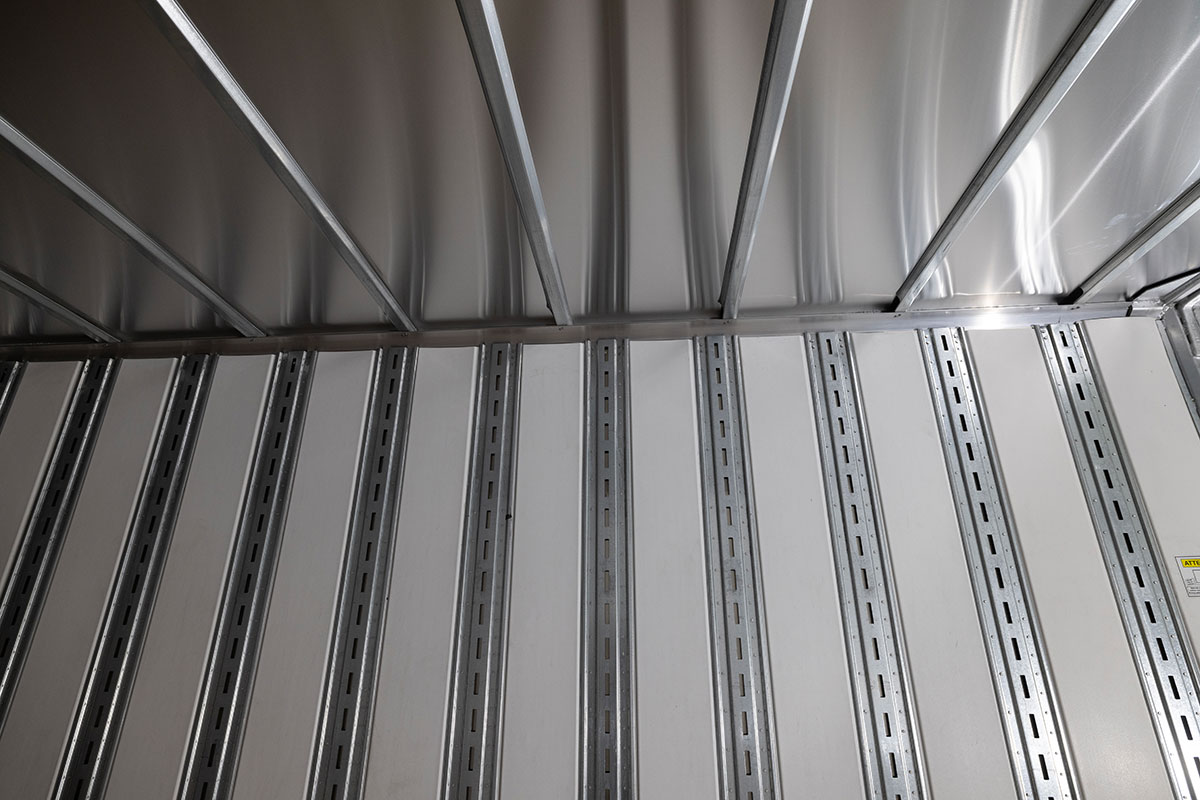

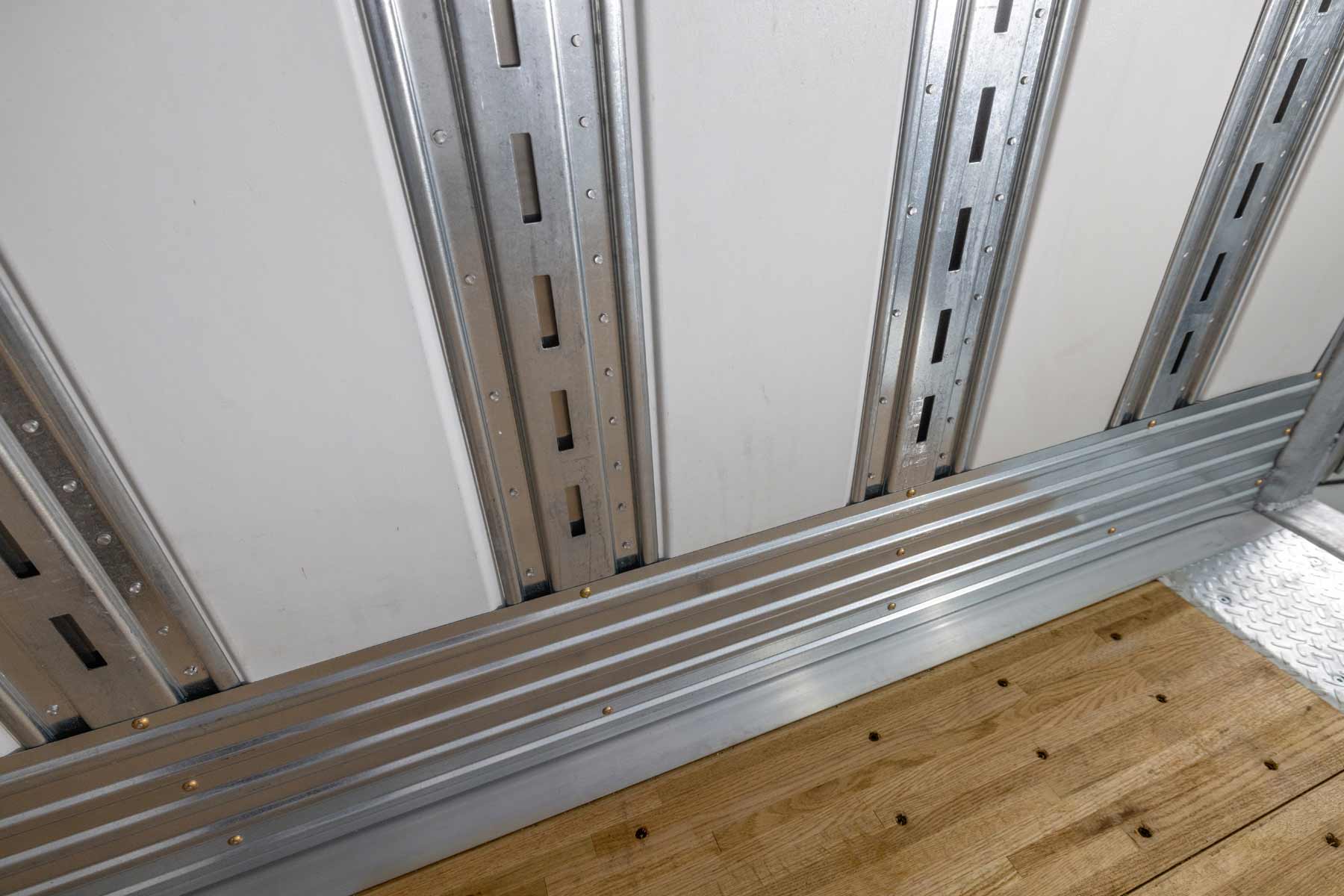

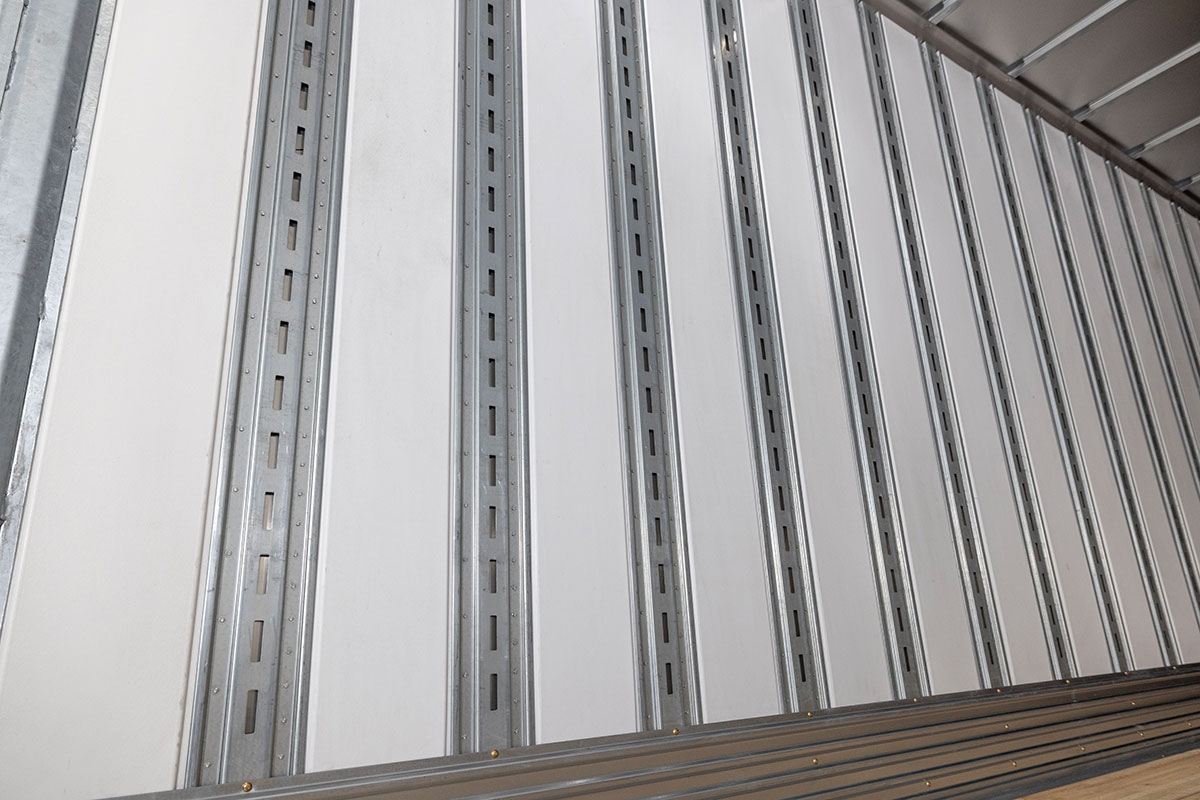

| Side Posts | Slotted “A” logistic galvanized steel posts on 16″ centers, 0.45″ deep x 6.57″ wide, with posts on 12″ centers over coupler and landing gear areas. |
| Roof | One piece, 0.040″ thick, full width aluminum sheet, tension leveled prior to installation. |

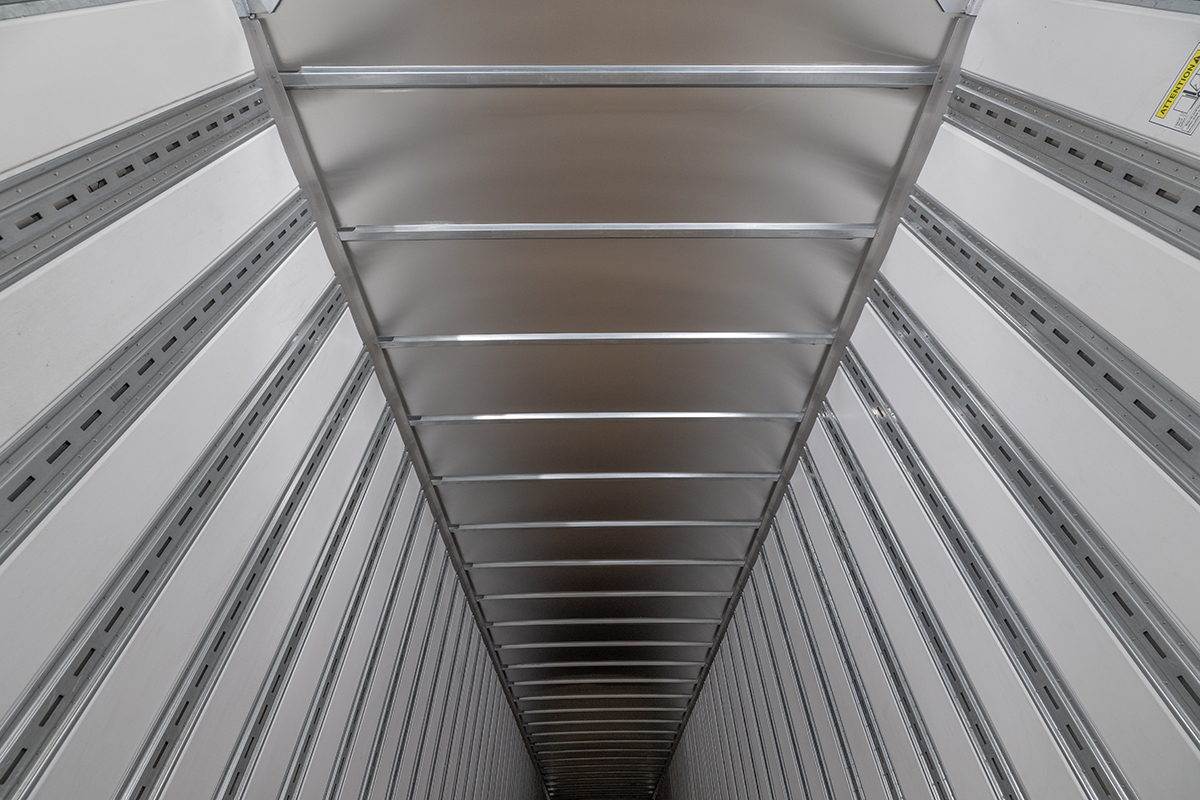

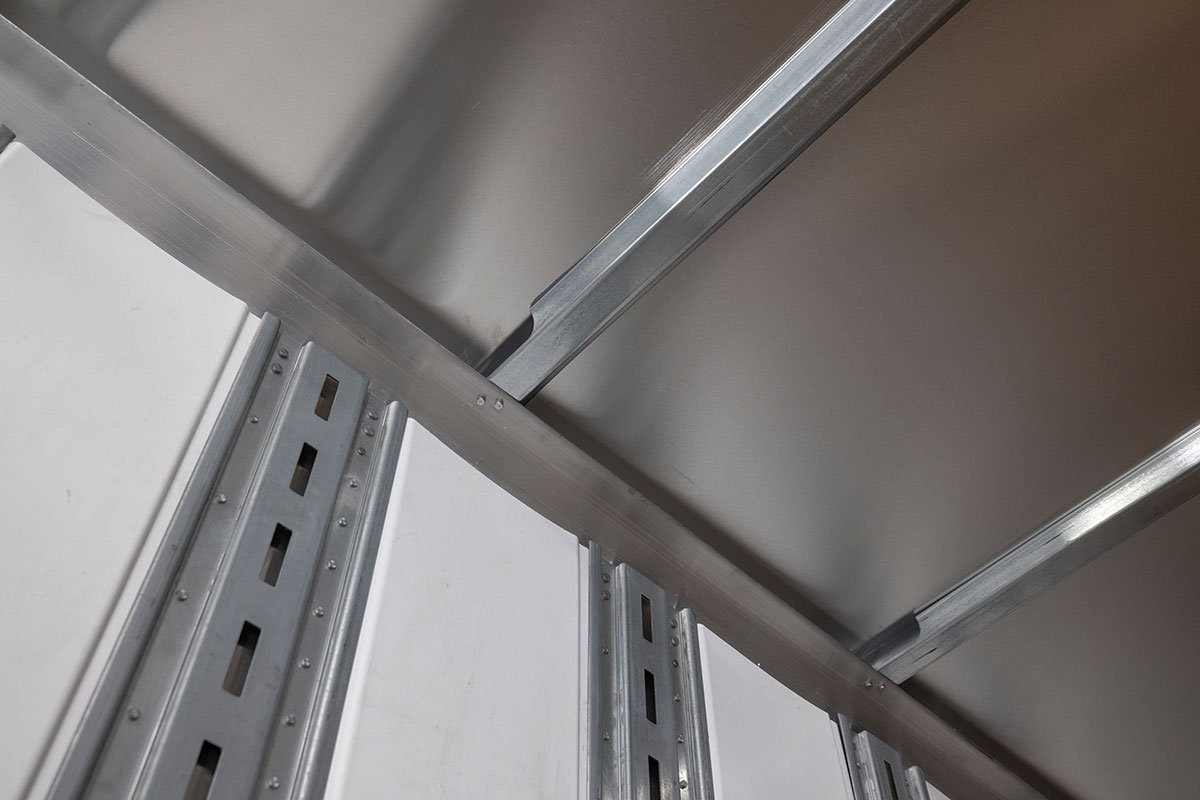

| Roof Bows | Galvanized steel anti-snag bows on 24″ centers. Pre-bonded to roof sheet. |
| Front Wall | Four high-tensile, hat shaped, posts covered with 0.05″ aluminum front sheets. |
| Rear Frame | 0.19″ thick Hot-dipped galvanized steel construction with low profile header, tube shaped posts. Forged steel angle iron in top corners for added rack resistance. Lights recessed in rear sill with heavy-duty protection bars. |
| Rear Doors | Composite swing door, 0.5″ composite panel. Dual durometer seals bonded to door. Four hinges and one anti-rack locking bar with nylon bushings per door. Lock handles fitted with rubber grips for operator comfort and security. |

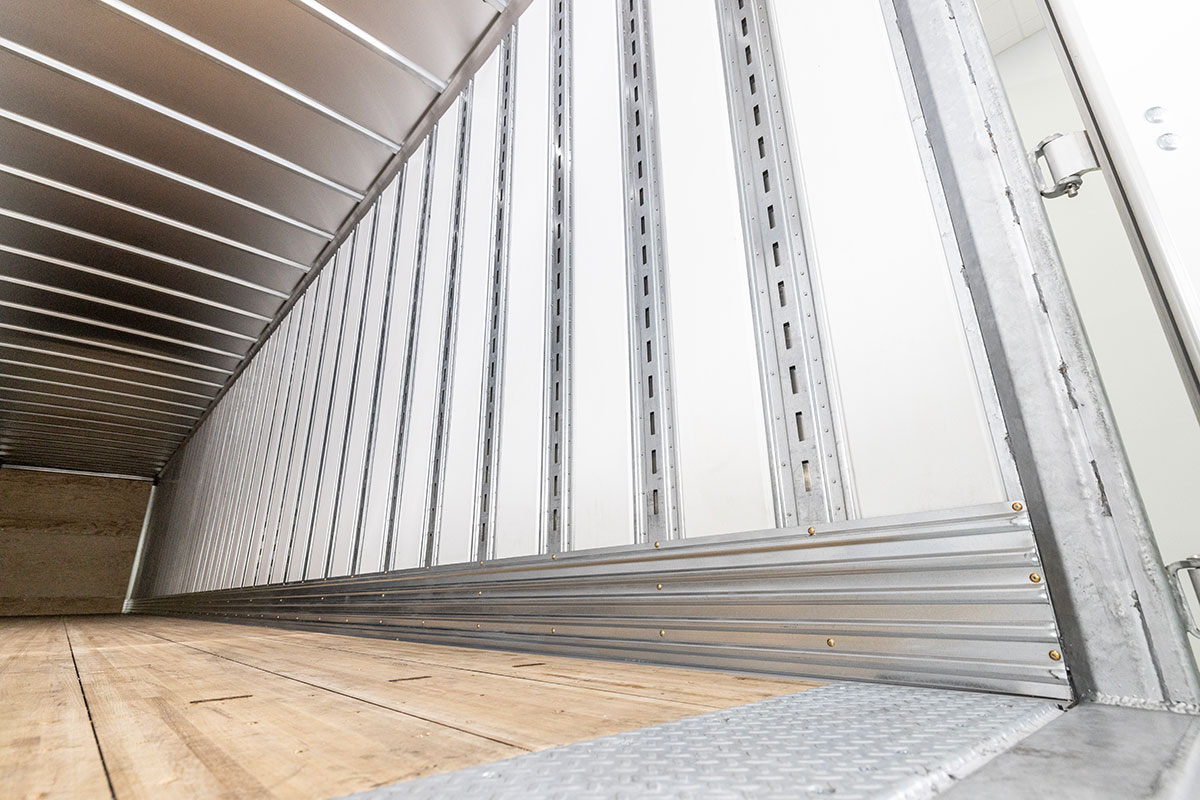

| Interior Lining | White 0.24″ thick HDPE lining installed fully height between uprights with no fasteners. Side lining hooks into place for easy replacement. Exterior grade 0.5″ plywood installed on bottom and 0.25″ plywood installed on top over front wall post. |
Select the tabs above to view each specification category.
Advanced Options
Browse our advanced options for enhancing your product.
Ultimate Corrosion Package
Offering additional protection to almost every steel components that are not part of the standard hot dipped galvanized package.

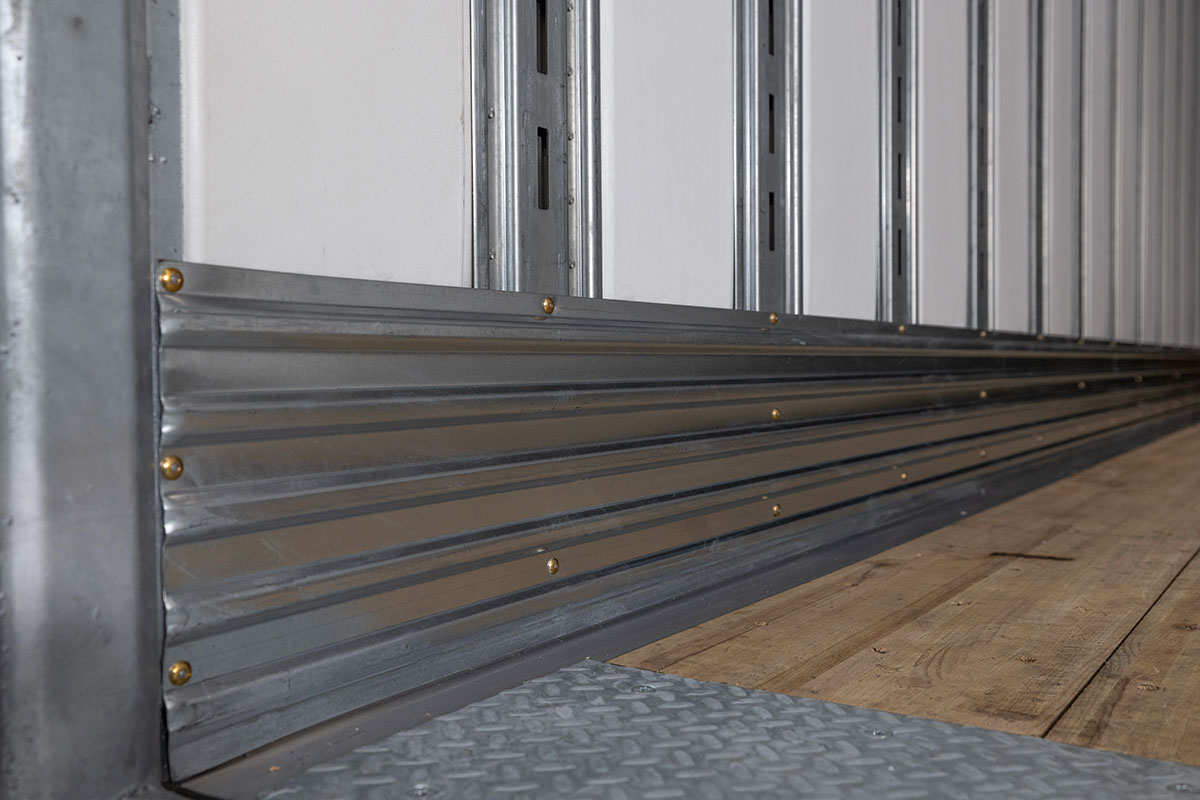

Scuff Options
Additional scuff options available in wood, plastic or steel to fit your operations.
Aerodynamic Side Skirt Kit
Hyundai Translead offers the HT EcoFairing aerodynamic side skirt which meets US EPA SmartWay and California Air Resource Board requirements.
Liftgate Factory Install
Lift gates can be factory installed so that your trailer is ready for use when you need it.
Roll Up Doors
Roll Up Doors available from various manufacturers.
Tire Inflation Systems
To assist in achieving greater fuel savings, tire inflation systems can be installed at the factory.
Dome Lamps
For increased interior visibility dome lamps are available from various manufacturers.
Wide Base Tires
Wide based tires from various manufacturers are available to meet both EPA SmartWay and California Air Resources Board requirements.
Rear Frame Options
Hyundai Translead can configure the rear of your trailer to meet your specific operational needs. From Pintle hook and side steps to additional tail lights we can build what you need.
Tri-Axle Configuration
Tri-Axle configurations available for those operations running heavy freight loads.
Air Disc Brake
Stable braking with virtually no fading, excellent downhill performance. Increased driver comfort – braking feels more like that of a passenger car.
Additional Channel
Additional channel with “A” slot holes are available for more flexible cargo securement options.
Roller Floor & Lashing Points
Roller floor and lashing point to help with loading, unloading, and for flexible load security.

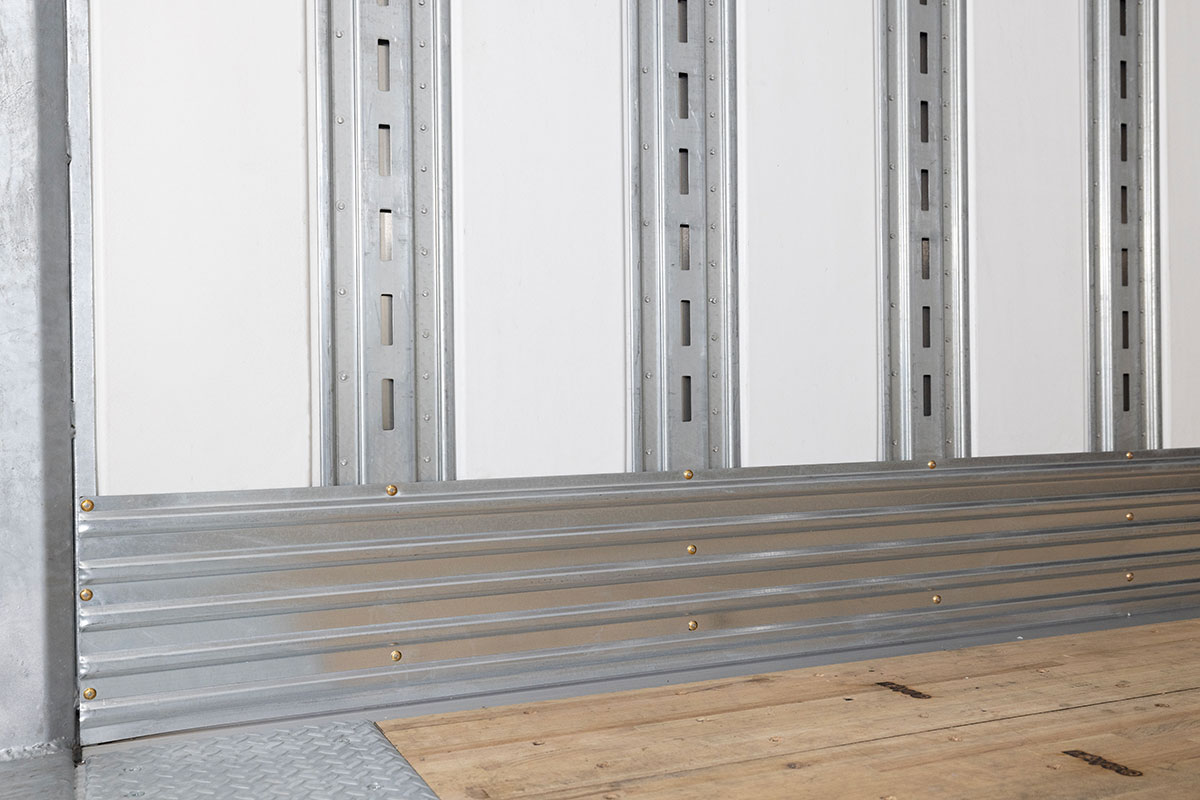

Diverse Corner Protectors & Rub Rails
Corner radius protectors and side rub rail productions to provide extra protection against operation damage.
Difference Makers
Innovations that elevate the HY-Cube® Dry Van
Explore why and how Hyundai Translead trailers are more durable and versatile to meet your needs.
Manufacturing & Materials
State-of-the-art manufacturing and ongoing investment in engineering and materials delivers stronger and lighter dry vans that improve efficiency and reduce costs.
Increased Freight Capacity
HY-Cube’s wider interior and larger volume allows increased payload, increasing revenue and reducing relative fuel costs and emissions.
Durability
Structure and surfaces are hardened and protected against harsh elements and damage, including docks and interior wear and tear from loading, unloading, and hauling freight.
Longevity
Hyundai Translead builds dry van trailers for longer service life, reducing total cost of ownership with longevity-focused features and a protective warranty.
Hot-Dipped Galvanization
Hyundai Translead is the only manufacturer in the industry to offer an Anti-Corrosion Package, with hot-dipped galvanization as a standard feature.
Increased Load Capacity
Offers a greater interior width for increased load capacity plus double decking capabilities. Up to 4,050 cubic feet of interior volume.

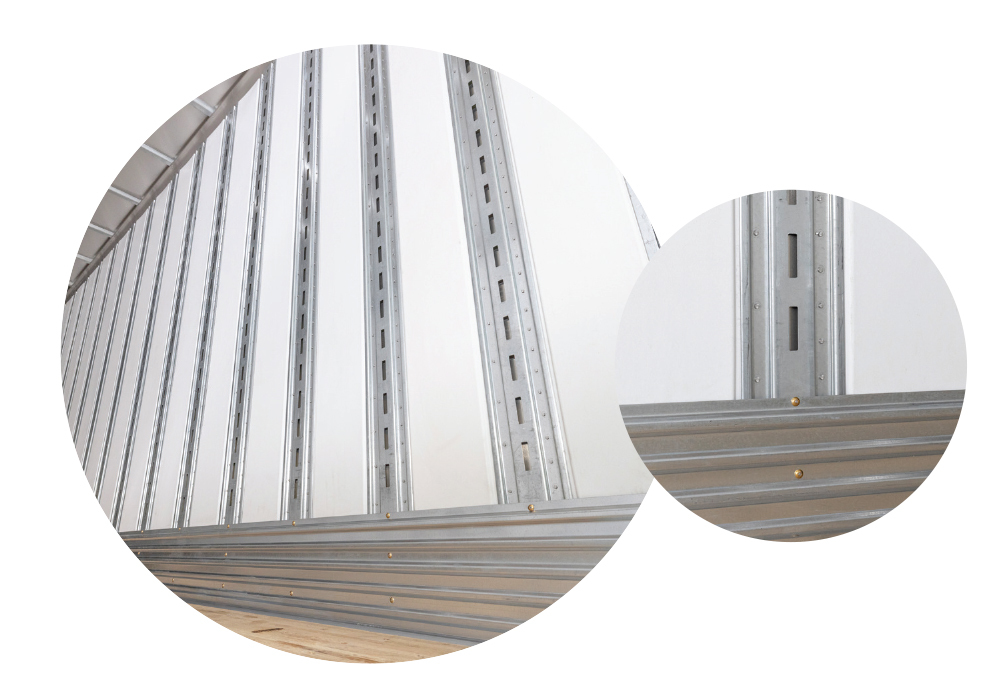

Snap-in Plastic Liners
Snap-in plastic liners made of recycled materials are strong and easy to repair.
