Latitude

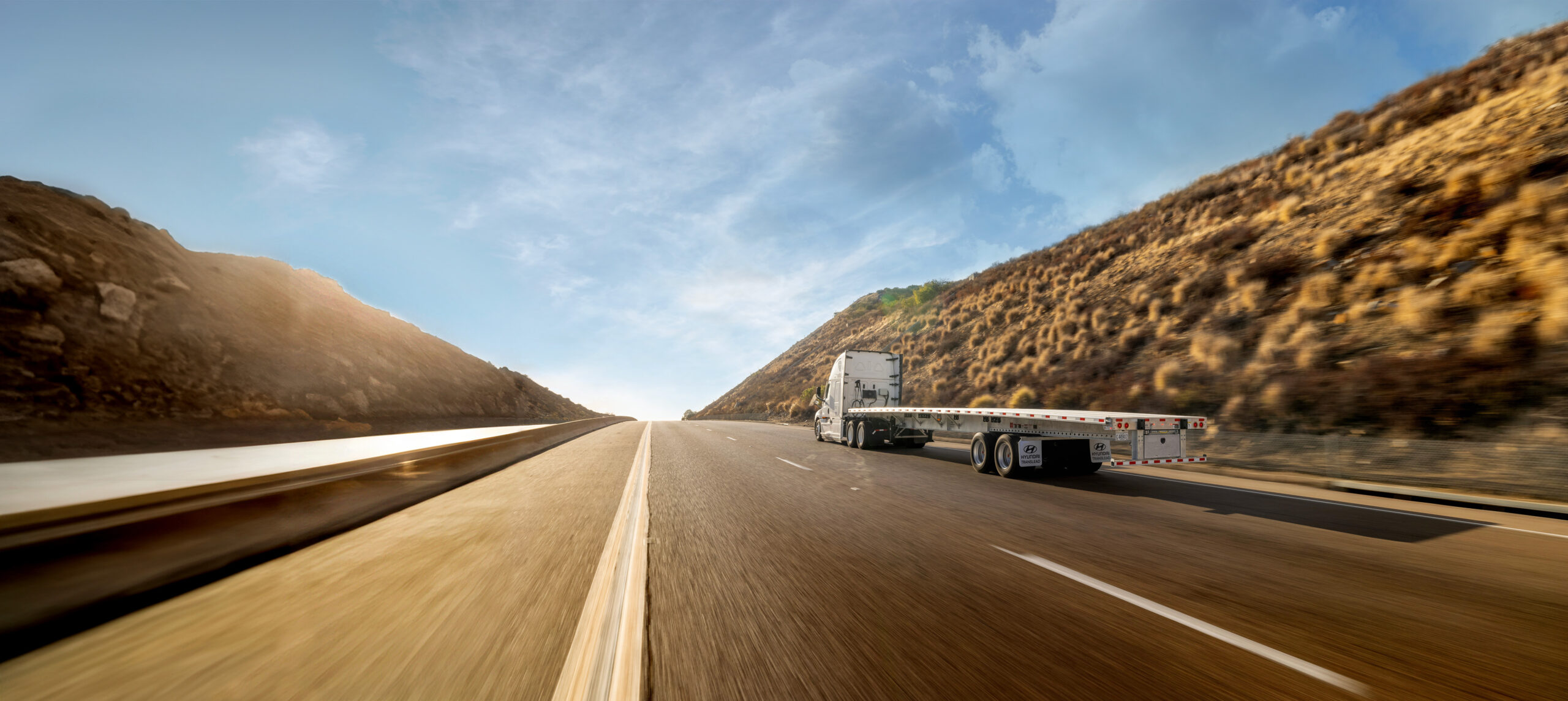

Designed with driver ease of use in mind, the strong and light Latitude flatbed offers effortless operation and ownership, making it ideal for modern transport.
Latitude Photo Gallery
The Latitude Flatbed sets a new standard in performance and efficiency. Combining lightweight construction with advanced ergonomic features, Latitude is designed to approach modern transportation needs with ease.
Select the tabs above to view each specification category.
Product Specifications
The Latitude Flatbed sets a new standard in performance and efficiency.
| Length | 32′ 0″ – 53′ 0″ | |
|---|---|---|
| Width | 102″ | |
| Fifth Wheel Height | 47″ (Nominal) | Rear Deck Height: 54-5/16″ (Maximum) |
| Concentrated Load Rating | 60,000 lbs in 10′ | 55,000 lbs in 4′ |
Select the tabs above to view each specification category.
Body Construction
Built in our state-of-the-art-manufacturing-facility, the Latitude Flatbed is built to be strong, versatile, and customized to your needs.

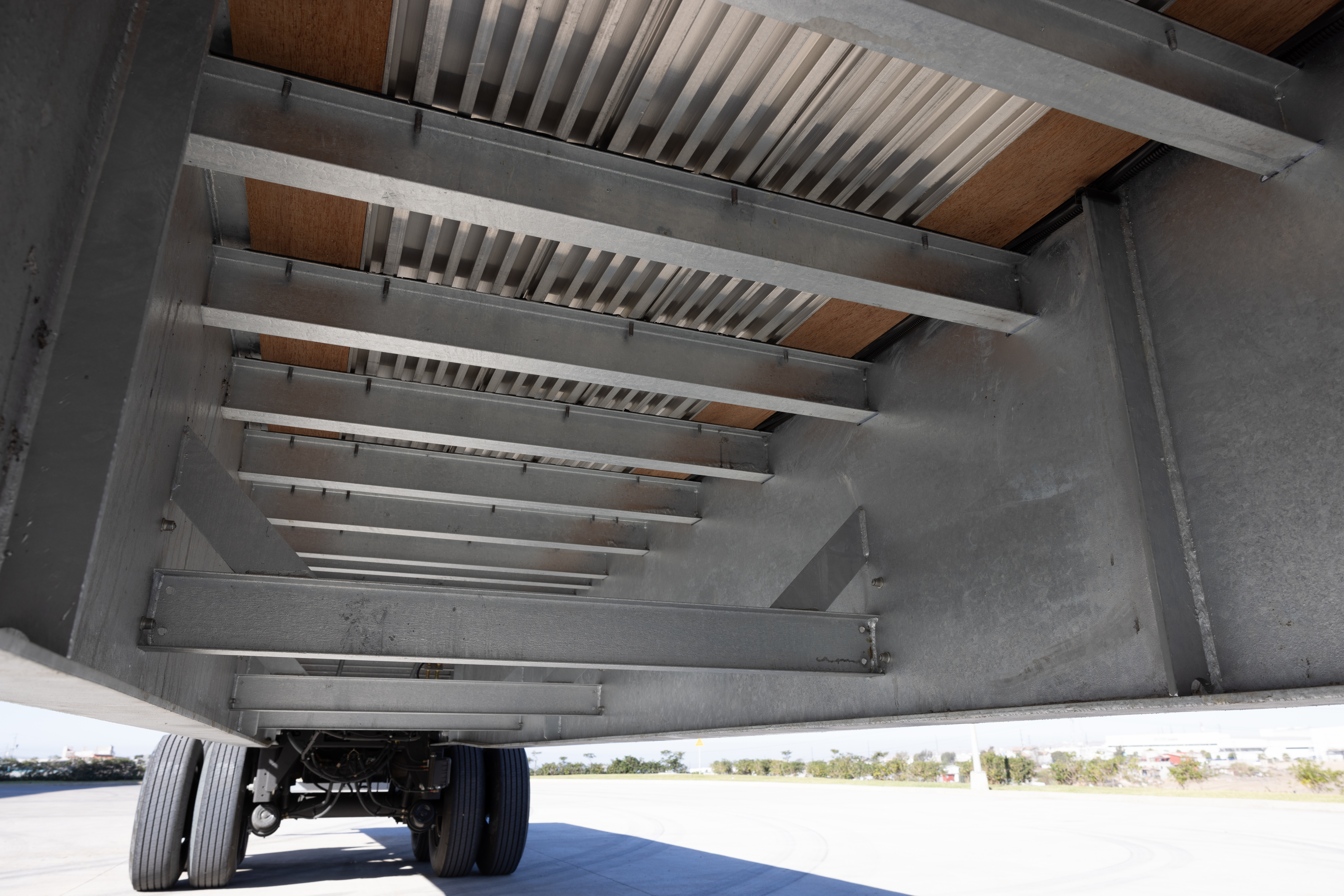

| Frame | Fully hot-dipped galvanized frame. Main beam is high-tensile steel with a web thickness of 0.19″ and 0.38″ flange. |
|---|---|
| Front Plate | Aluminum extruded, 5.8″ high. |
| Rear Plate | Aluminum extruded, 9″ high. |
| Fifth Wheel Plate | Nominal thickness of 0.25″, 80 KSI minimum. |
| Kingpin | 24″ – 36″ locations |
| Flooring | Aluminum extruded floor with four nailers, standard (full Apitong Floor available). |
| Suspension | Hendrickson AANT-23K, standard. |
| Axle Spindle | “P” style, standard |

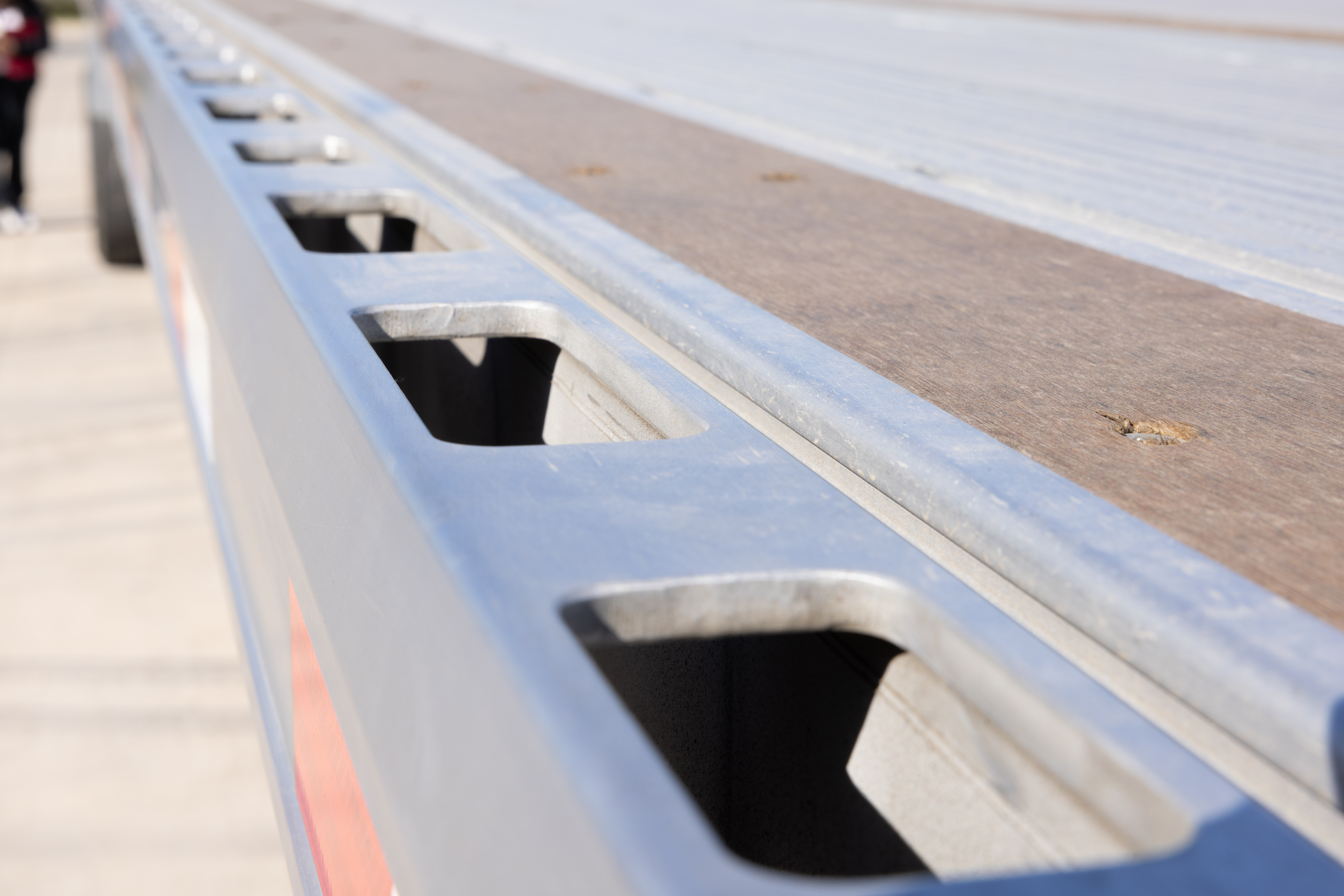

| Side Rails | Integrated Aluminum High Impact Side Rail |
| Exterior Finish | Hot-dipped galvanized, standard |
Select the tabs above to view each specification category.
Advanced Options
Browse our advanced options for enhancing your product.

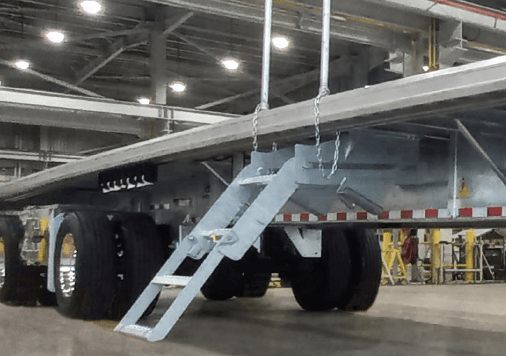

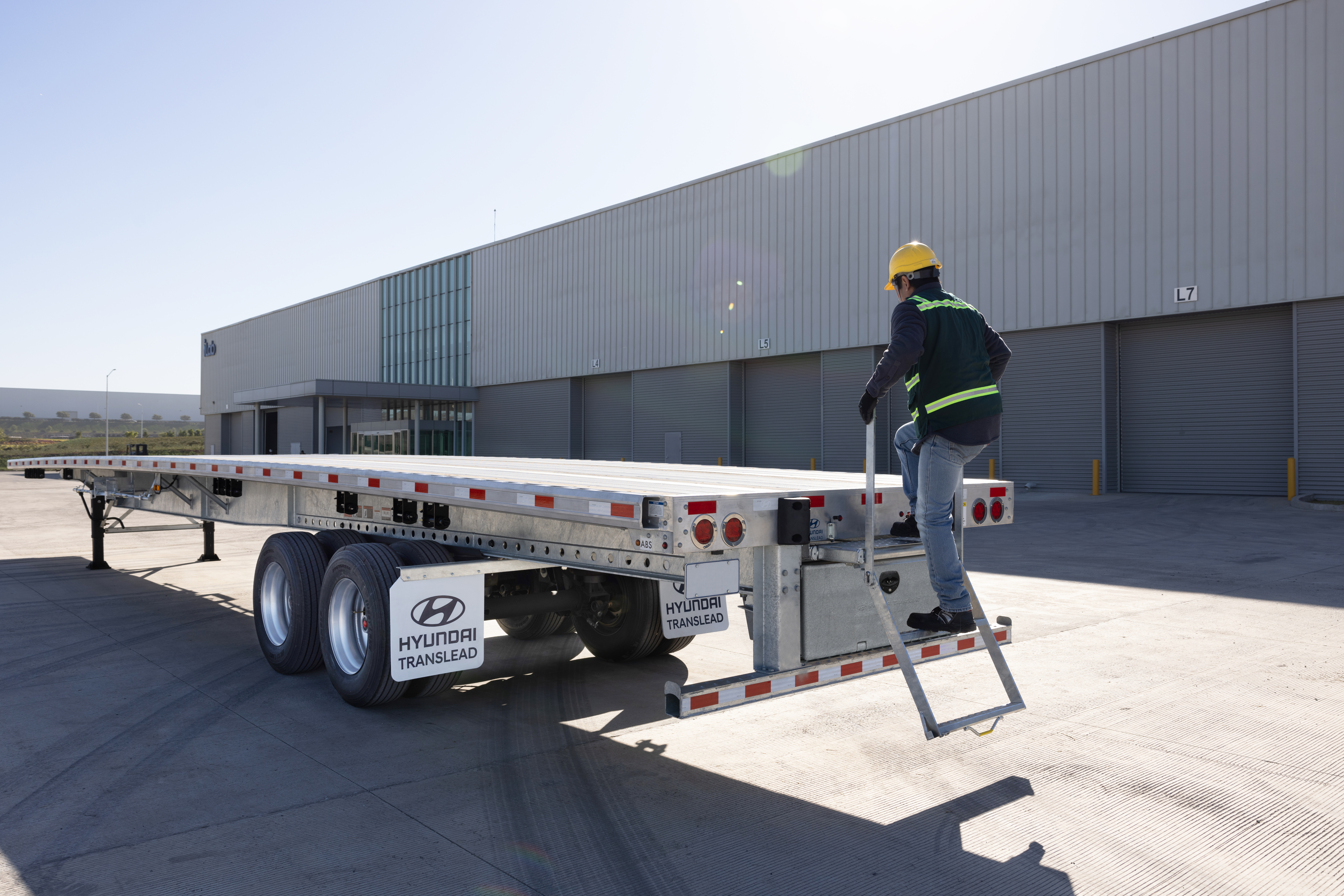

Side Ladder
Easy access to the deck with a built-in ladder for convenience.

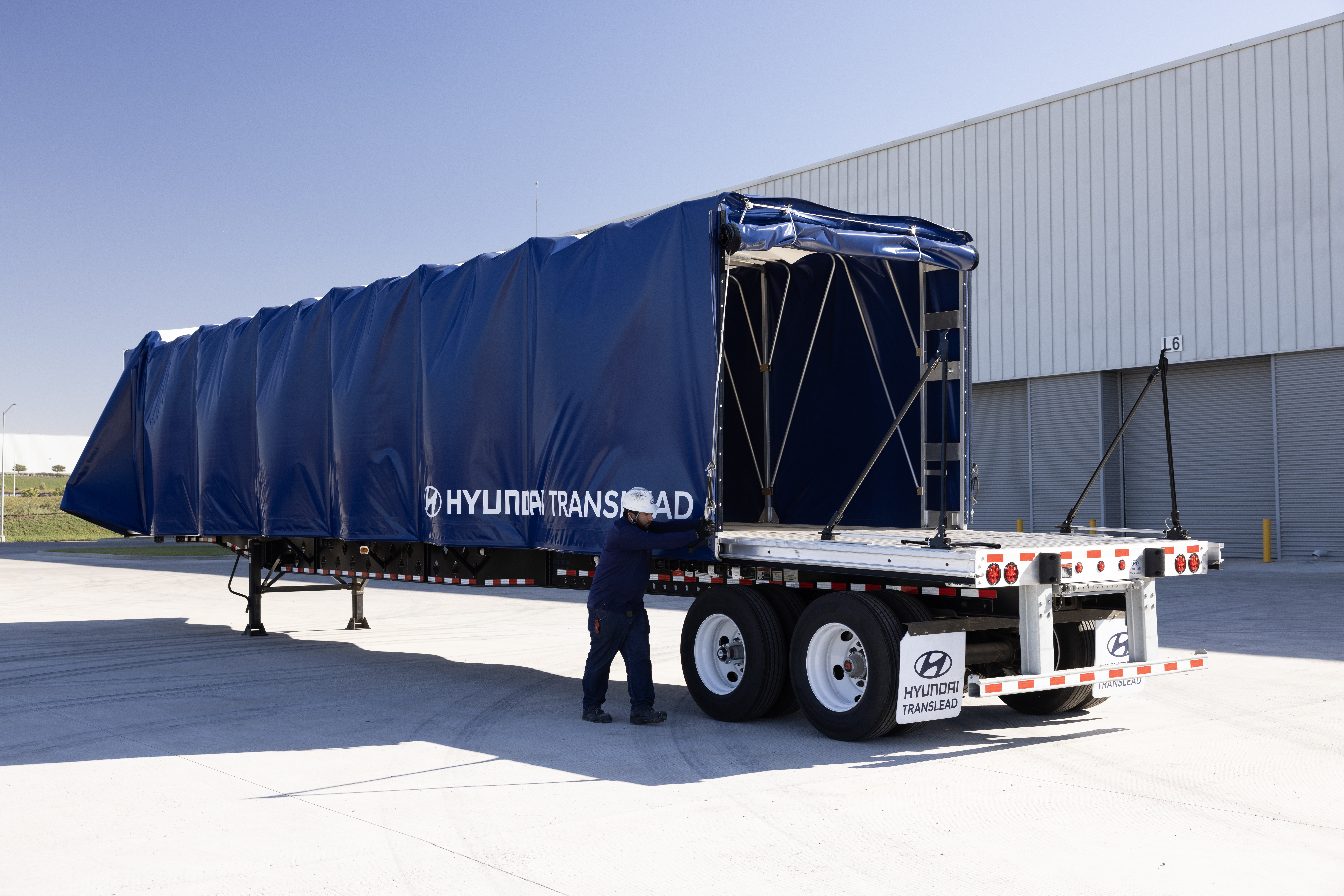

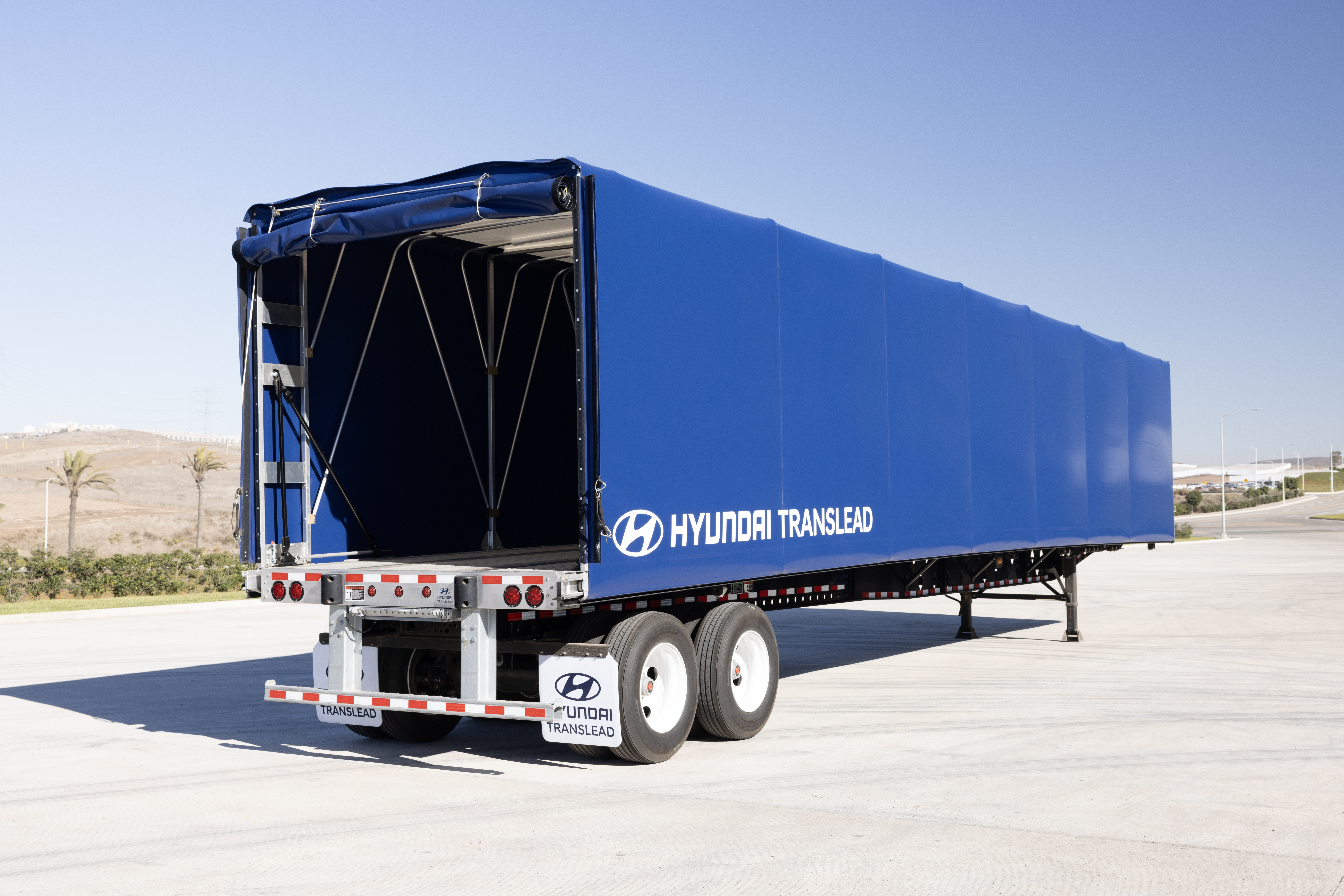

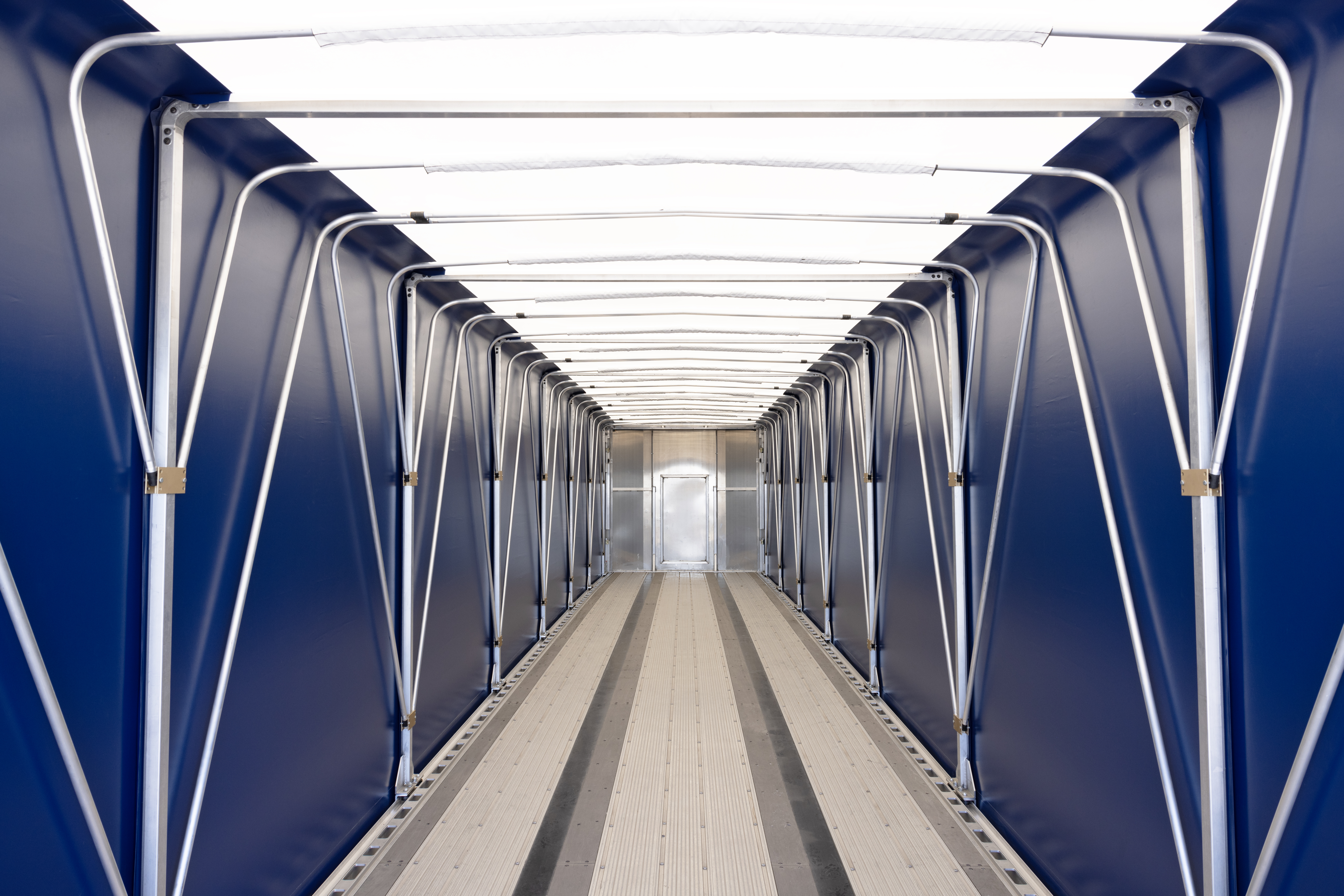

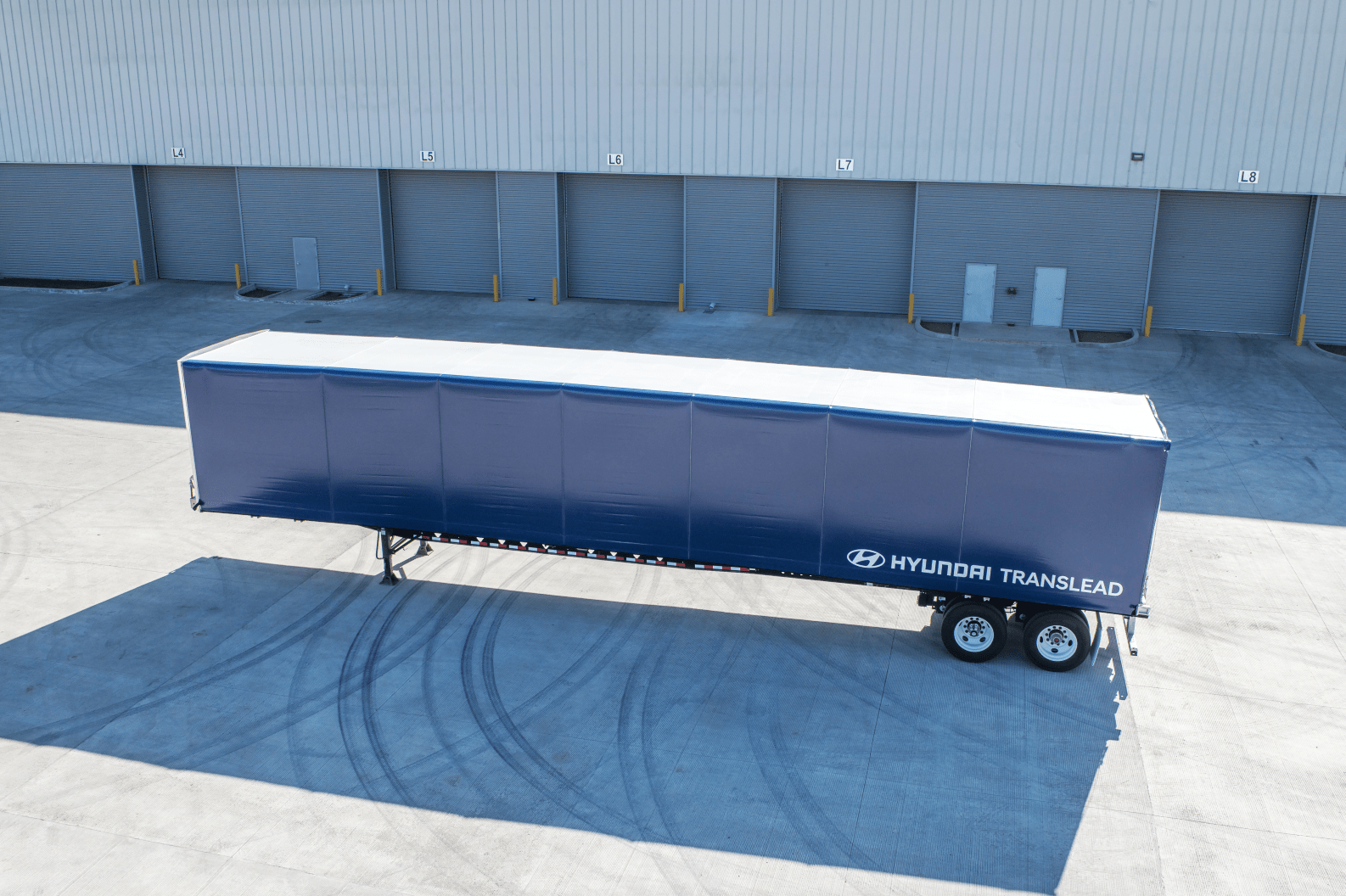

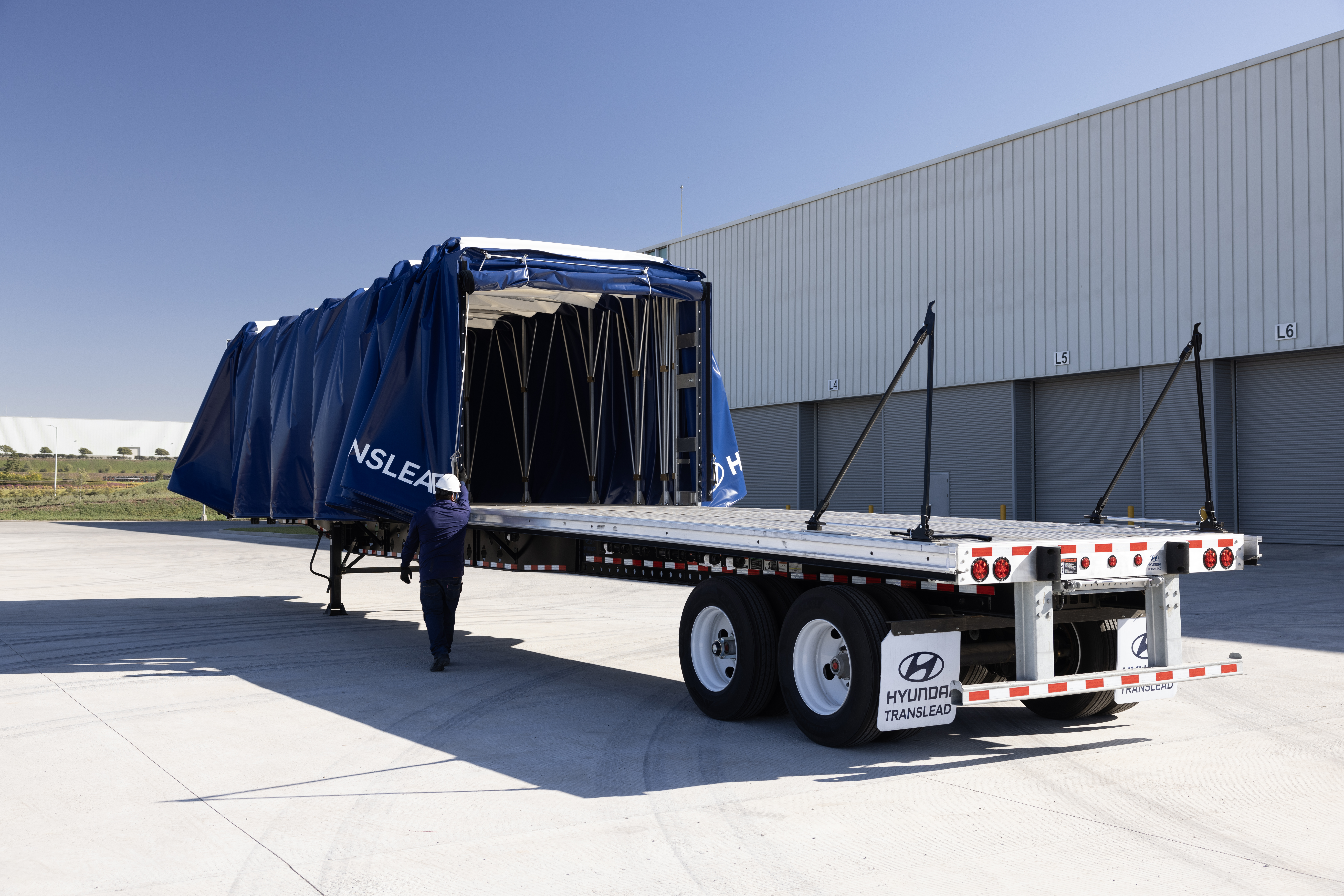

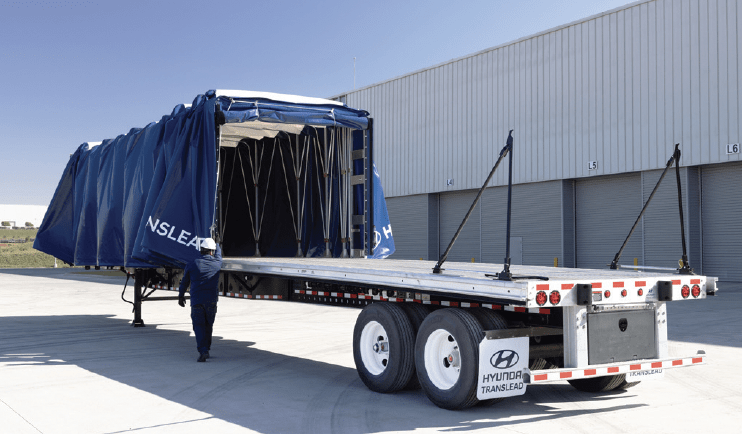

Rolling Tarp System
Provides a seamless solution for cargo protection, combining durability, ease of use, and enhanced operational efficiency.

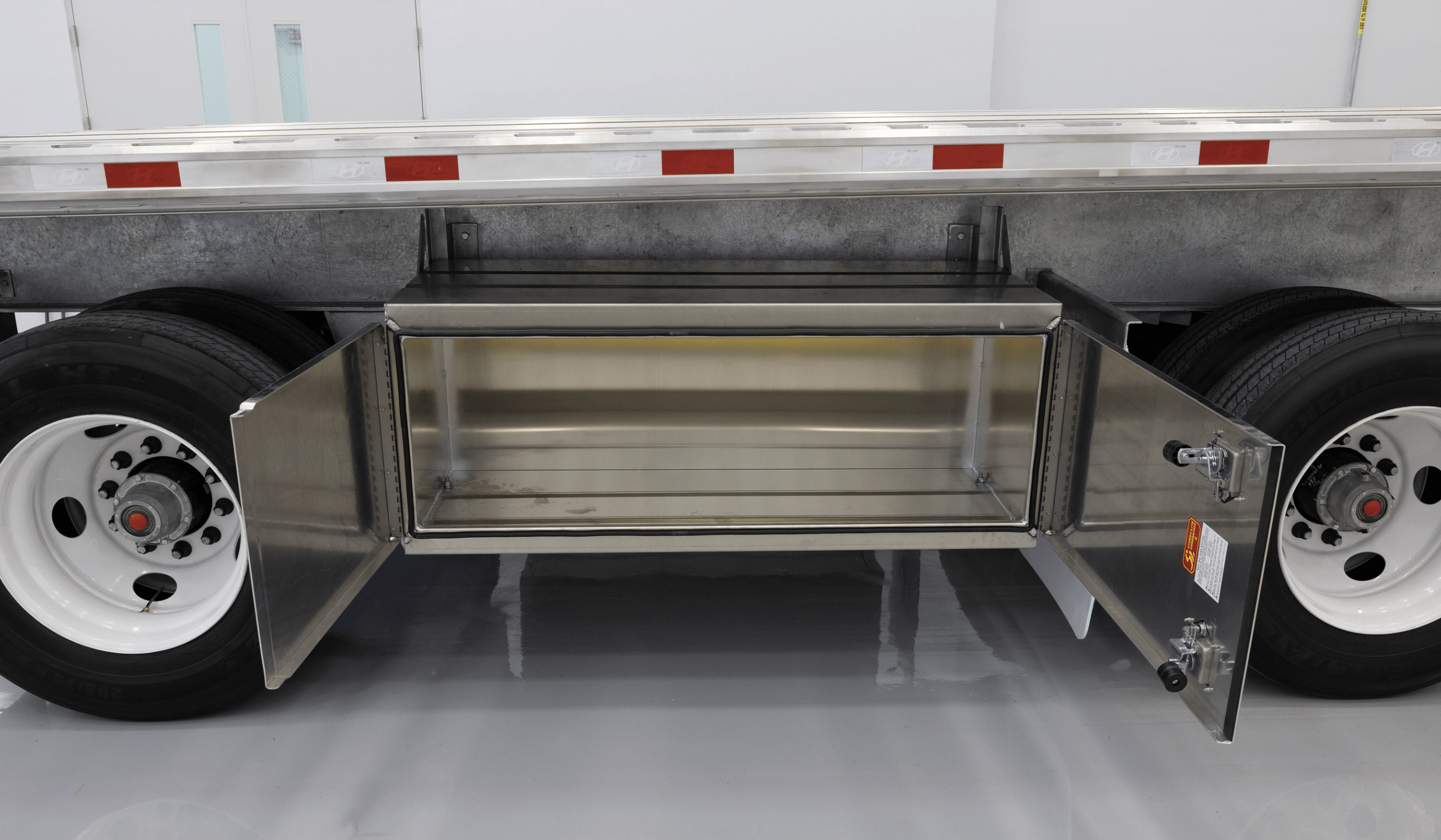

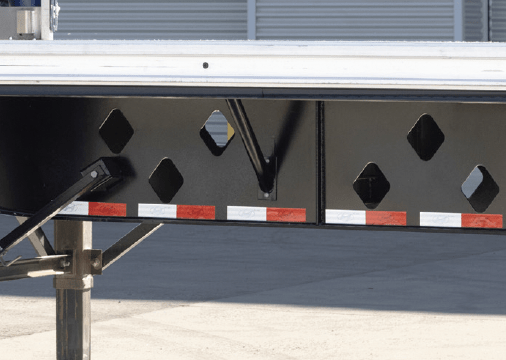

Side Storage Box
Provides an additional secure and convenient storage for driver’s tools and equipment.
Forklift Package
Offers a removable tire rest and an adjustable wheel stop to accommodate various forklift models.

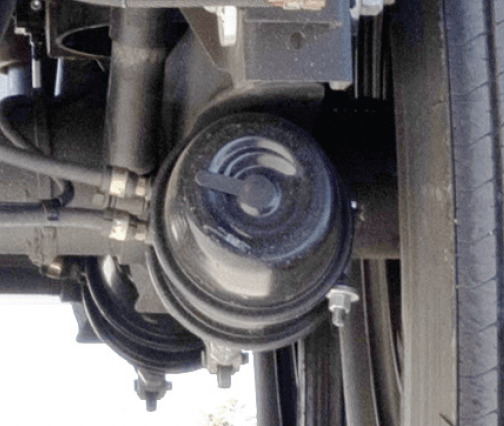

Piston-Type Chambers
High-efficiency piston chambers for reliable and consistent braking performance.
Custom Paint Option
Custom, long-lasting and high-quality paint options available.

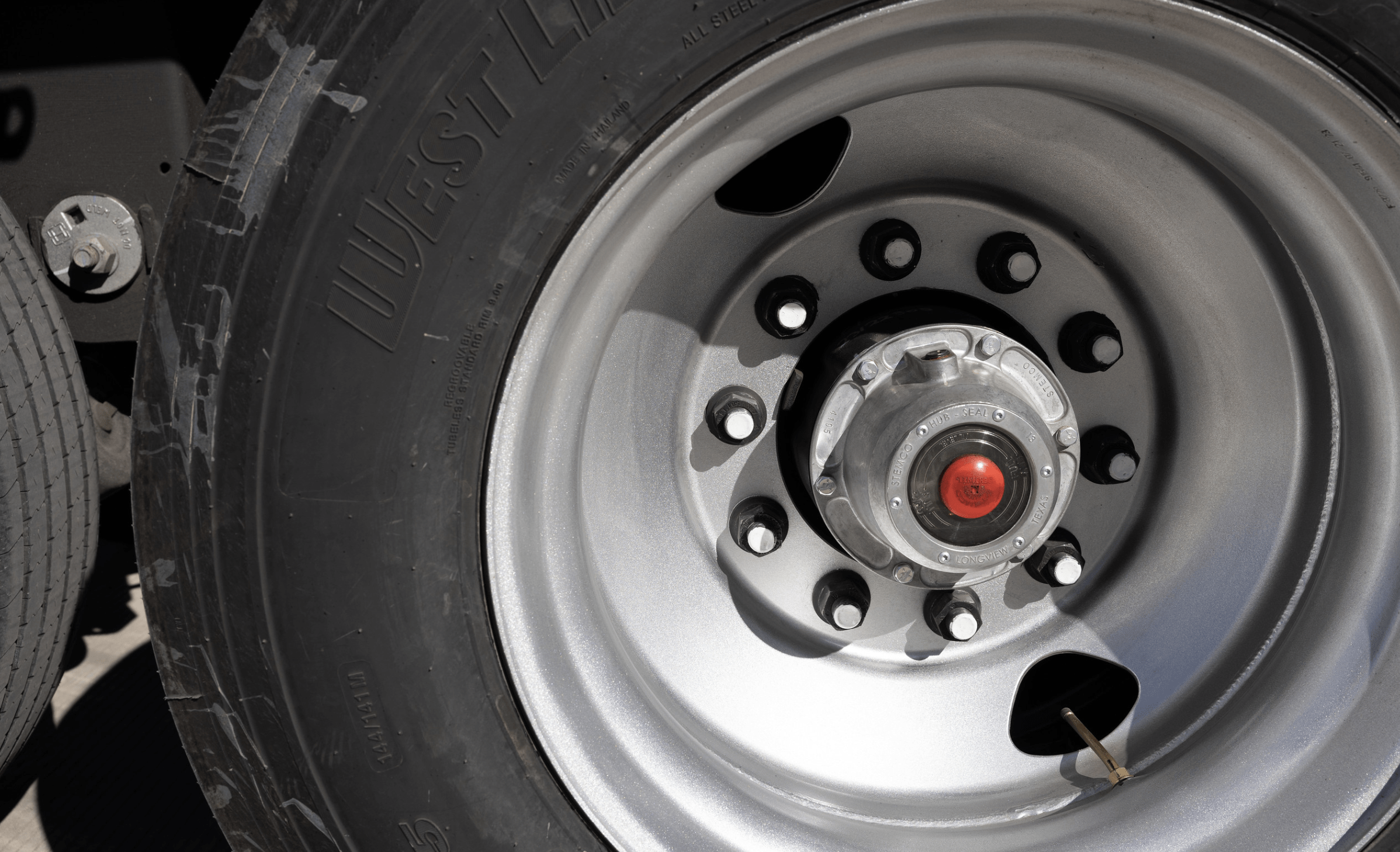

Hot-Dipped Galvanized Wheels
Corrosion-resistant wheels built for enhanced durability.
Setting A New Standard for Flatbed
Explore why and how Hyundai Translead trailers are more durable and made to meet your needs.
Durability and Quality
Constructed with high-strength steel and aluminum, ensuring exceptional durability and quality to withstand the harshest conditions.
Repairability
This unique design offers quick replacement of components for repairs without compromising the structural integrity.
Ease of Use
Designed with drivers in mind, ergonomic enhancements improve efficiency and provide easier access to cargo.
Customization
Available with various customized options that can be tailored to fit your needs including the rolling tarp, forklift package, side ladder, and side storage box.
