Latitude Flatbed Rotator
Lo mejor desde todos los ángulos

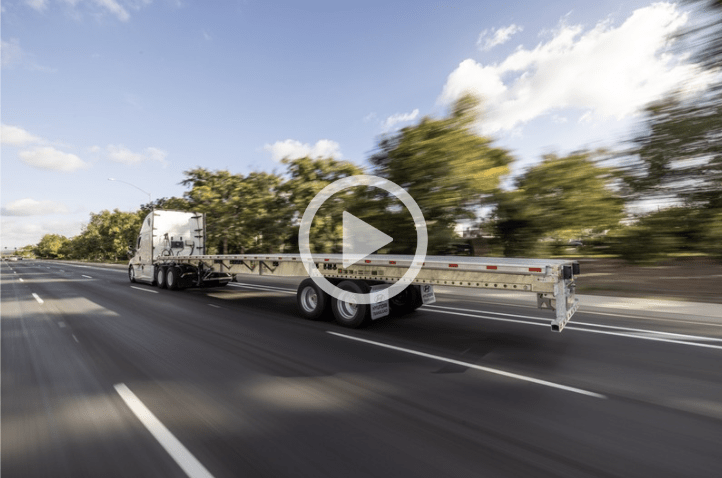

See the Latitude Flatbed come to life using our 360º Rotator feature.
Click on the icons to learn what makes Hyundai flatbeds a step above the competition.
Latitude
Designed with driver ease of use in mind, the strong and light Latitude flatbed offers effortless operation and ownership, making it ideal for modern transport.
Latitude Photo Gallery
The Latitude Flatbed sets a new standard in performance and efficiency. Combining lightweight construction with advanced ergonomic features, Latitude is designed to approach modern transportation needs with ease.
Seleccione las pestañas de arriba para ver cada categoría de especificación.
Especificaciones del producto
The Latitude Flatbed sets a new standard in performance and efficiency.
| Longitud | 32′ 0″ – 53′ 0″ | |
|---|---|---|
| Anchura | 102″ | |
| Altura de la quinta rueda | 47″ (Nominal) | Altura de la cubierta trasera 54-5/16″ (Maximum) |
| Concentrated Load Rating | 60,000 lbs in 10′ | 55,000 lbs in 4′ |
Seleccione las pestañas de arriba para ver cada categoría de especificación.
Construcción de la carrocería
Built in our state-of-the-art-manufacturing-facility, the Latitude Flatbed is built to be strong, versatile, and customized to your needs.

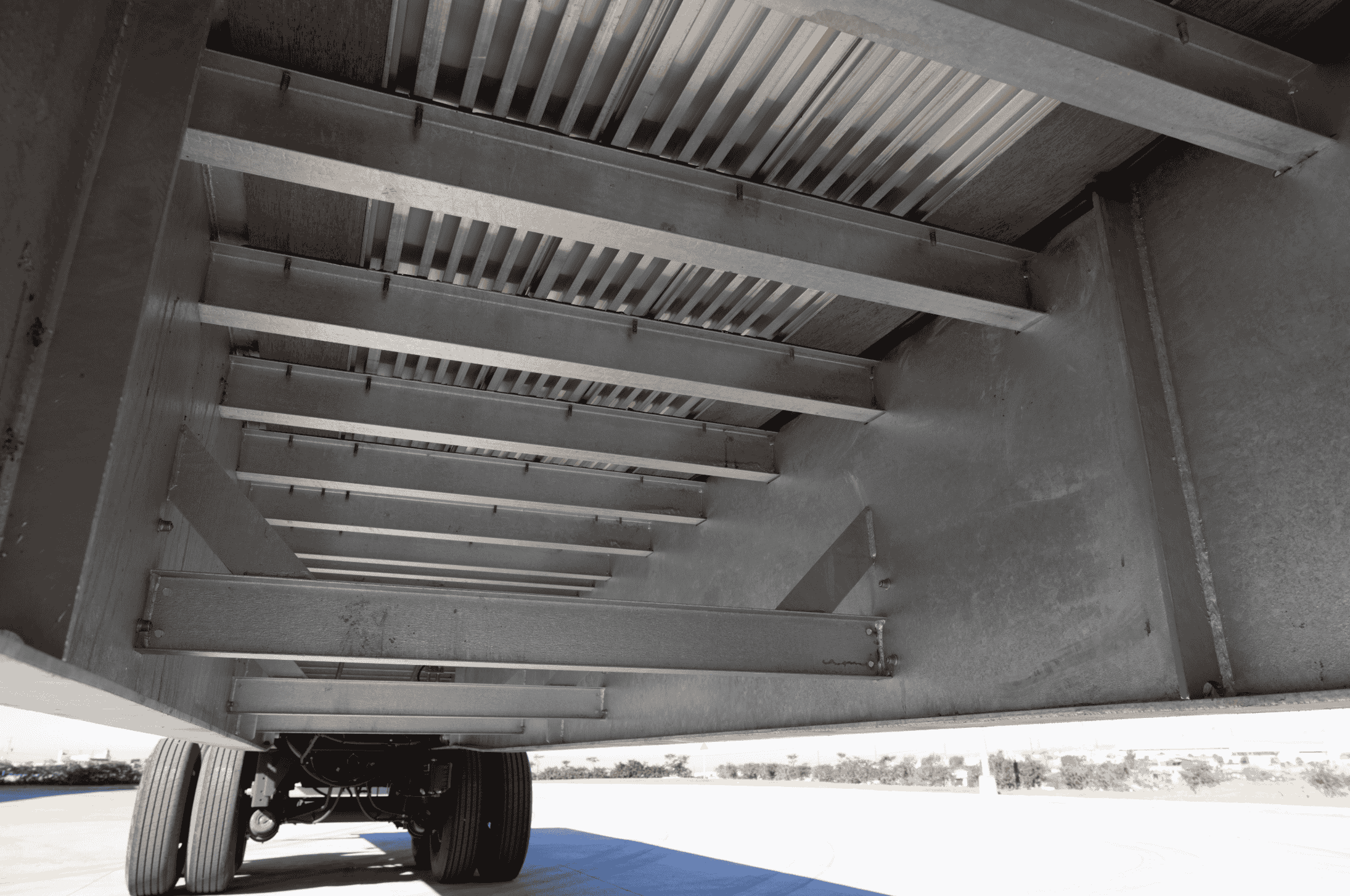

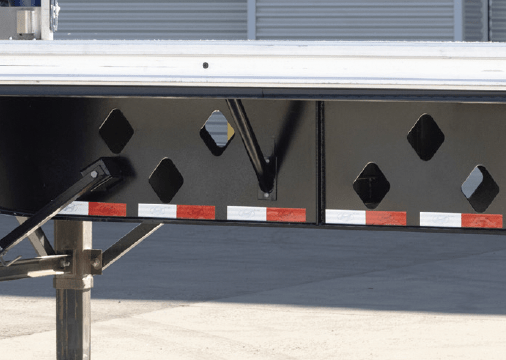

| Marco | Bastidor totalmente galvanizado en caliente. La viga principal es de acero de alta resistencia con un espesor de alma de 0,19″ y brida de 0,38″. |
|---|---|
| Placa frontal | Aluminio extruido, 5,8″ de altura. |
| Placa trasera | Aluminio extruido, 9″ de altura. |
| Placa de quinta rueda | Espesor nominal de 0,25″, 80 KSI mínimo. |
| Kingpin (Perno Rey) | Lugares de 24″ - 36" |
| Suelos | Suelo de aluminio extruido con cuatro clavadores, de serie (disponible suelo Apitong completo). |
| Suspensión | Hendrickson AANT-23K, estándar. |
| Eje | Estilo "P", estándar |

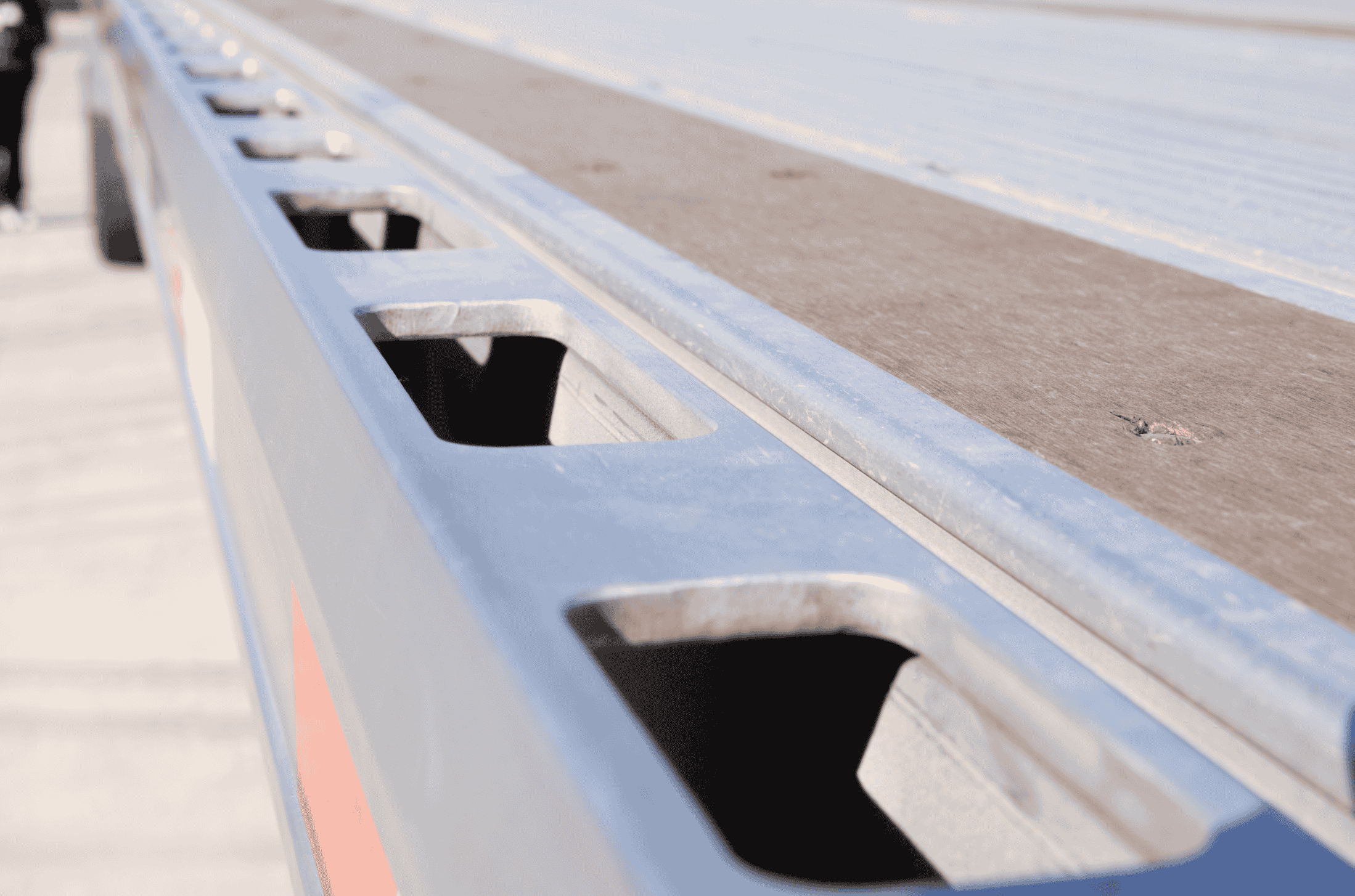

| Raíles laterales | Integrated Aluminum High Impact Side Rail |
| Acabado exterior | Galvanizado en caliente, estándar |
Seleccione las pestañas de arriba para ver cada categoría de especificación.
Opciones avanzadas
Explore nuestras opciones avanzadas para mejorar su producto.

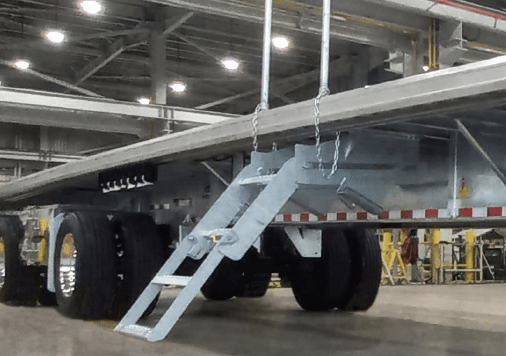

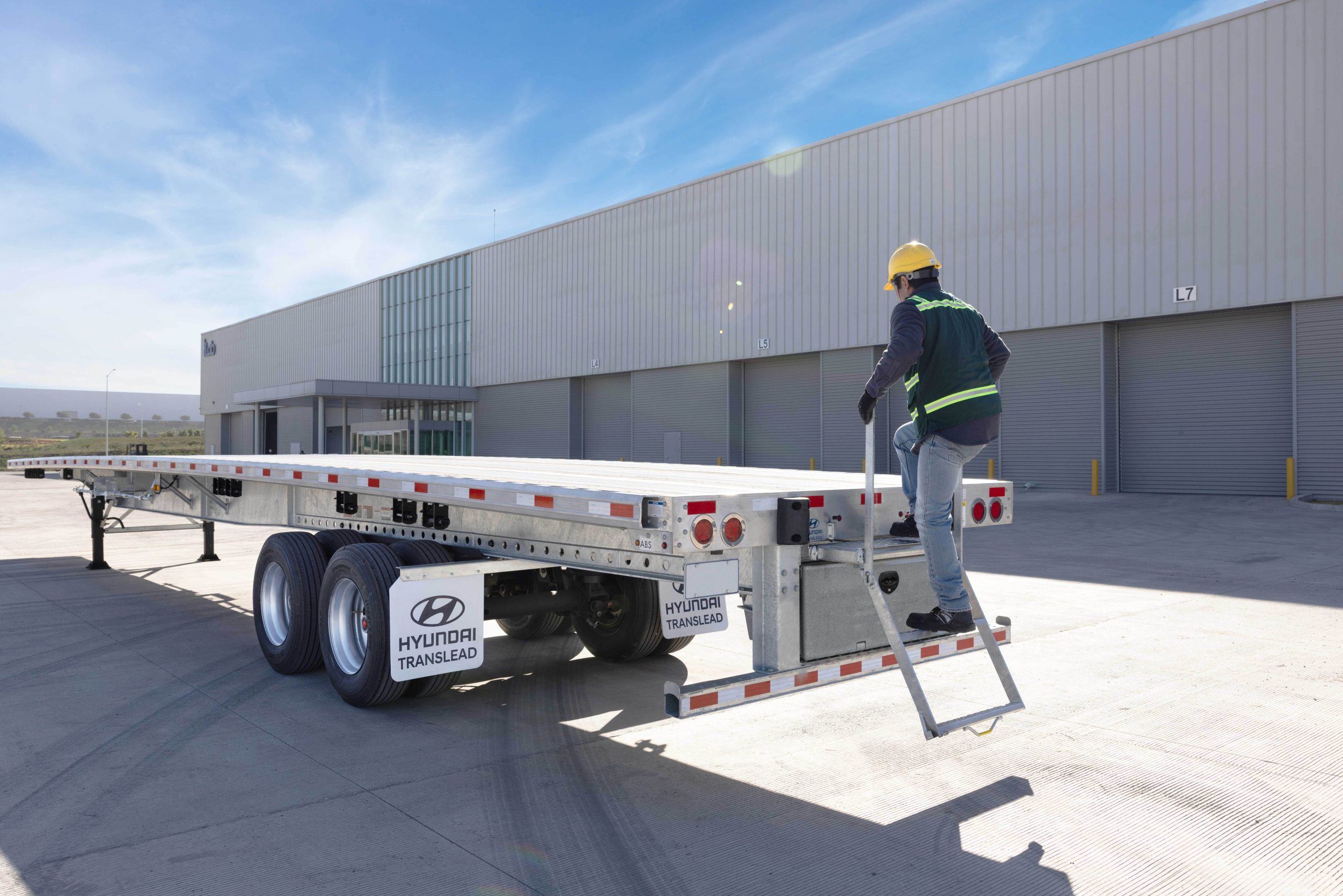

Side Ladder
Easy access to the deck with a built-in ladder for convenience.

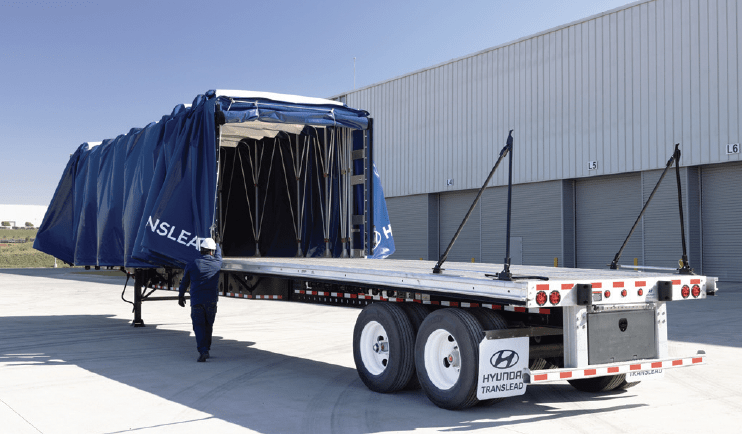

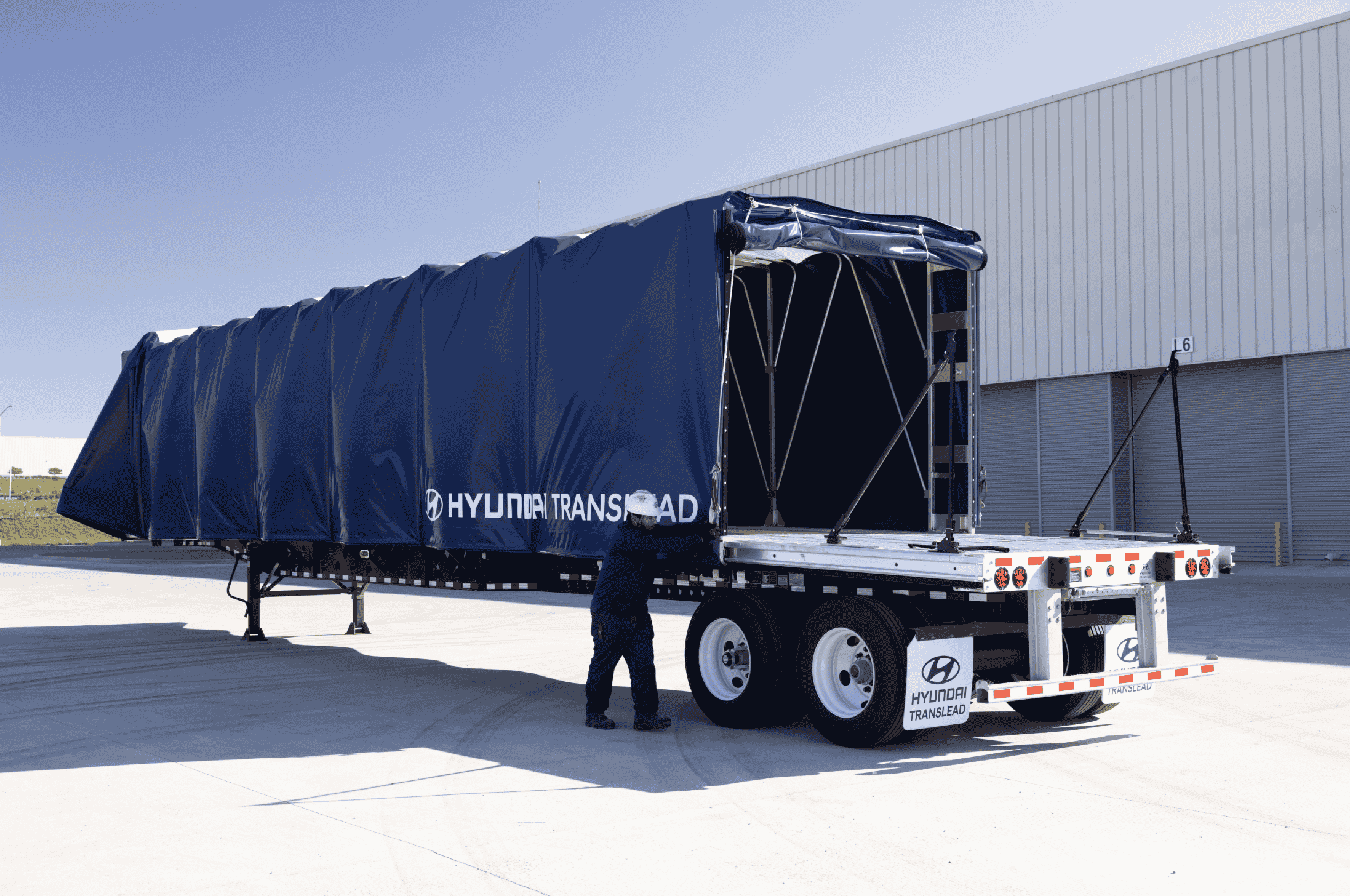

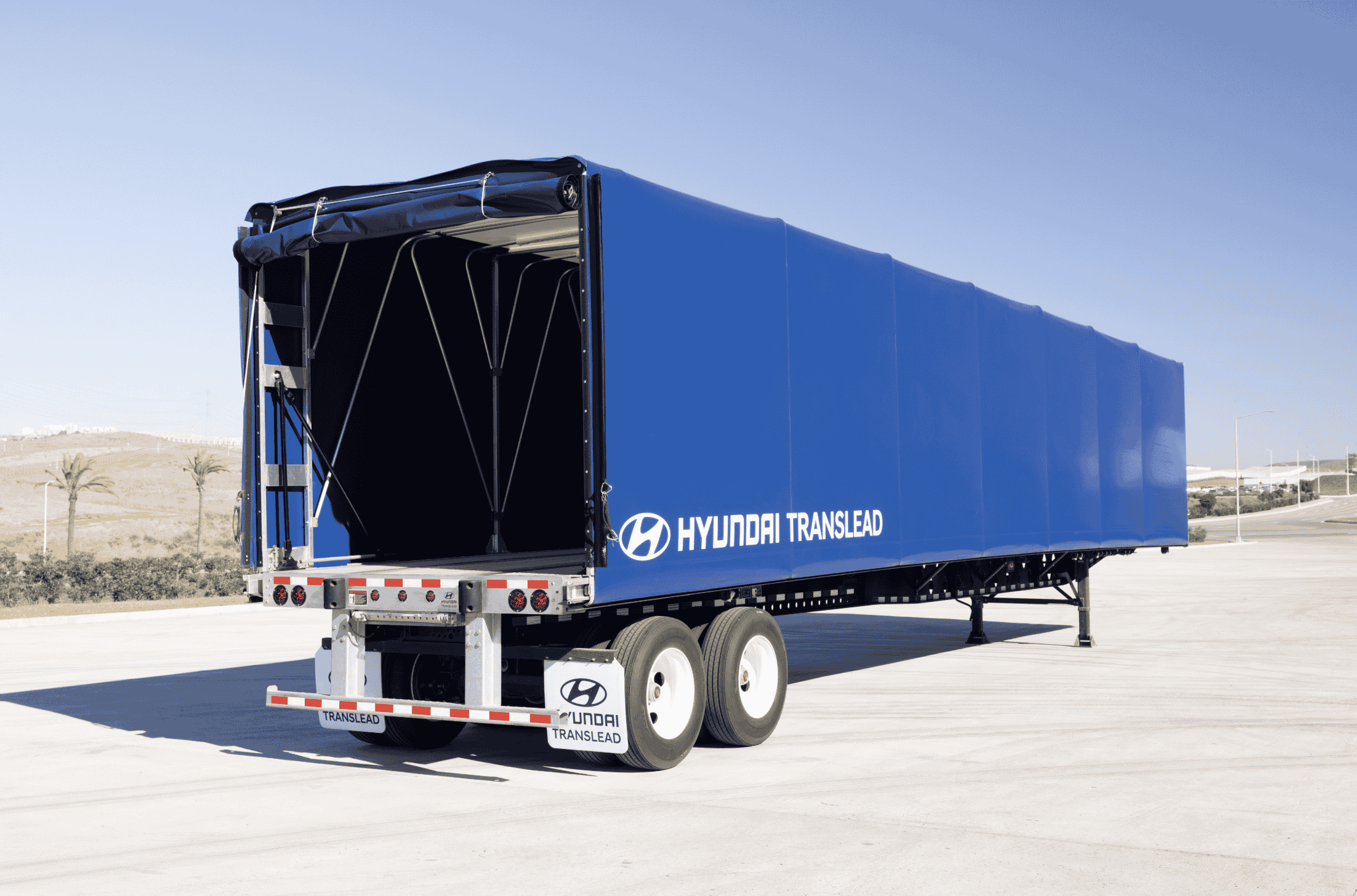

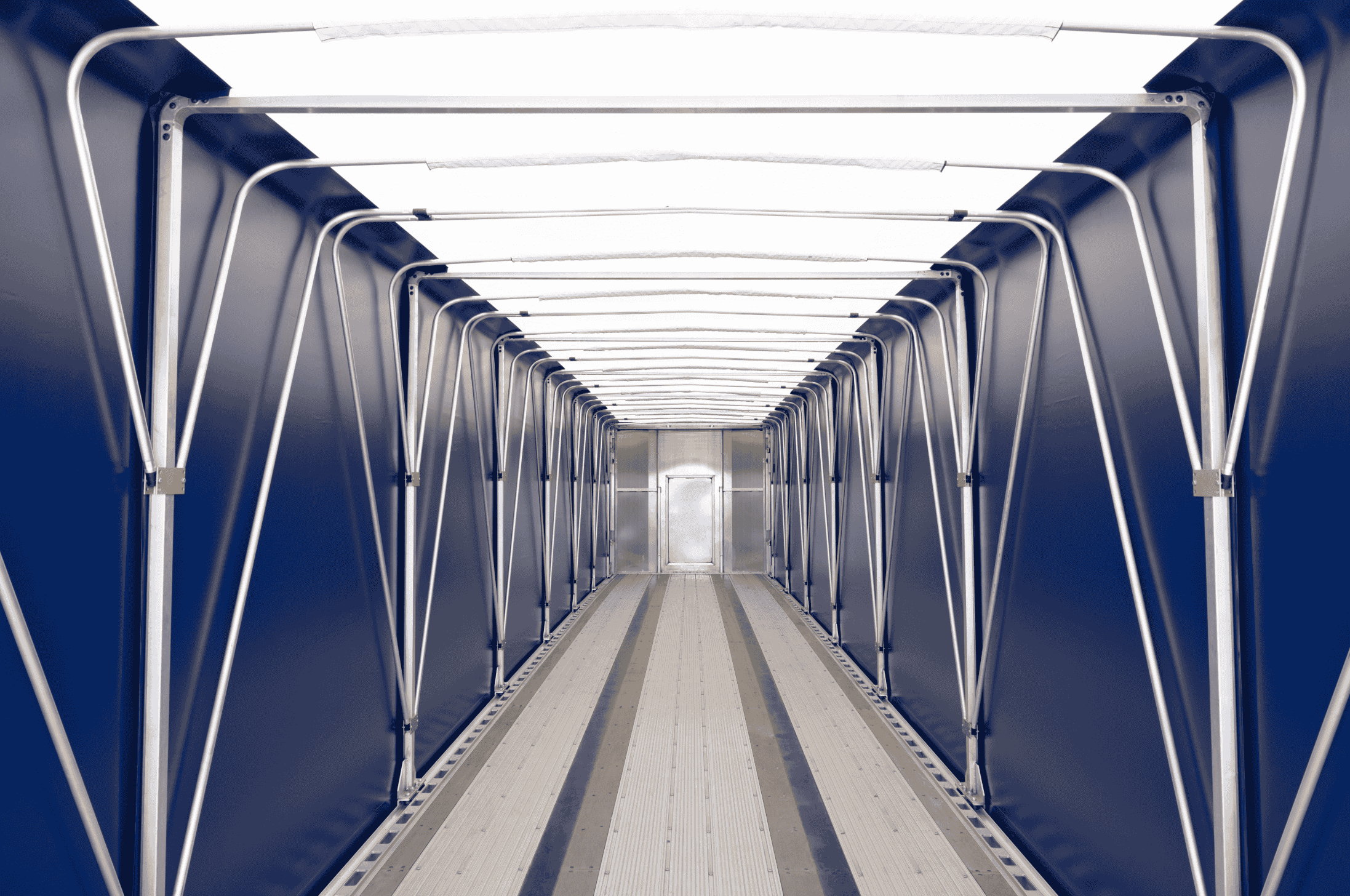

Rolling Tarp System
Provides a seamless solution for cargo protection, combining durability, ease of use, and enhanced operational efficiency.

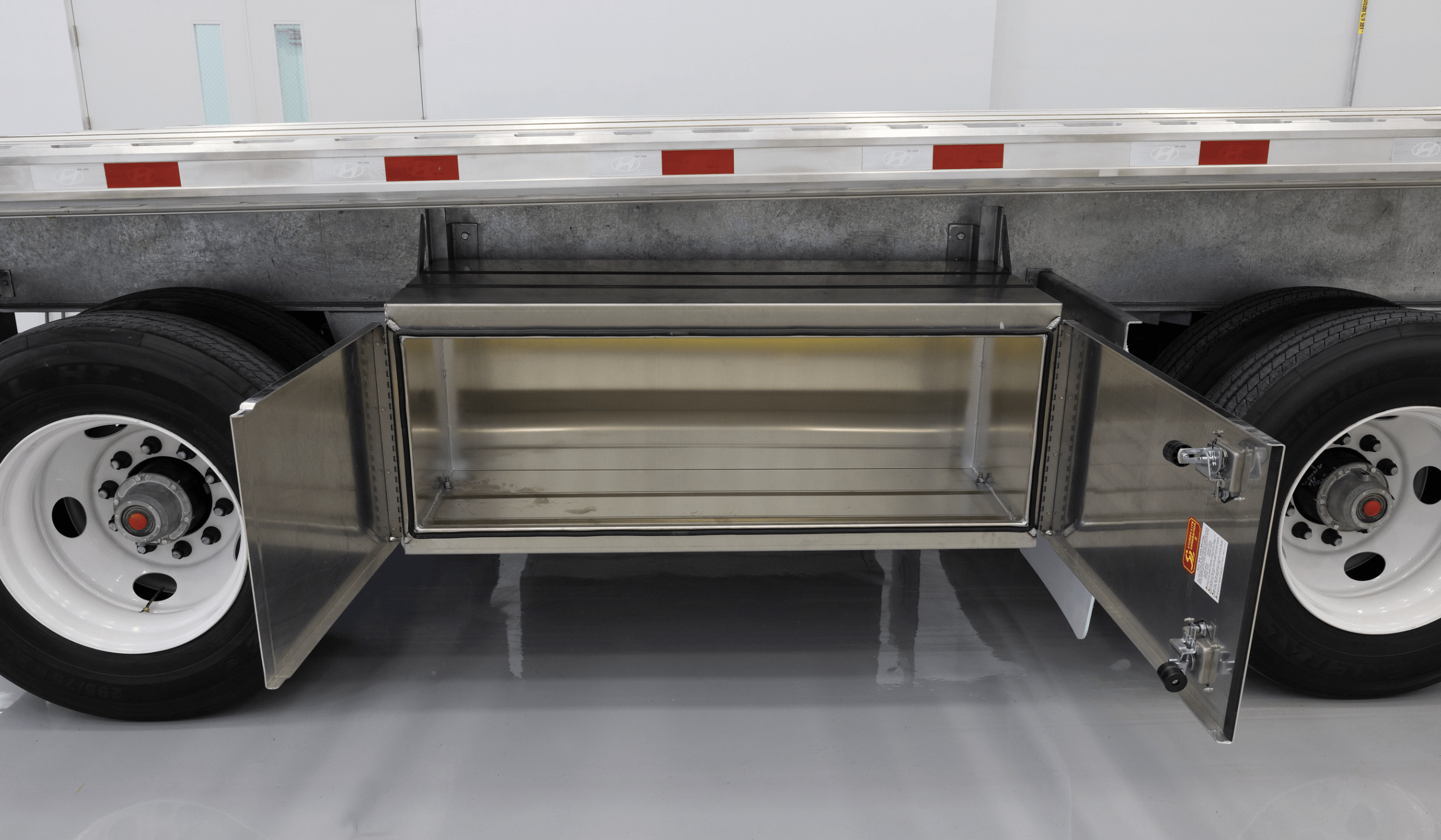

Side Storage Box
Provides an additional secure and convenient storage for driver’s tools and equipment.

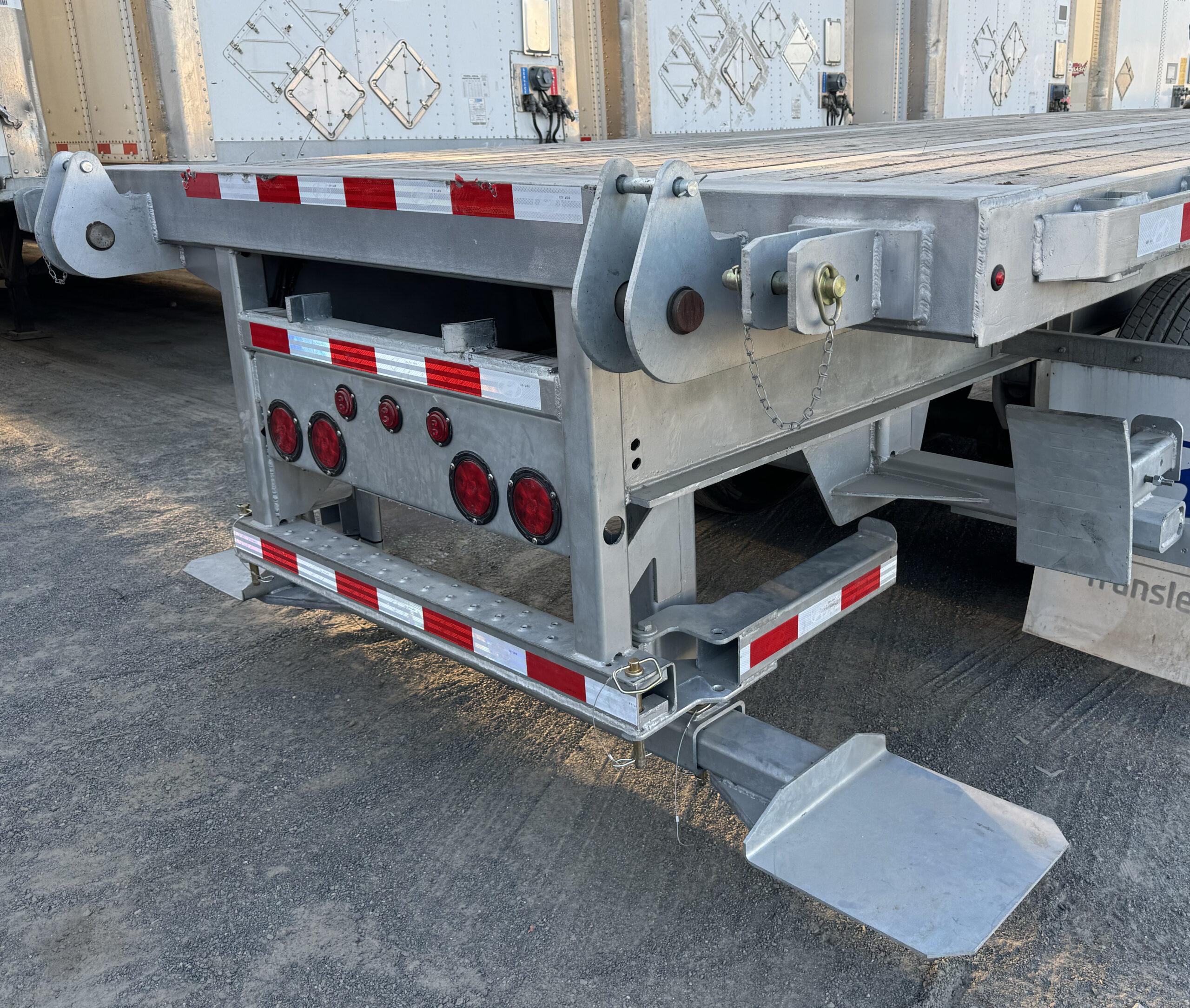

Forklift Package
Offers a removable tire rest and an adjustable wheel stop to accommodate various forklift models.

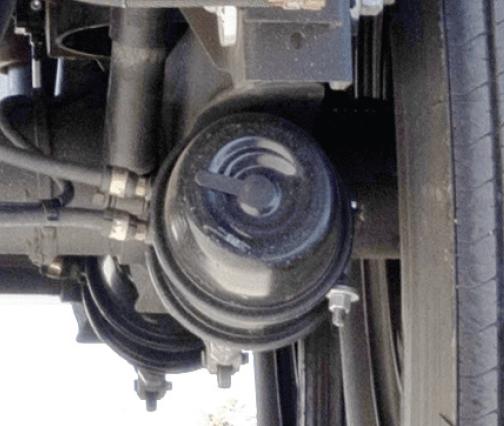

Piston-Type Chambers
High-efficiency piston chambers for reliable and consistent braking performance.
Custom Paint Option
Custom, long-lasting and high-quality paint options available.

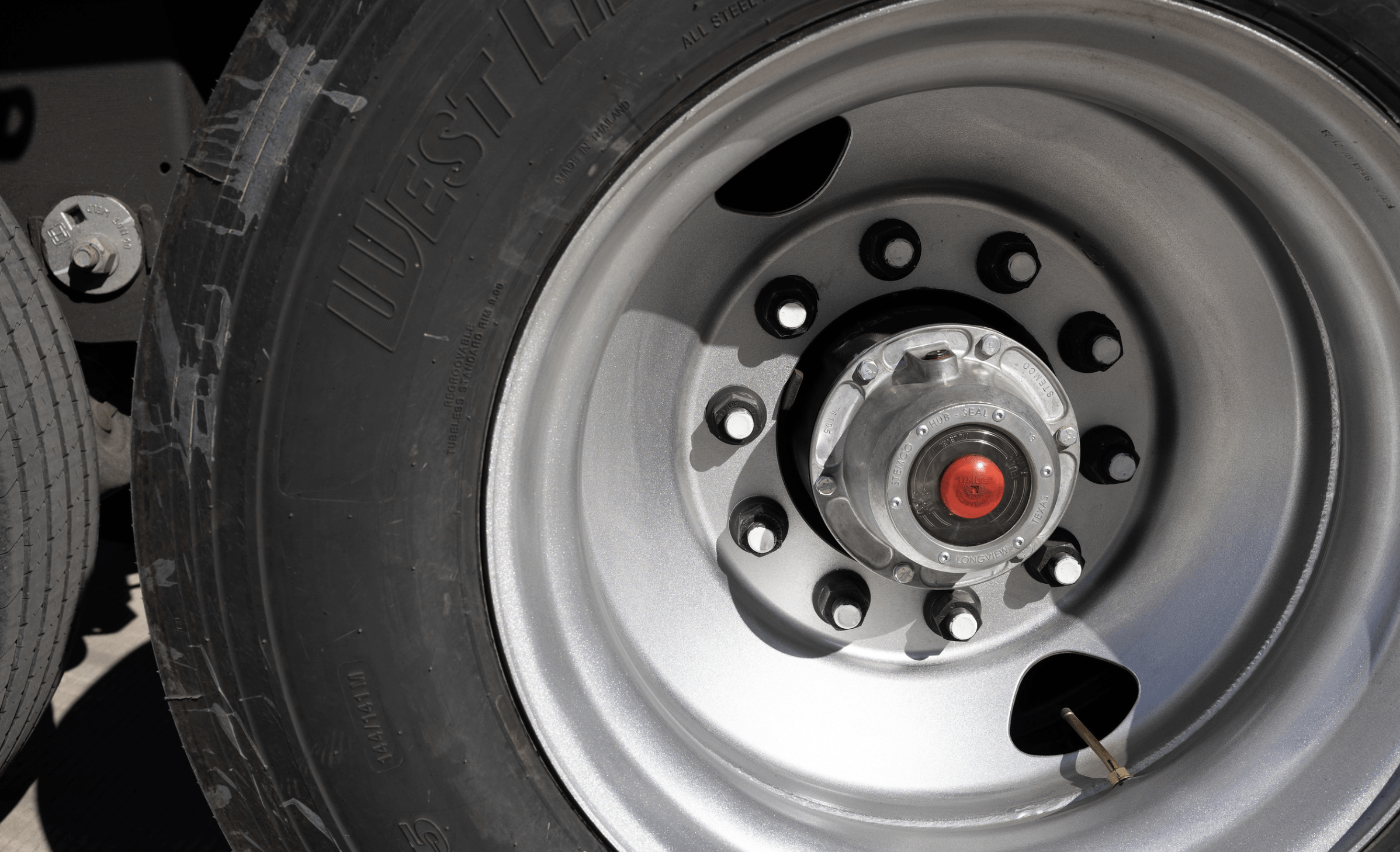

Hot-Dipped Galvanized Wheels
Corrosion-resistant wheels built for enhanced durability.
Setting A New Standard for Flatbed
Descubra por qué y cómo los remolques Hyundai Translead son más duraderos y están hechos para satisfacer sus necesidades.
Durability and Quality
Constructed with high-strength steel and aluminum, ensuring exceptional durability and quality to withstand the harshest conditions.
Repairability
This unique design offers quick replacement of components for repairs without compromising the structural integrity.
Ease of Use
Designed with drivers in mind, ergonomic enhancements improve efficiency and provide easier access to cargo.
Personalización
Available with various customized options that can be tailored to fit your needs including the rolling tarp, forklift package, side ladder, and side storage box.
