Anza Truck Body Rotator
Lo mejor desde todos los ángulos
See the Anza Truck Body come to life using our 360º Rotator feature.
Click on the icons to learn what makes Hyundai truck bodies a step above the competition.
Anza

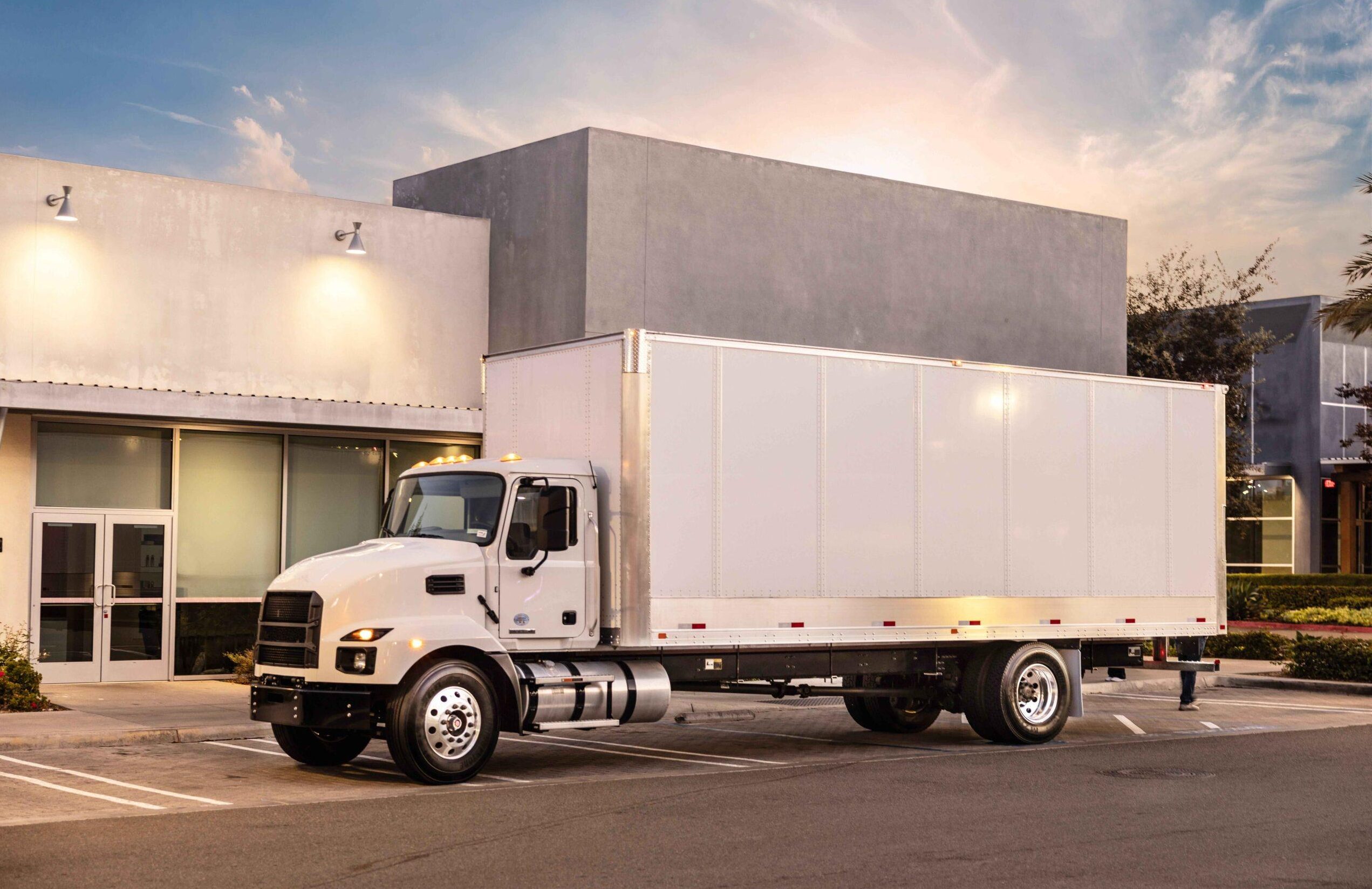

Hyundai’s Anza Medium Duty Truck Body is ideal for last mile deliveries and rental fleets, and is the right solution for many industries and applications.
Anza Photo Gallery
Anza Photo Gallery

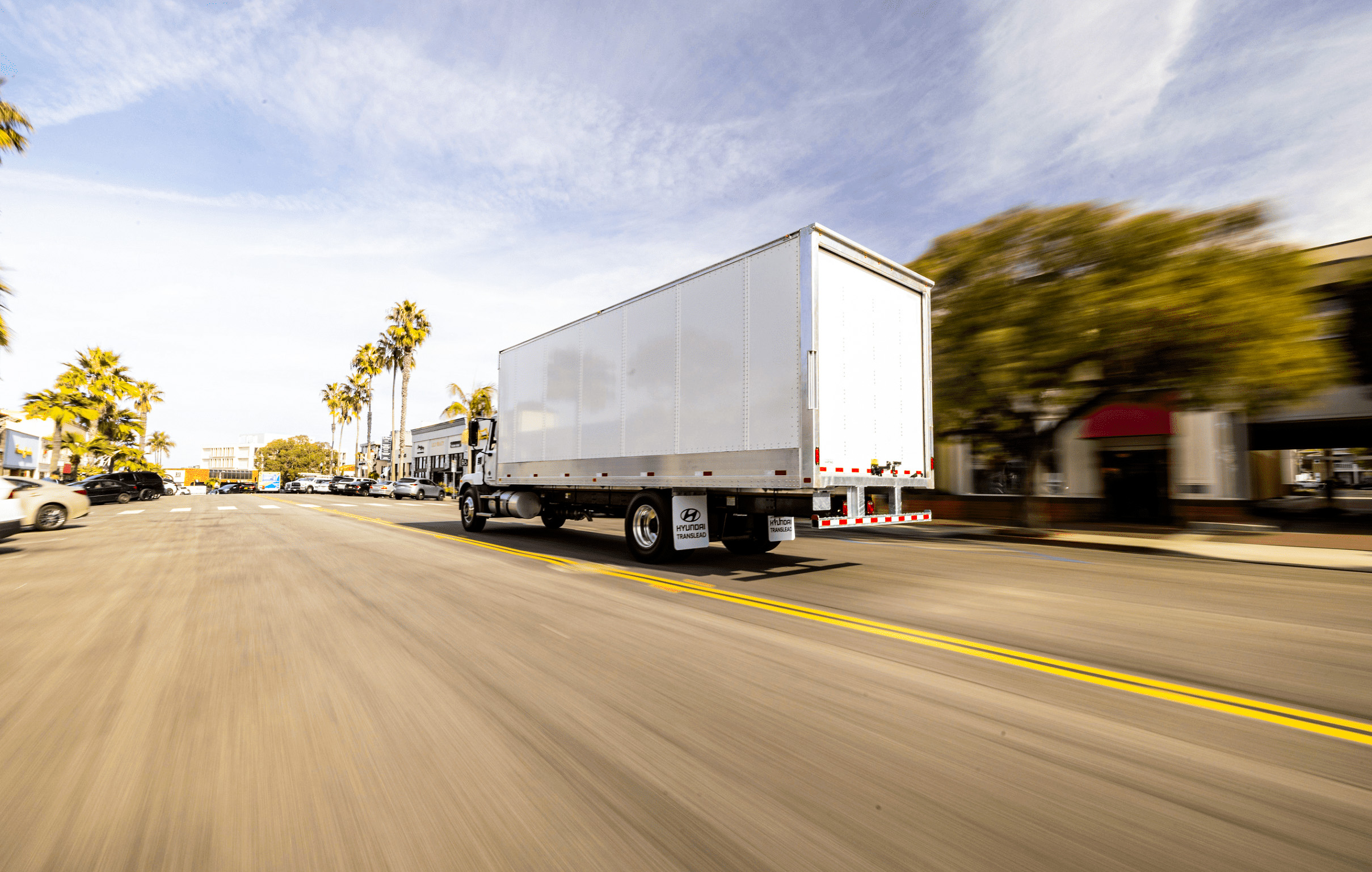

The Anza Truck Body is an innovative solution for urban and suburban deliveries, designed to minimize shipping costs and maximize efficiency. Its flatpack kit design ensures ease of onsite assembly, simplifying logistics while maintaining the reliability of Hyundai Translead components. Perfect for last-mile deliveries, Anza’s versatile configurations meet the needs of today’s evolving supply chain.
Seleccione las pestañas de arriba para ver cada categoría de especificación.
Especificaciones del producto
The Anza Truck Body is an innovative solution for urban and suburban deliveries, designed to minimize shipping costs and maximize efficiency.
| Longitud | Exterior: 26′ 5-5/8″ | Interior: 26′ |
|---|---|---|
| Anchura | Exterior: 102.36″ | Interior: 101.5″ (above side scuff, wall to wall) |
| Altura | Exterior: 108-3/4″ (not including base rails) | Interior: 102″ Nominal |
| Peso estándar | 4,400 lbs. (not including truck mounting accessories) | |
Seleccione las pestañas de arriba para ver cada categoría de especificación.
Construcción de la carrocería
The Anza Truck Body is an innovative solution for urban and suburban deliveries, designed to minimize shipping costs and maximize efficiency.

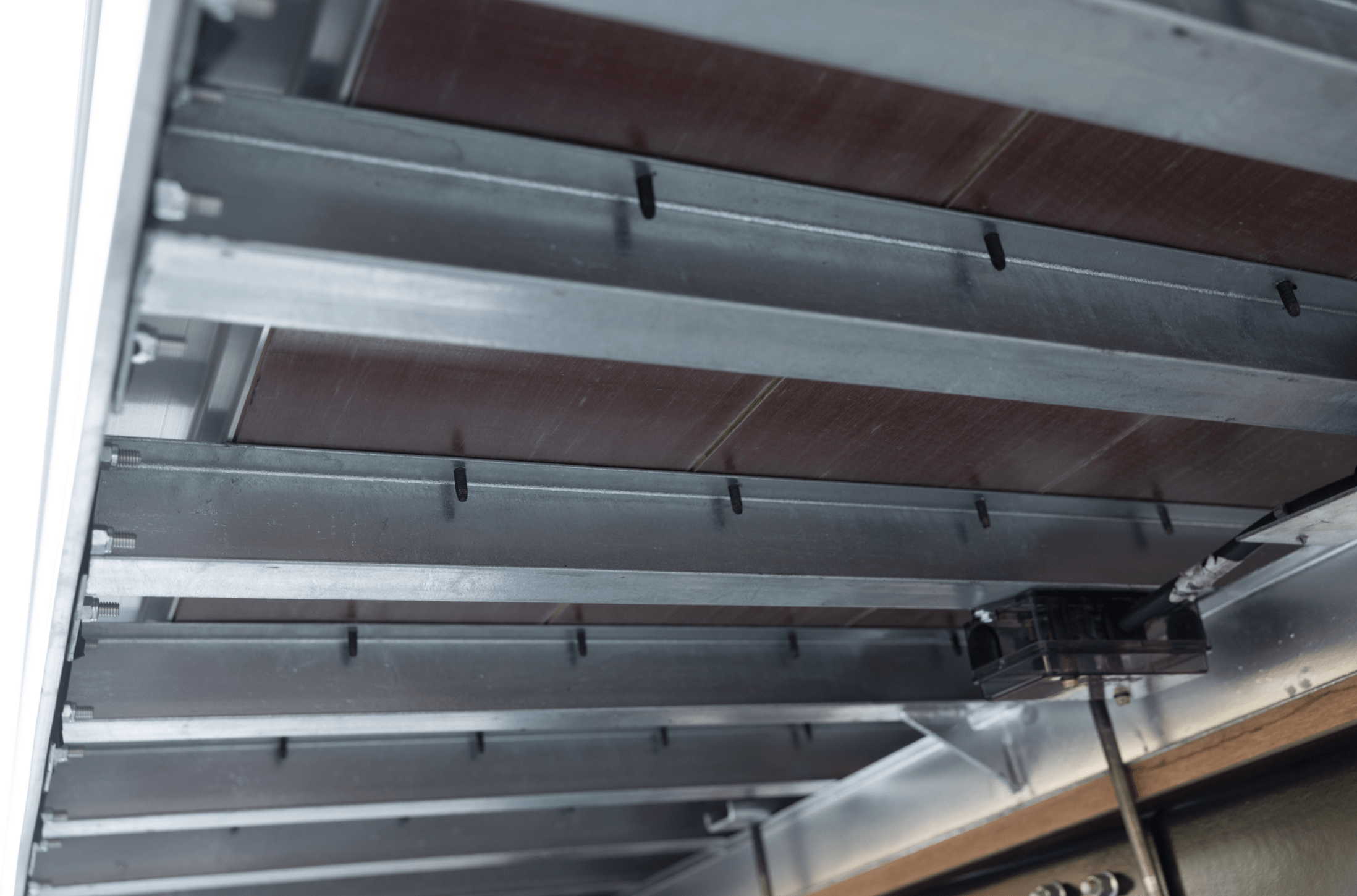

| Base | 3″ I-Beam crossmembers on 16″ centers with 12″ on last 4′. |
|---|---|
| Floor | 1.13″ (1-1/8″) nominal domestic laminated hardwood. |
| Hojas laterales | 0.24″ composite panel with pre-painted white, high-tensile galvanized steel inner and outer sheets. |
| Refuerzos laterales | 19GA high-tensile galvanized steel at 48.5″ CL. |

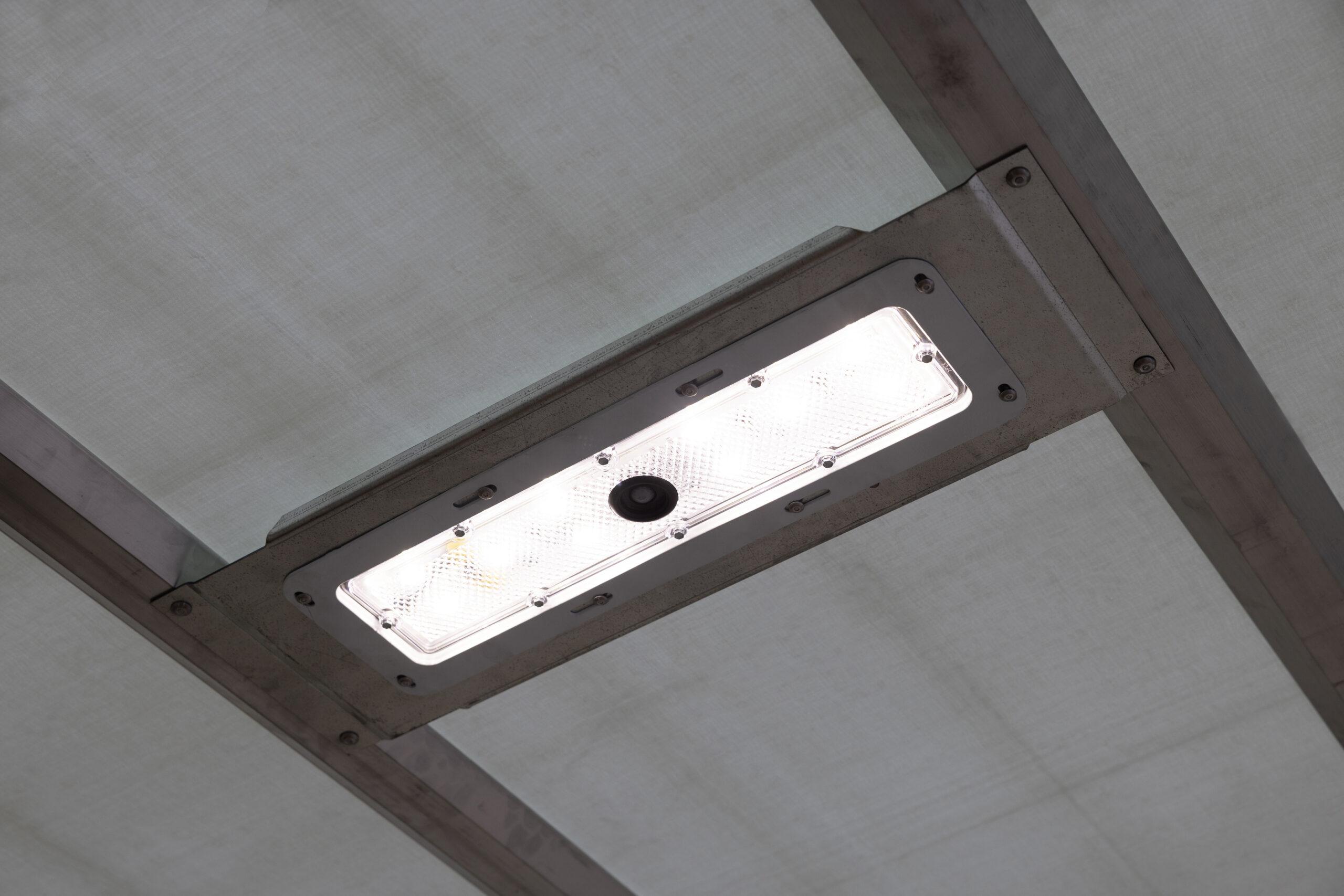

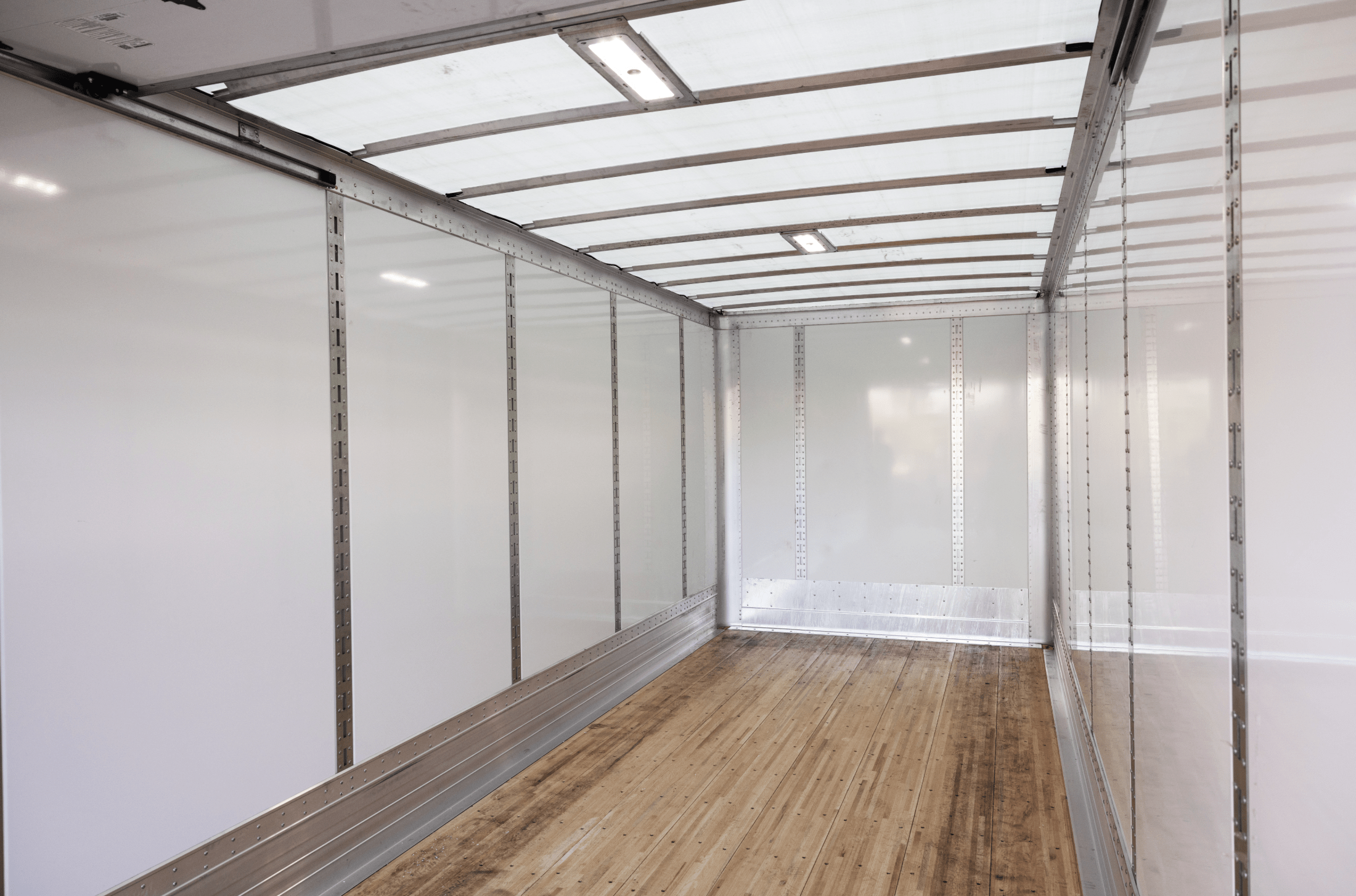

| Techo | One-piece translucent panel. |
| Roof Bow | Aluminum, anti-snag at 24″ CL. |
| Pared frontal | Composite panel with (2) A-Track at 48.5″ CL. |

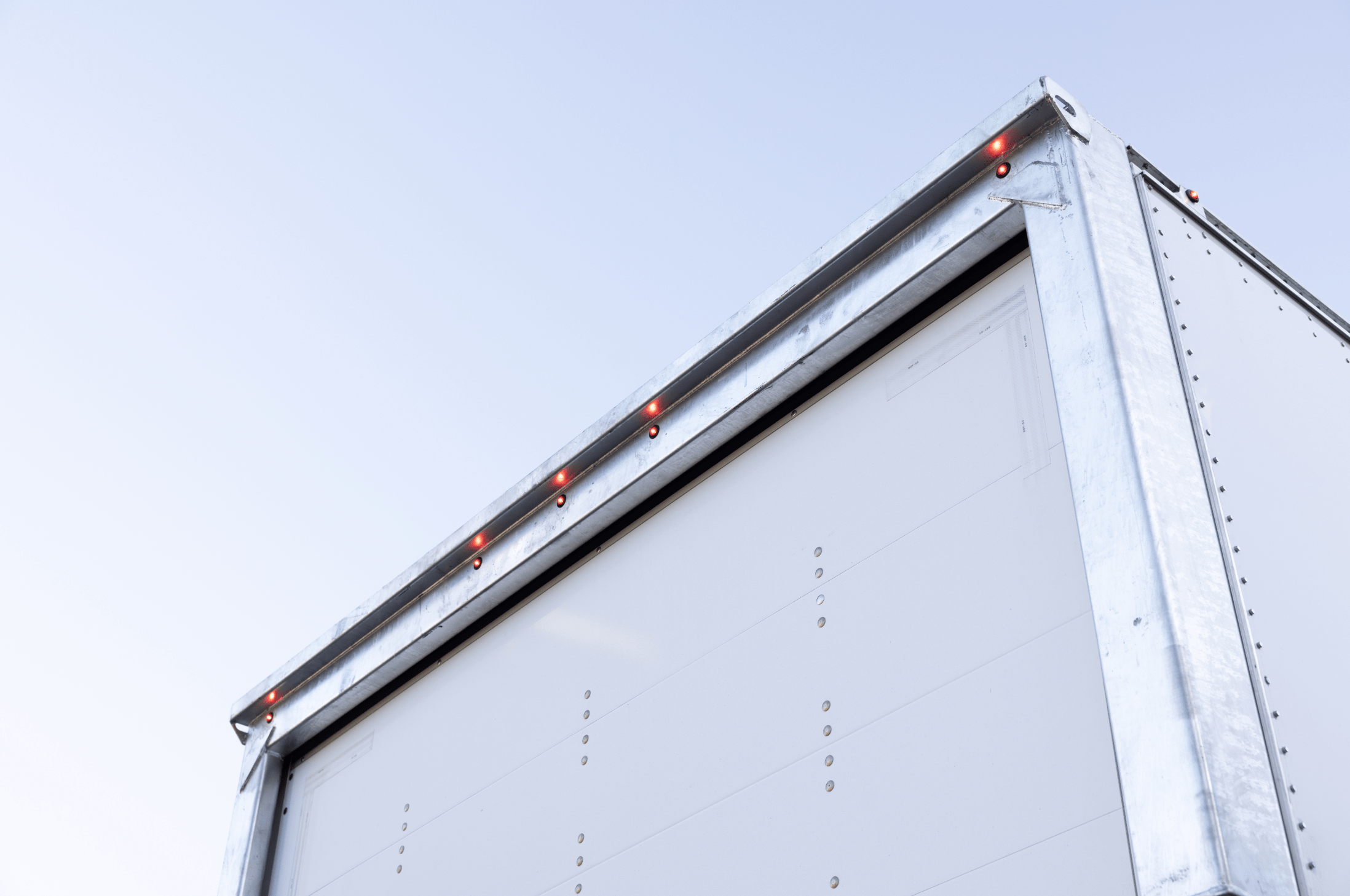

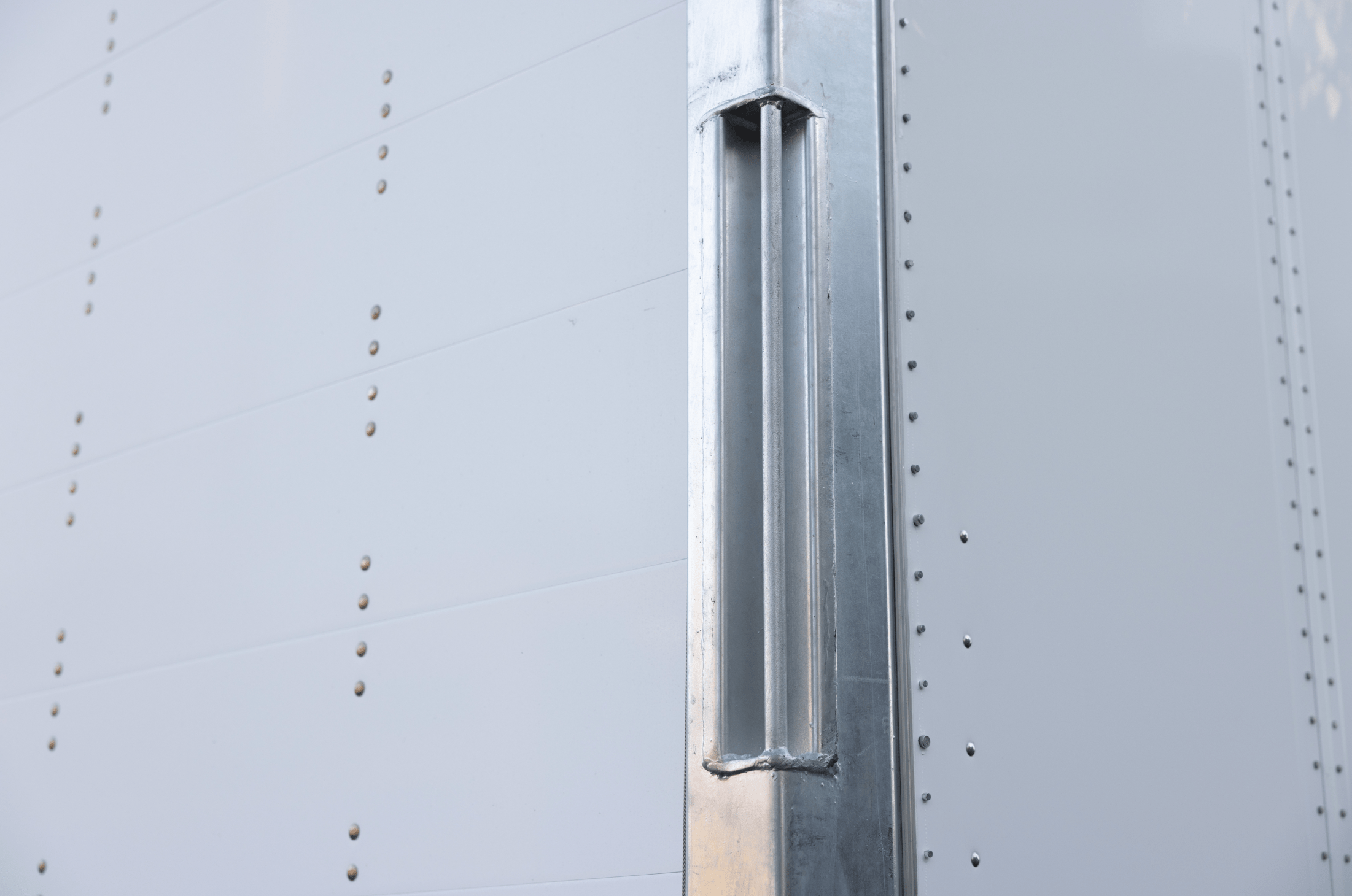

| Marco trasero | Hot-dipped galvanized, high-tensile steel construction with low profile header. Forged steel angle irons in top corners for added rack resistance. Lights recessed into corner posts. 10GA Galvanized Steel Roll-Up door track protector. |
| Rear Door | Whiting roll-up door. Standard 1/4″ premium plate door pre-painted white. |

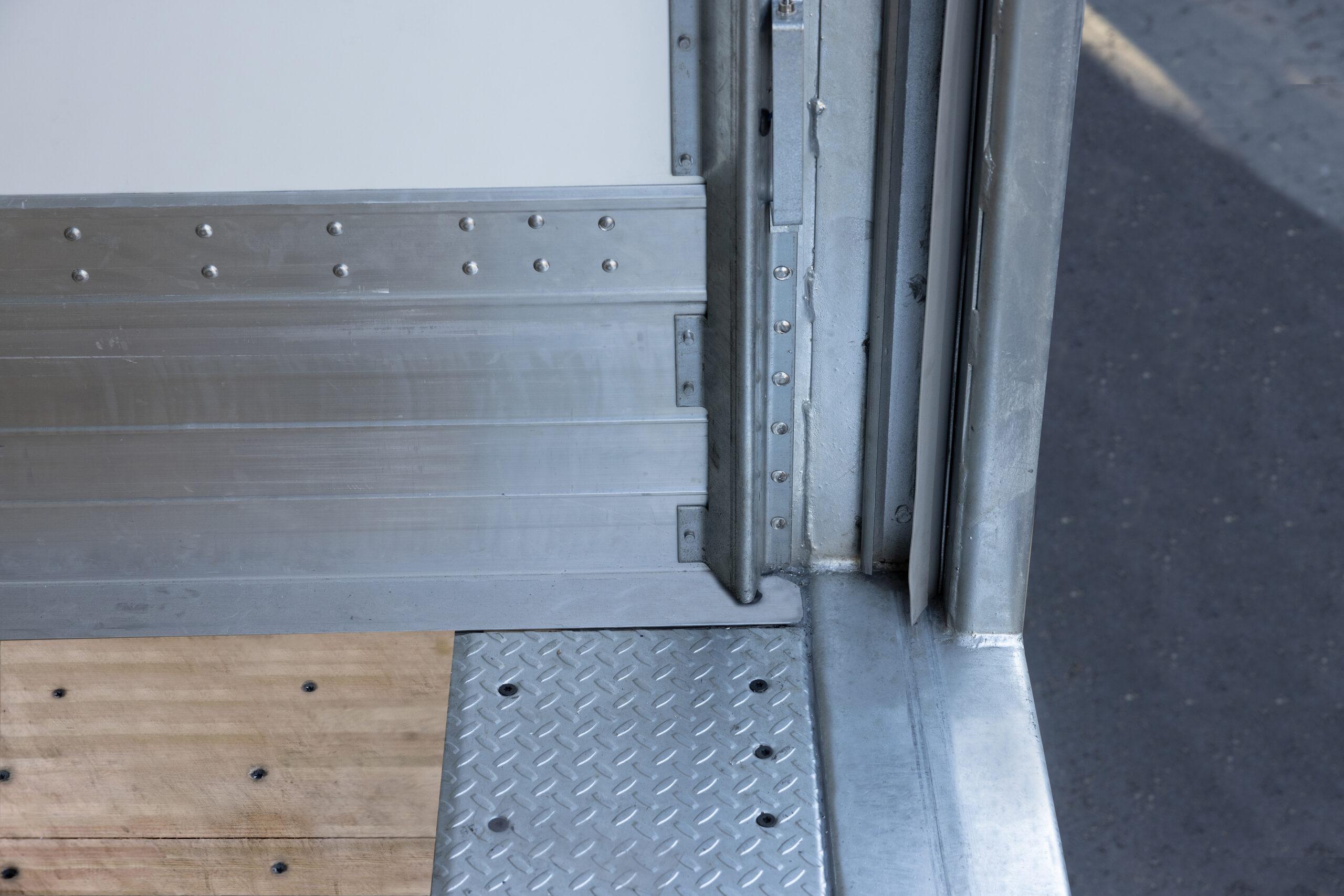

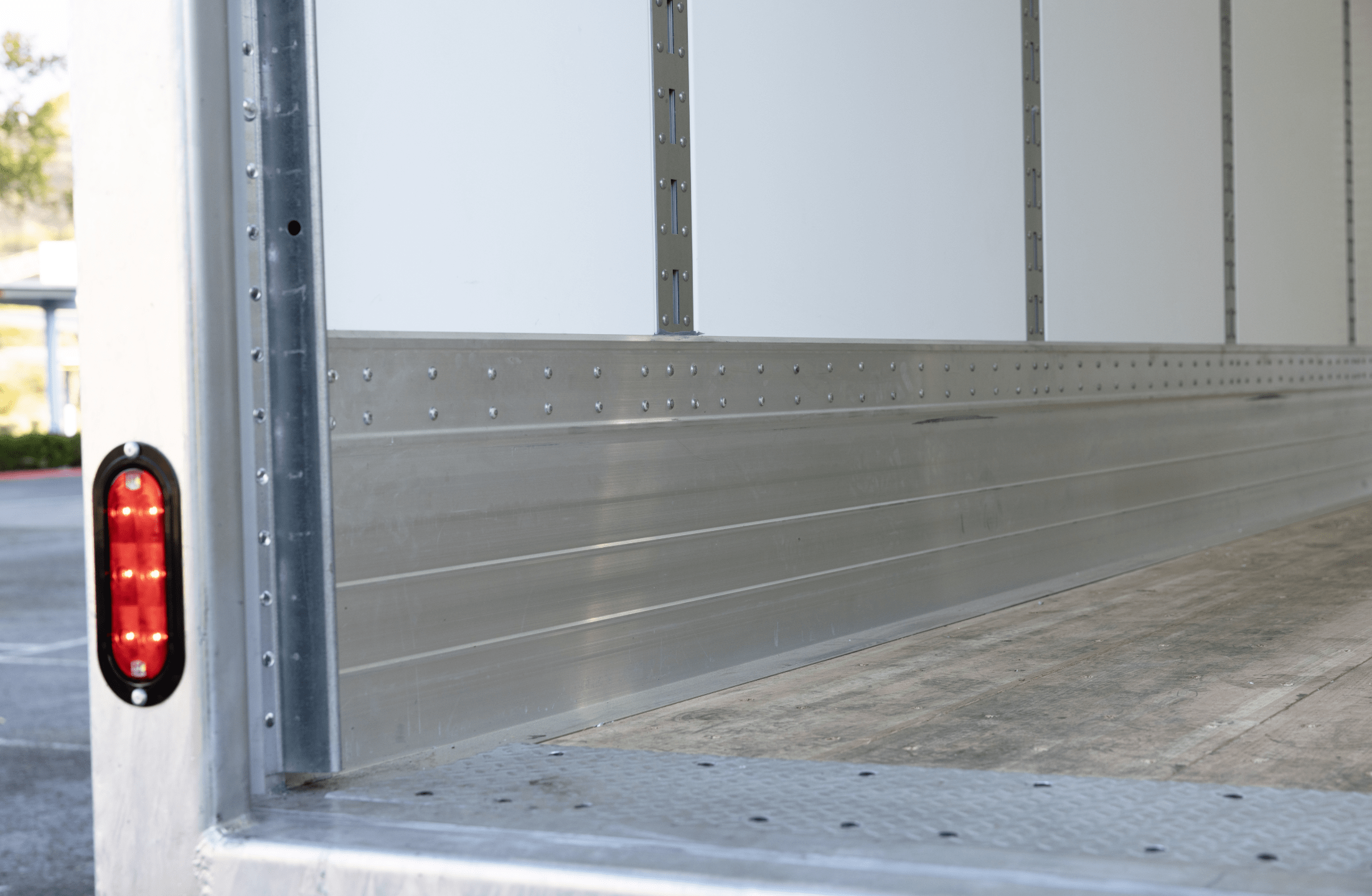

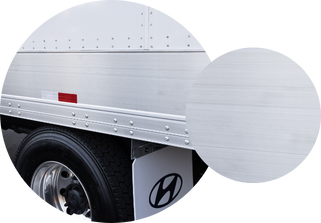

| Scuff Band | 16″ exposed height extended scuff with exterior ribs for increased stiffness and scrape resistance. |
Seleccione las pestañas de arriba para ver cada categoría de especificación.
Opciones avanzadas
Explore nuestras opciones avanzadas para mejorar su producto.

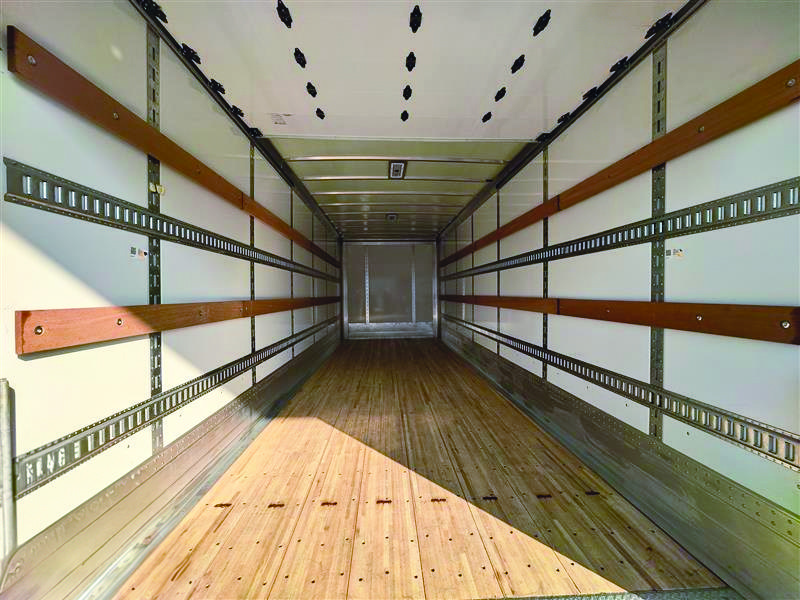

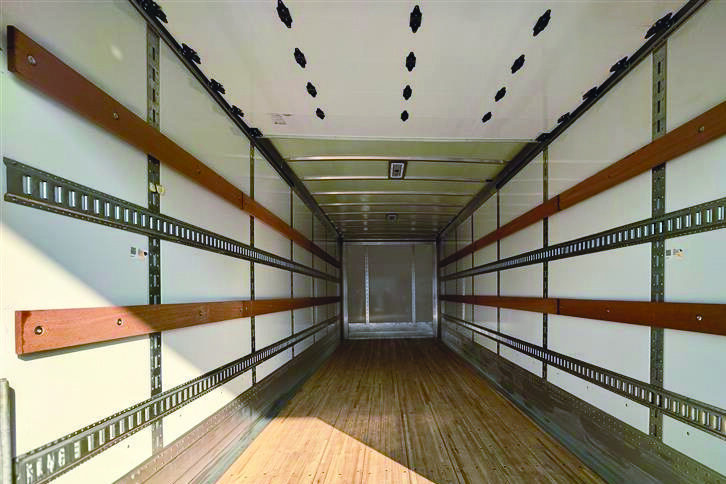

Vertical Logistics
Vertical logistics on 24” or 48” centers accommodate your preferred accessories for easy load securement, including e-tracks, wood slats, and d-rings.

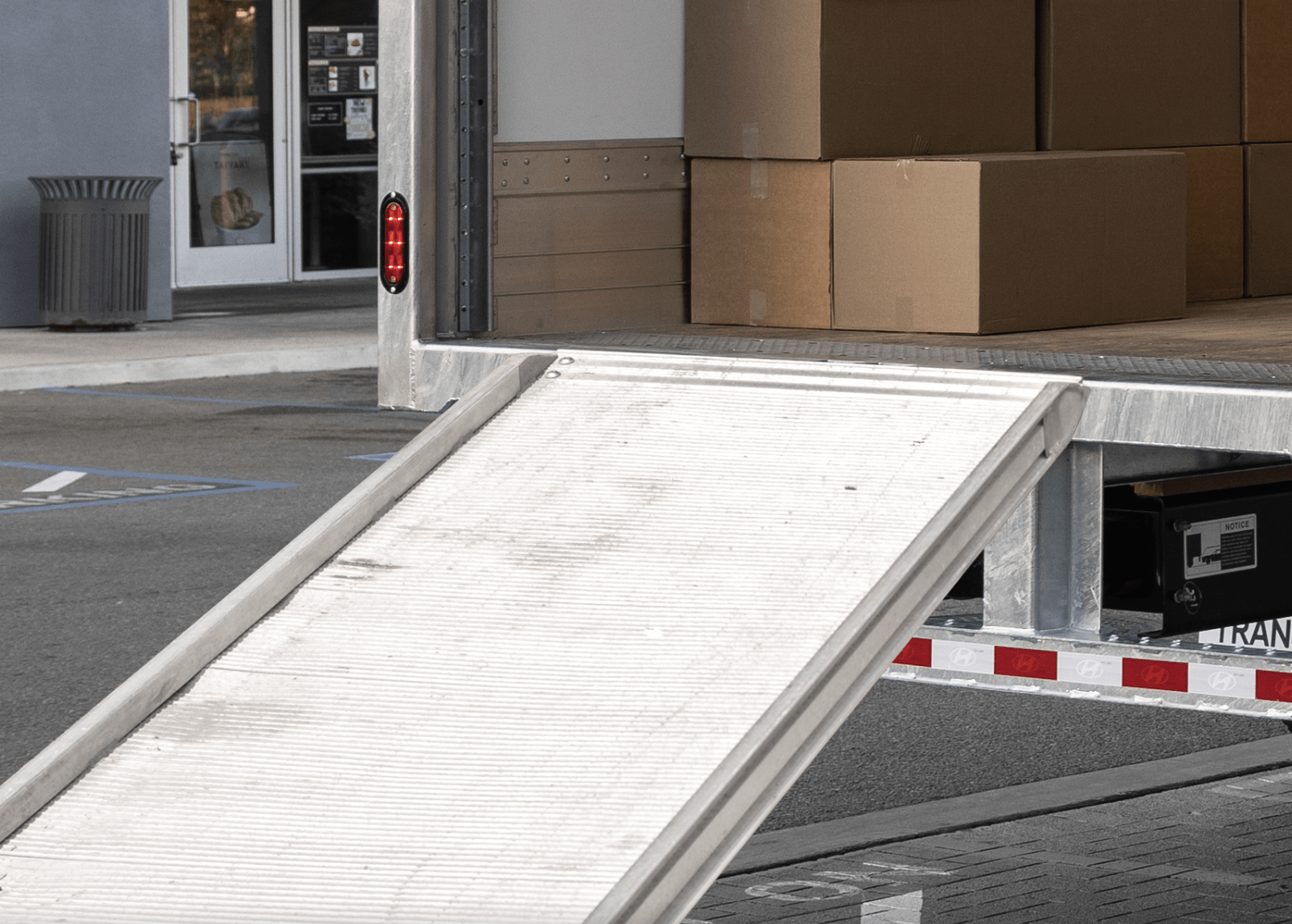

Ramps
Preferred ramp options available for factory or field installation.

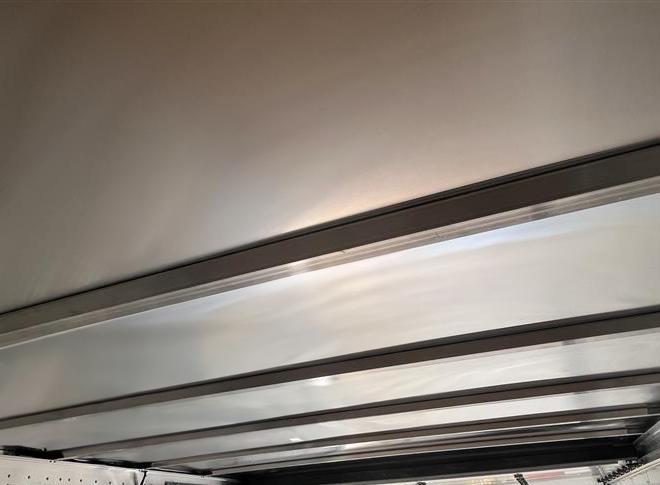

Aluminum Roof
Additional aluminum roof option to fit your needs.
A New Approach to Medium Duty Truck Bodies
Descubra por qué y cómo los remolques Hyundai Translead son más duraderos y están hechos para satisfacer sus necesidades.
Flexibility
Anza has the ability to ship as multiple kits, changing how truck bodies are delivered and assembled, improving efficiency and flexibility.
Repairability
Built with proven trailer components such as the independent side panels, Anza offers ease of repair and minimizes downtime.
Reliability
Built with trusted Hyundai Translead components, including the extended bottom rail and composite panels, Anza ensures superior performance and long-lasting dependability for your fleet.
Personalización
Anza comes in various customized options that can be tailored to fit your needs, including load securement accessories, liftgate, and ramp options.

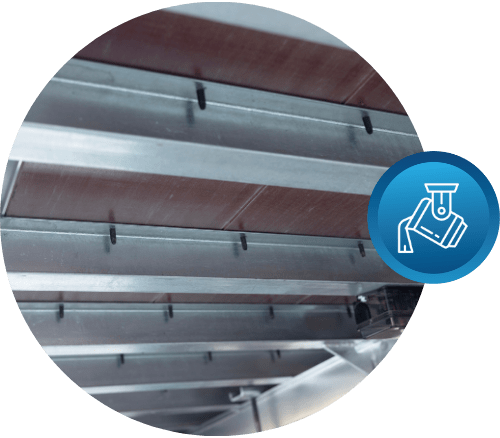

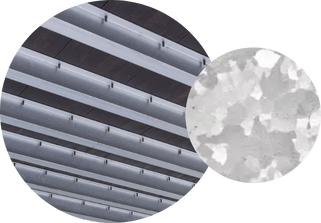

Galvanización en caliente
Hyundai Translead is the only manufacturer in the industry to offer an Anti-Corrosion Package, with hot-dipped galvanization as a standard feature for enhanced durability and long-term performance.

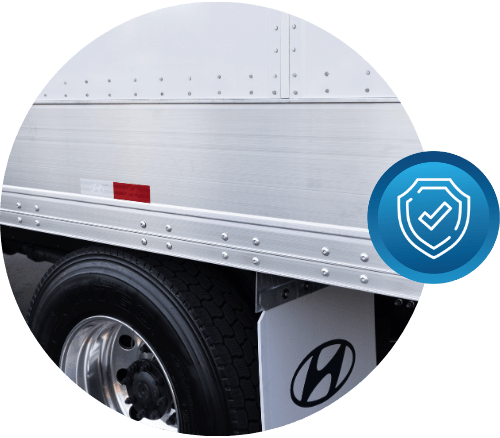

Quality Manufacturing & Components
Every Anza truck body is built with high-quality materials and expert craftsmanship, ensuring a durable, reliable, and efficient solution for your transportation needs.
