Extended Length
41’ 11-3/4”
Width
96″
Exterior Height
58-9/16″
Capacity
52,910 lbs
GVWR
63,810 lbs
Tare Weight
10,900 lbs
Extended Length
41′ 11-3/4″
Width
96″
Exterior Height
58-9/16″
Capacity
52,910 lbs
GVWR
63,810 lbs
Tare Weight
10,900 lbs

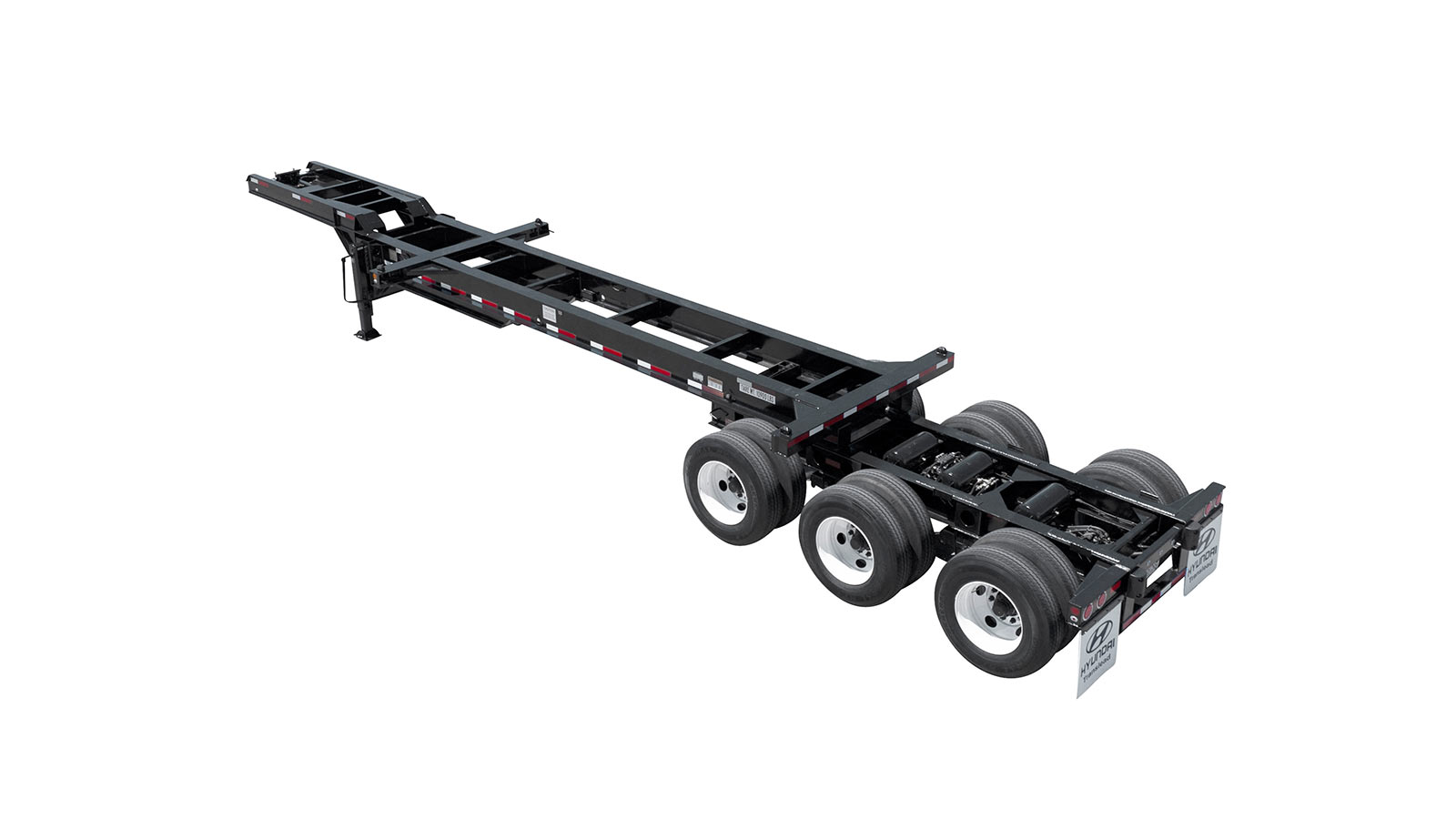

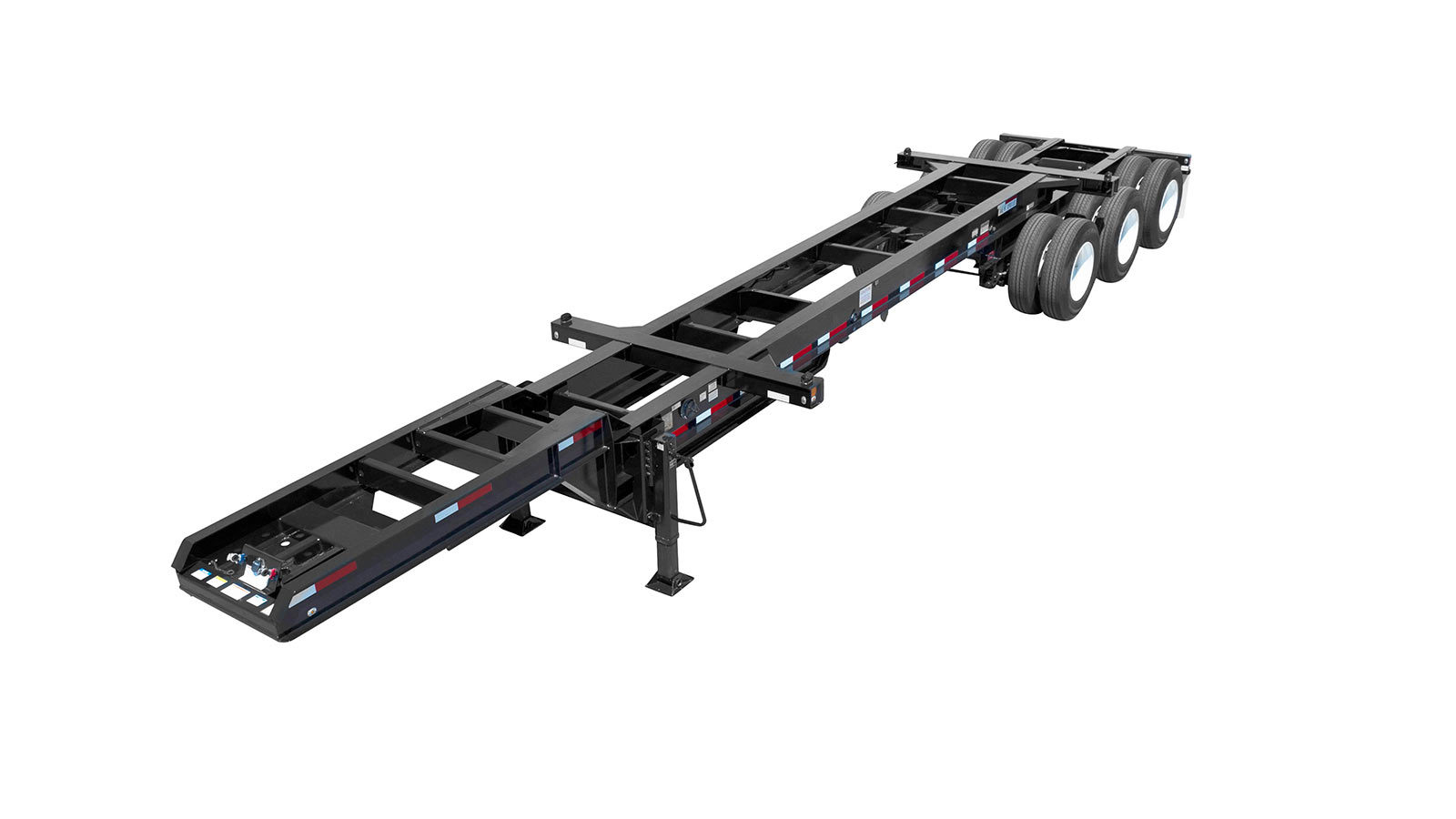

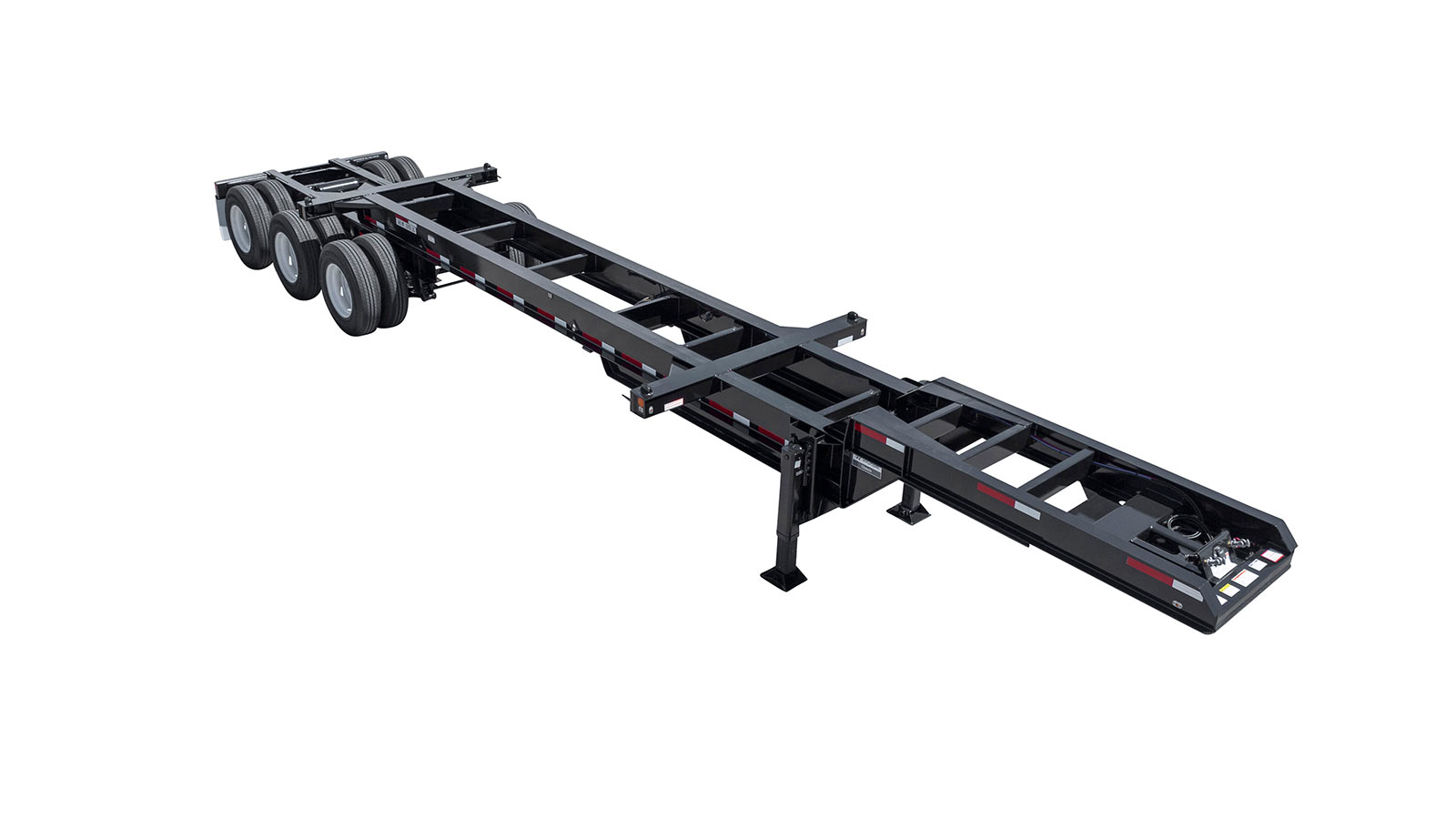

20′ Slider Tri-Axle Rotator
The Best From All Angles
This chassis offers unbeatable versatility no matter the load. And it’s quality is easy to see front to back and side to side.

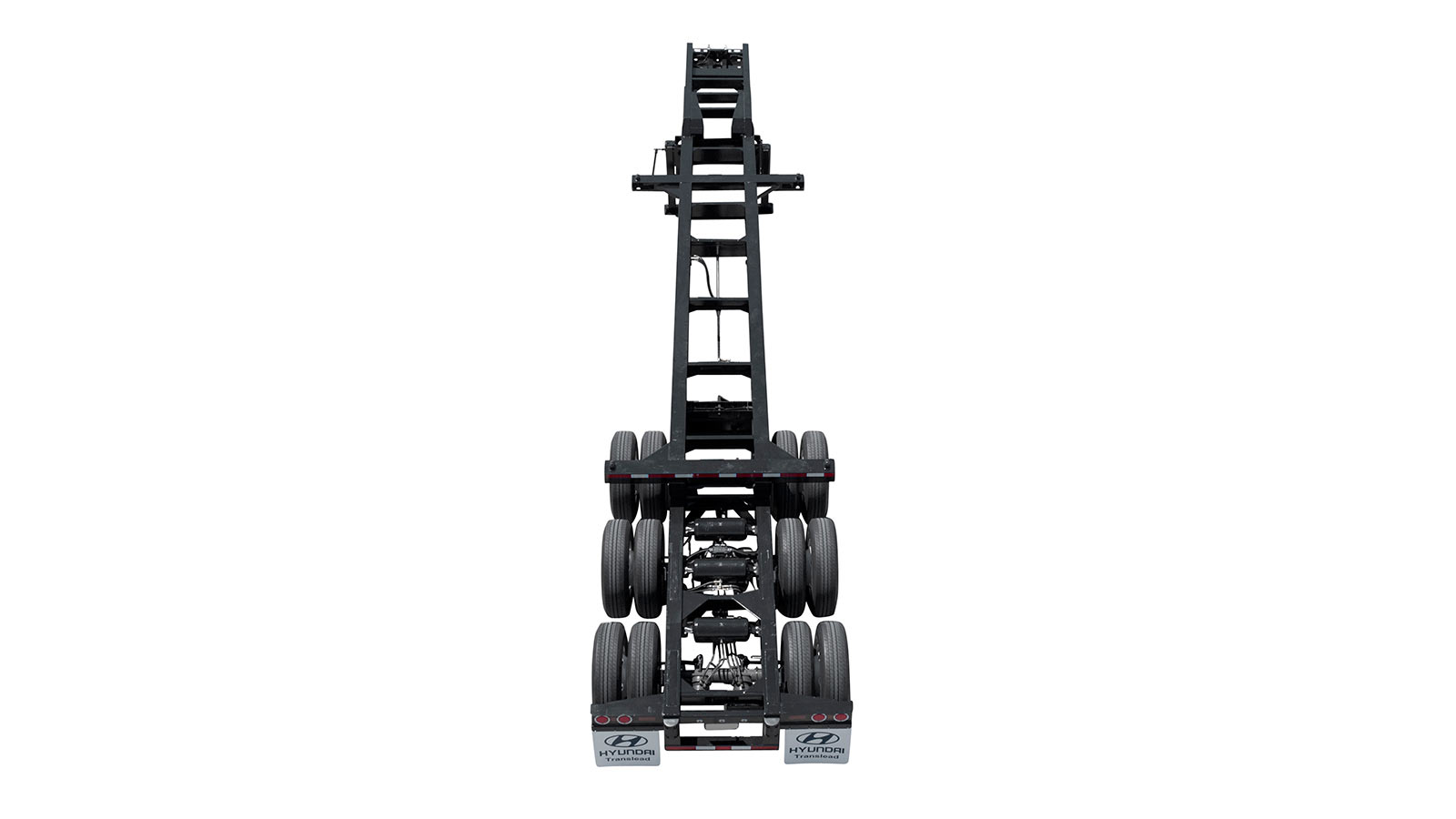

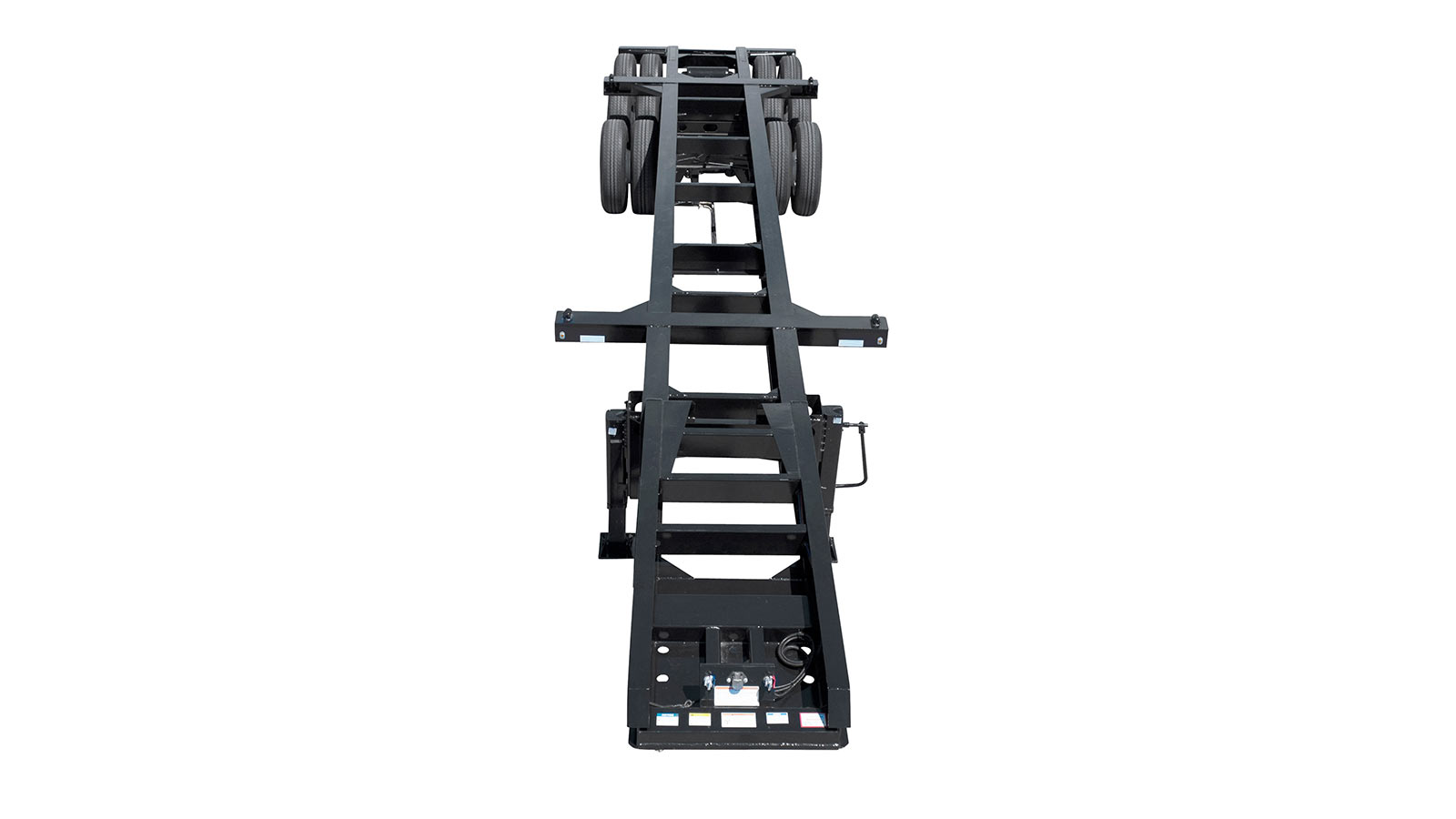

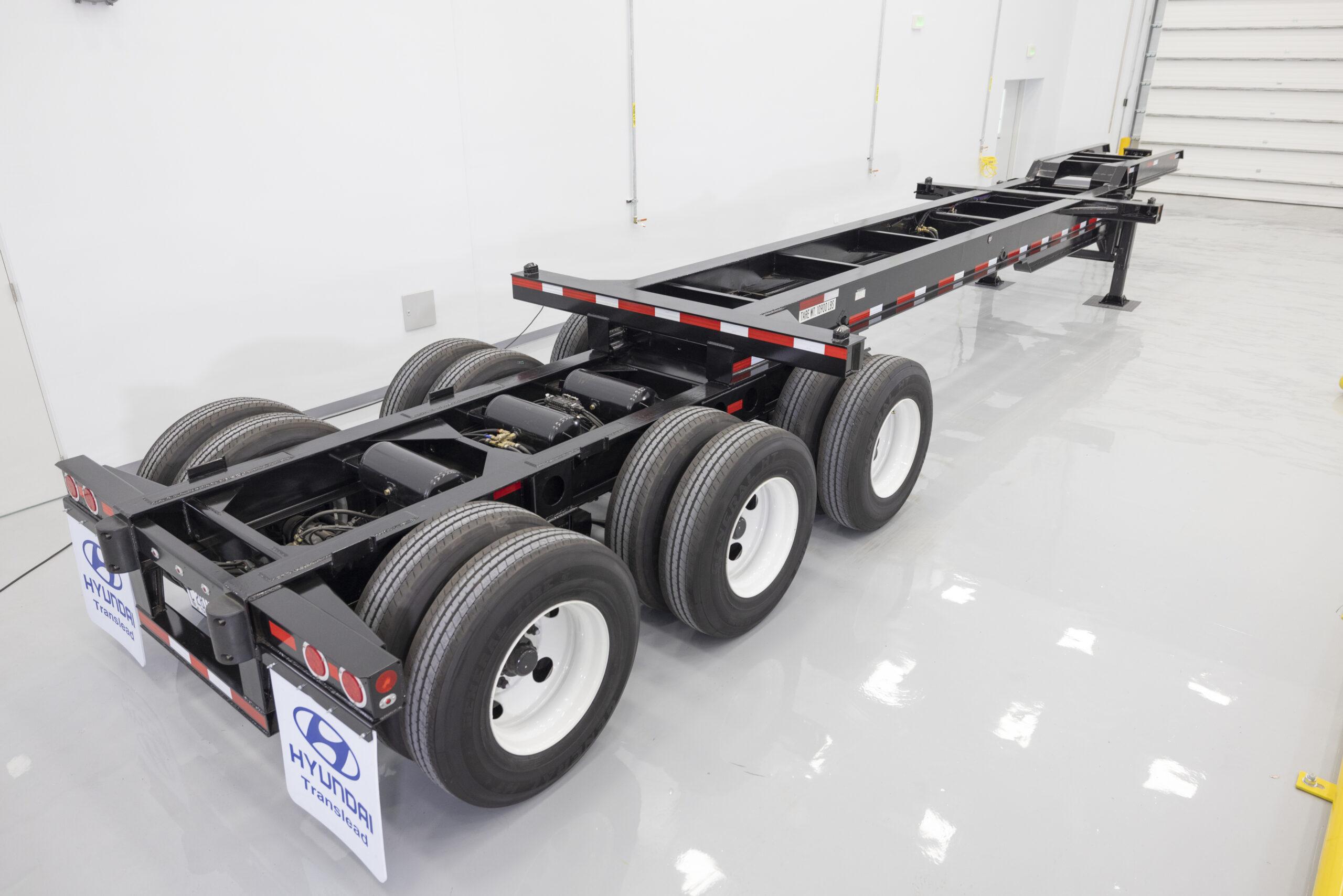

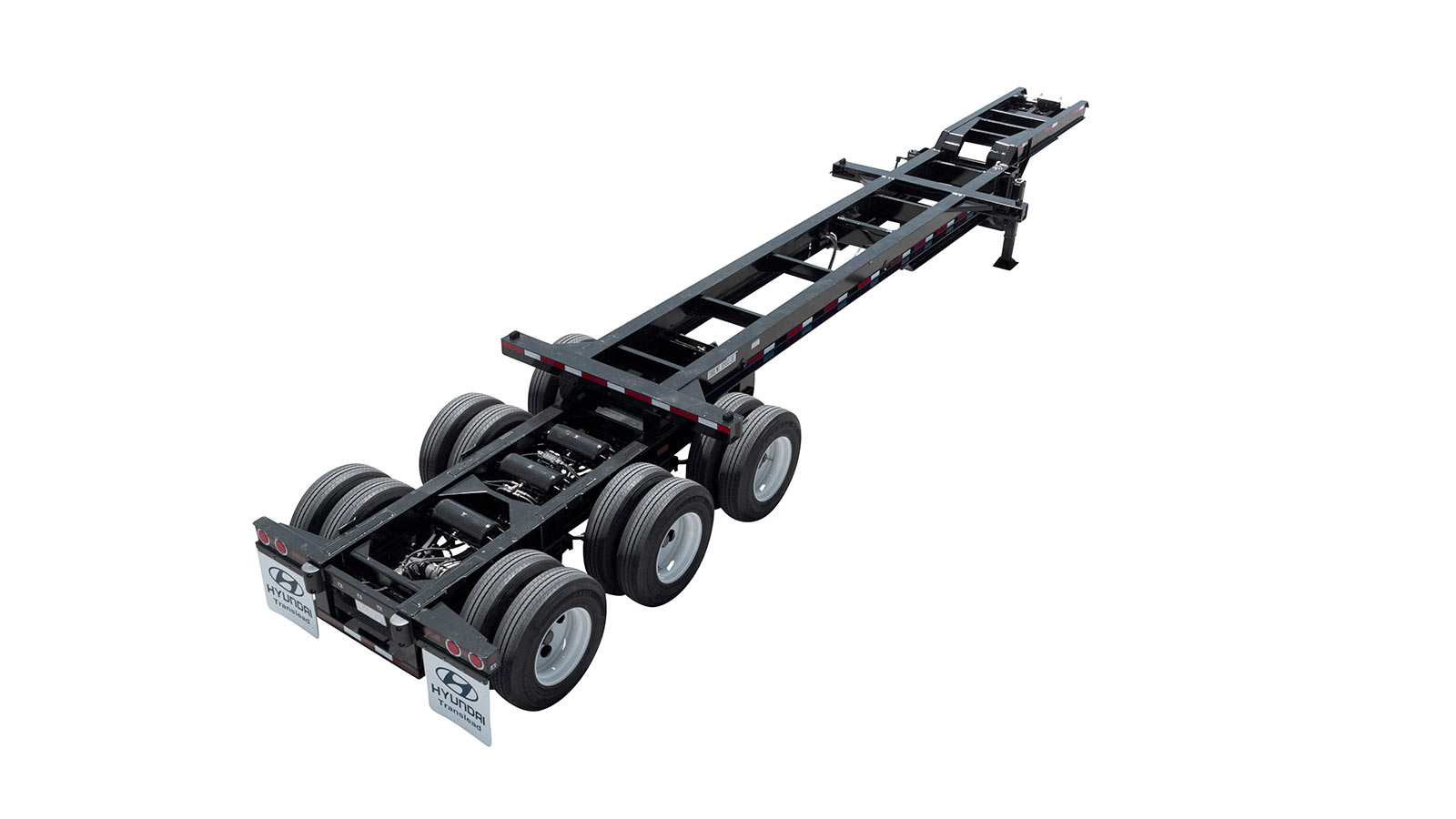

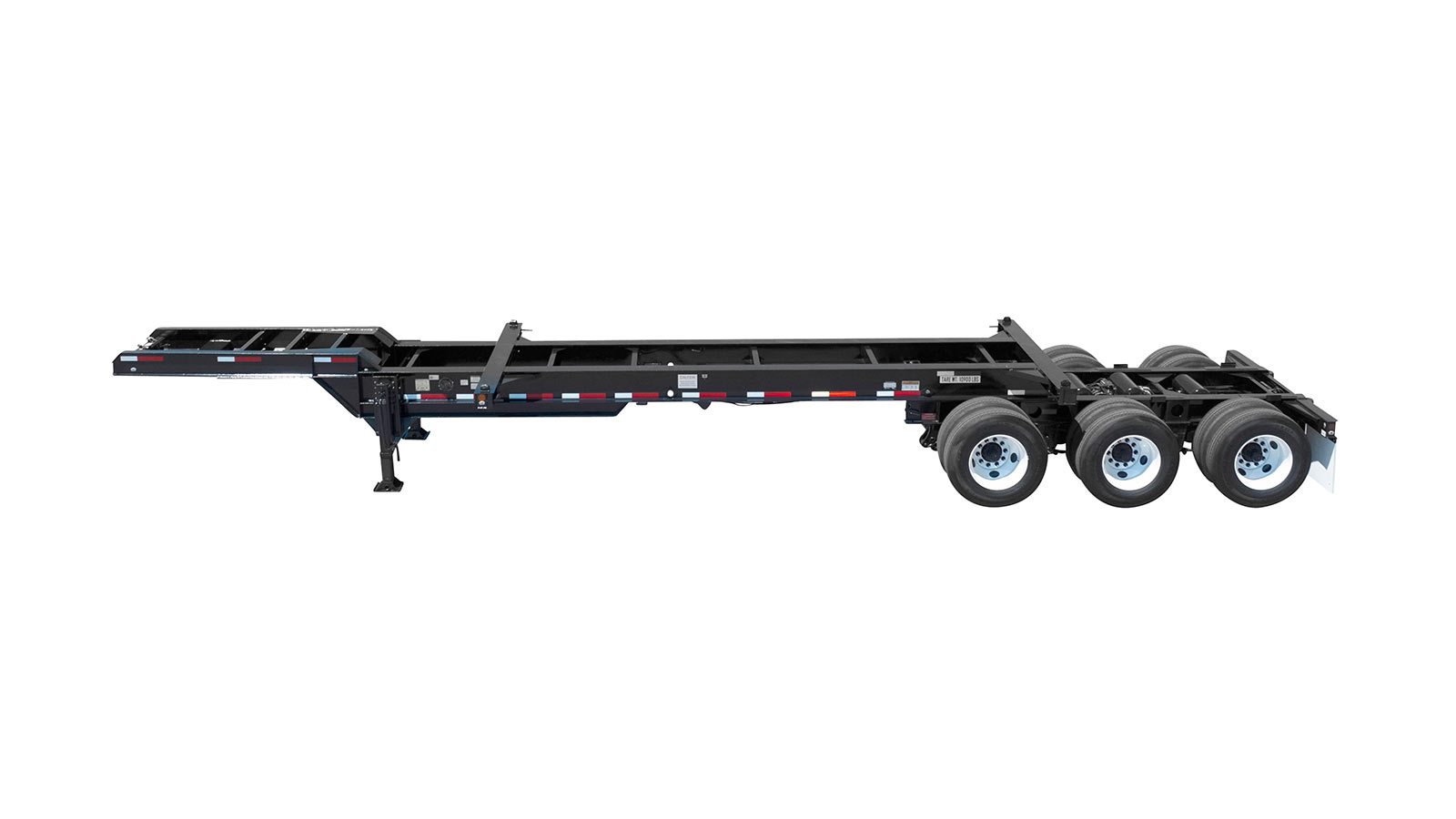

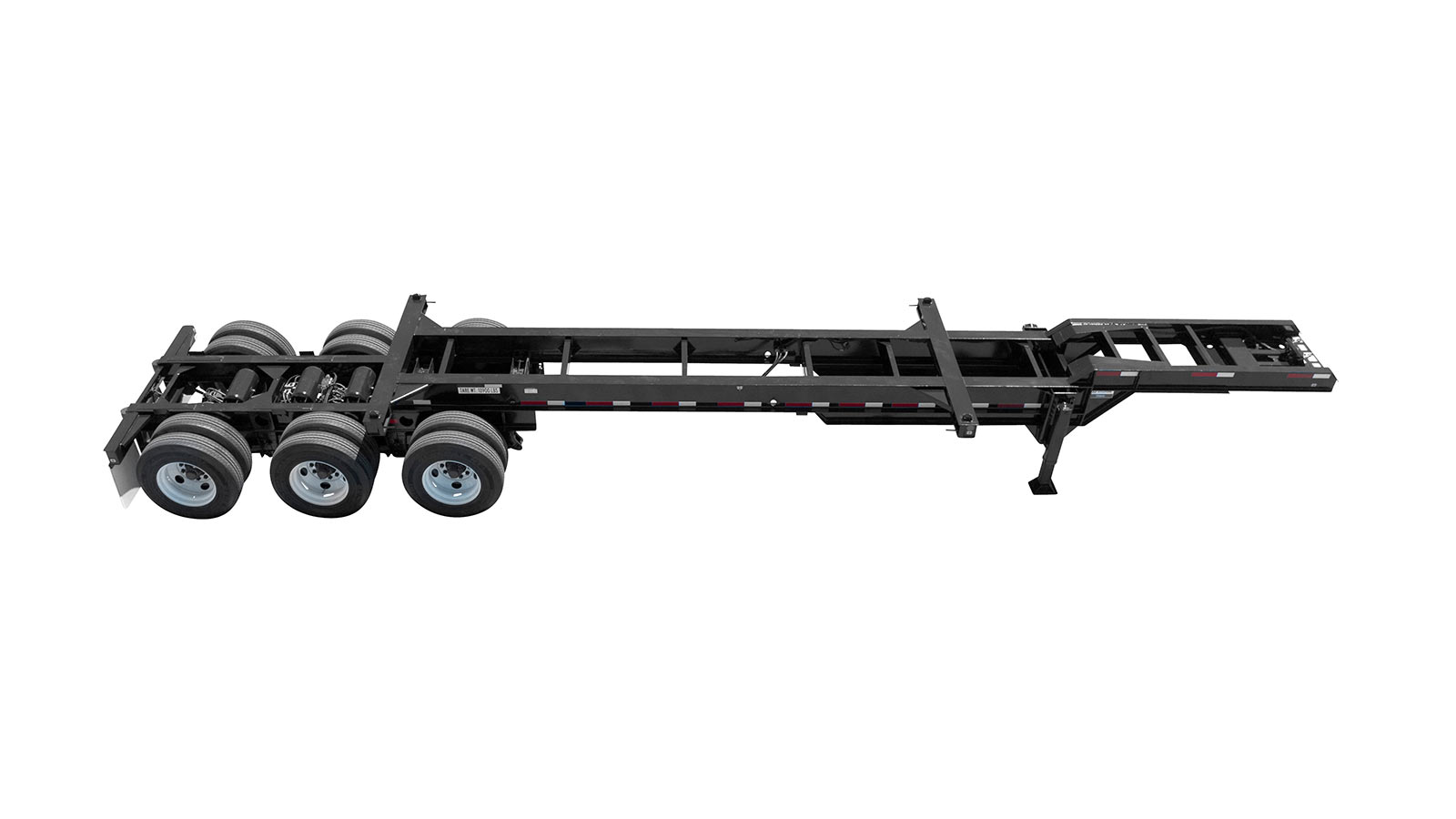

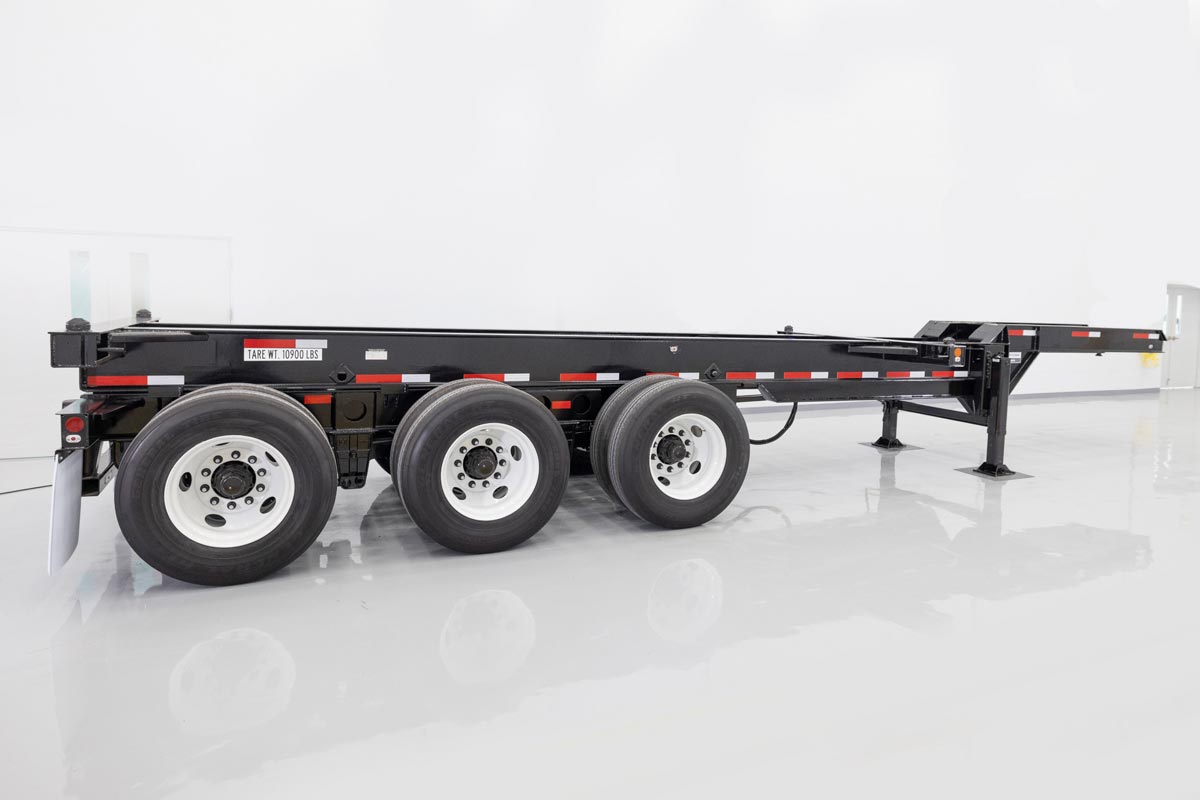

20′ Slider Tri-Axle Gallery
Hyundai Translead takes pride in quality, innovation, and manufacturing excellence that you can see on first impression. All Hyundai Translead chassis models are engineered for a long service life. The high-strength alloy steel construction provides strength and durability while reinforced bracing in the landing gear area showcases our commitment to excellence. Scroll through our photos to see features that deliver the quality you require.
Select the tabs above to view each specification category.
Product Specifications
The 20’ Slider Tri-Axle is reliable and sturdy. North America’s leading chassis manufacturer offers strength that lasts, variety for your specific needs, and versatile models that increase efficiency.
| Length | Closed: 33’ | Extended: 41’ 11-3/4” |
|---|---|---|
| Width | 96″ | |
| Height | 58-9/16″ | |
| Capacity | 52,910 lbs | |
| Tare Weight | 10,900 lbs | |
| GVWR | 63,810 lbs | |
Select the tabs above to view each specification category.
Body Construction
Built in our state-of-the-art manufacturing facility the 20′ Slider Tri-Axle is made stronger and more efficient to help reduce costs and meet your specific intermodal needs.
| Main Beam | High tensile steel, hot rolled 14″ x 38 lbs/ft H-beam |
|---|---|
| Gooseneck | High tensile steel, hot rolled 10” x 19 lbs/ft H-beam |
| Crossmember | Fabricated channel |

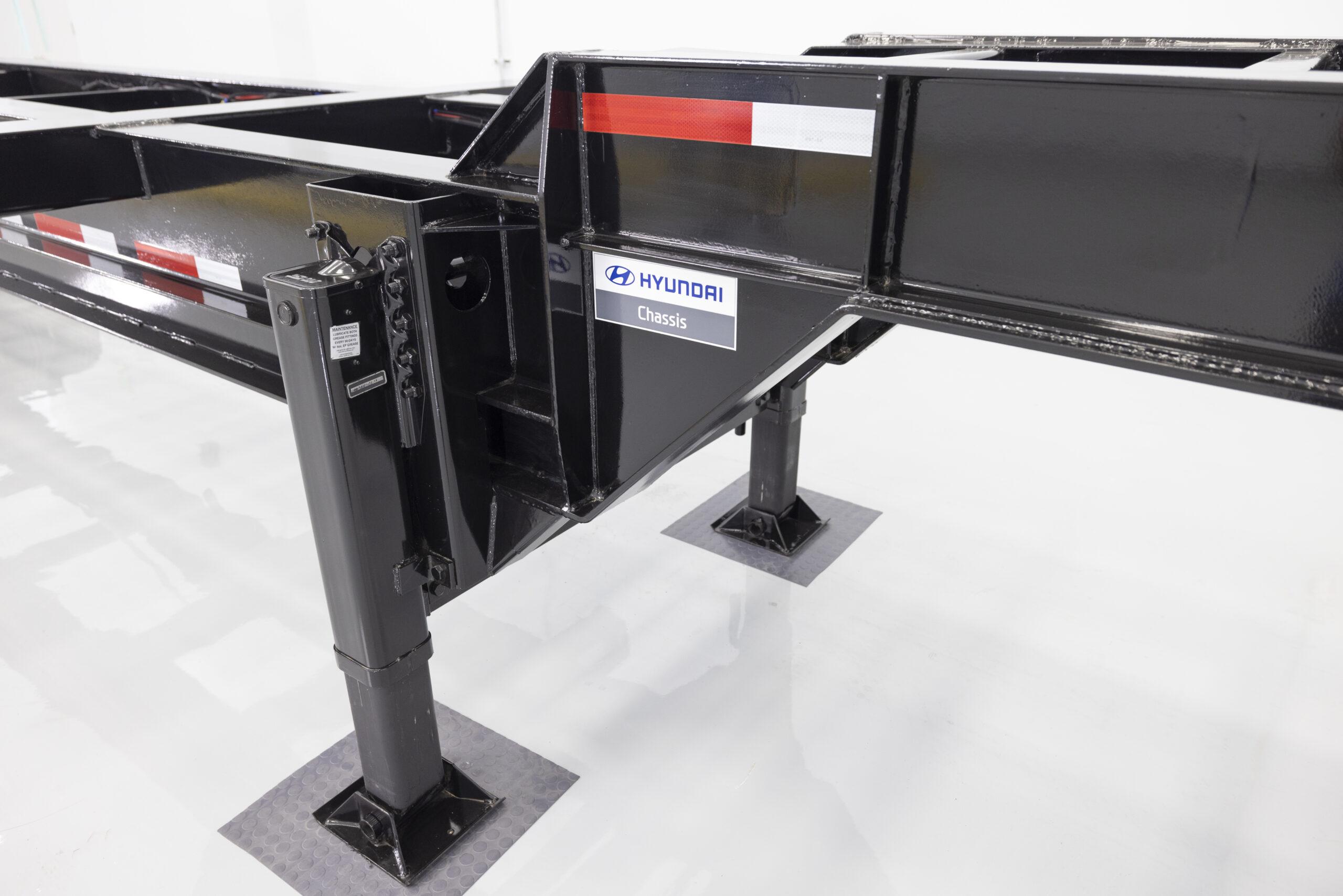

| Landing Gear | 55,000 lbs capacity with heavy-duty low profile sand shoe |

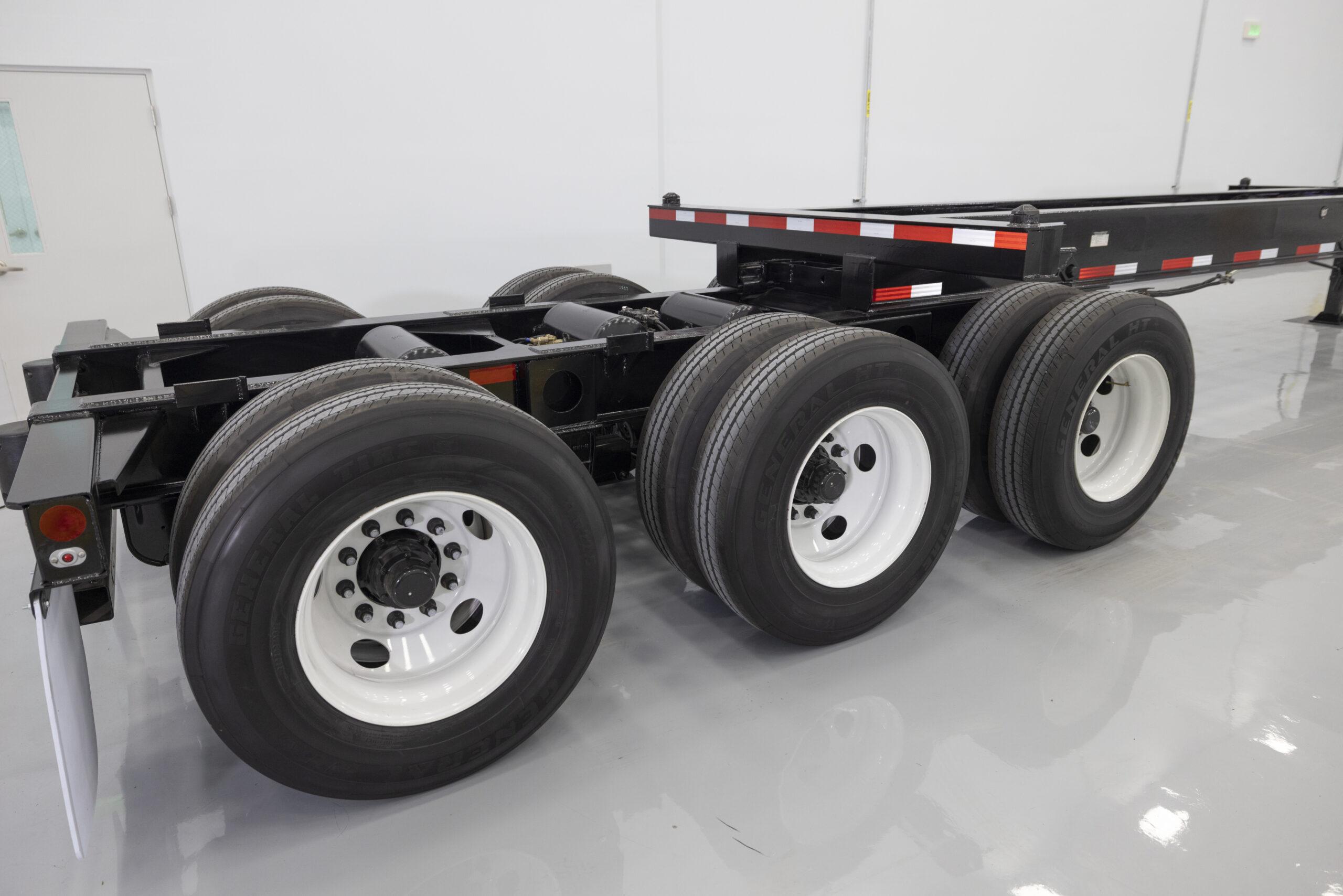

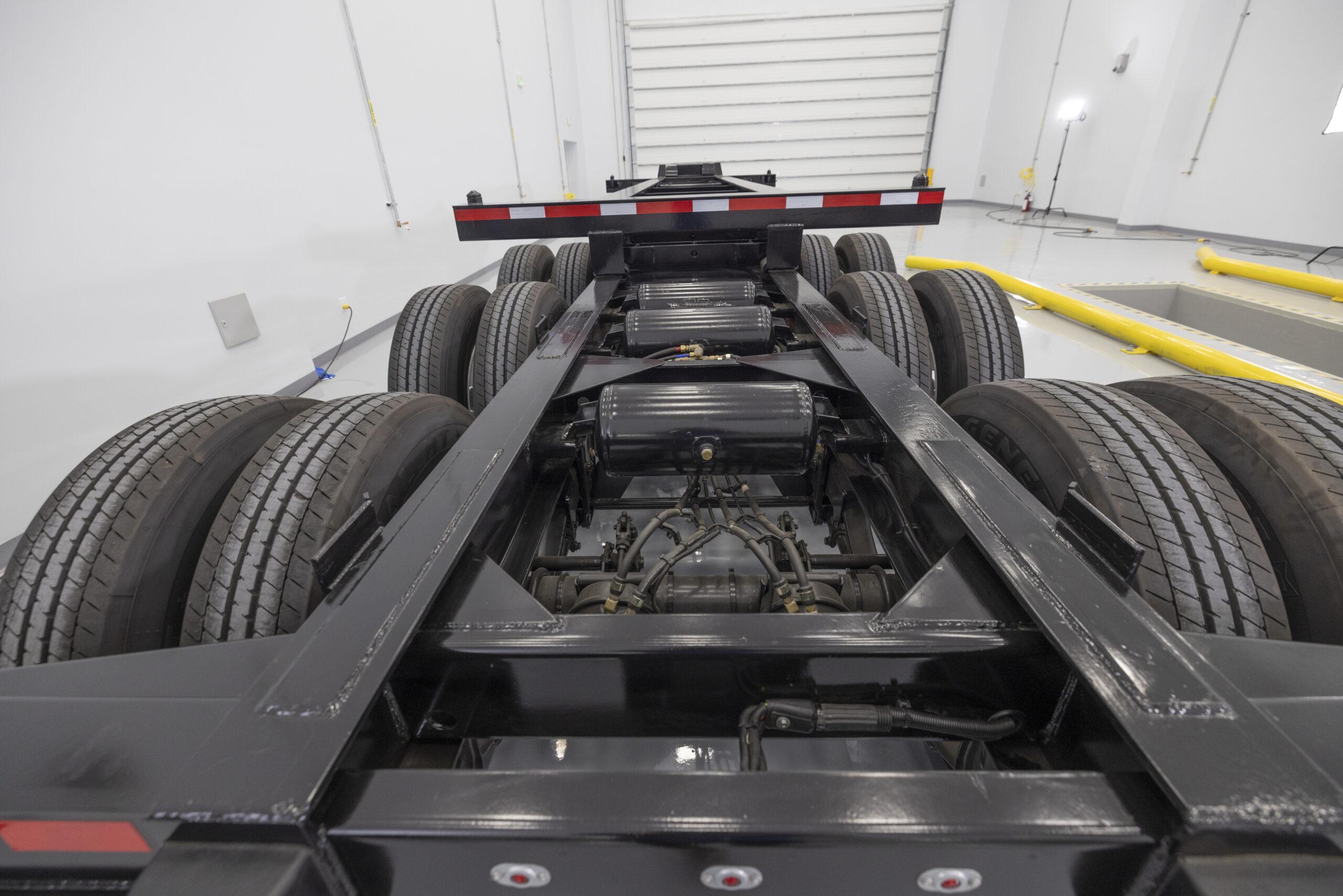

| Suspension | Hutchens underslung spring hangers with three leaf springs |

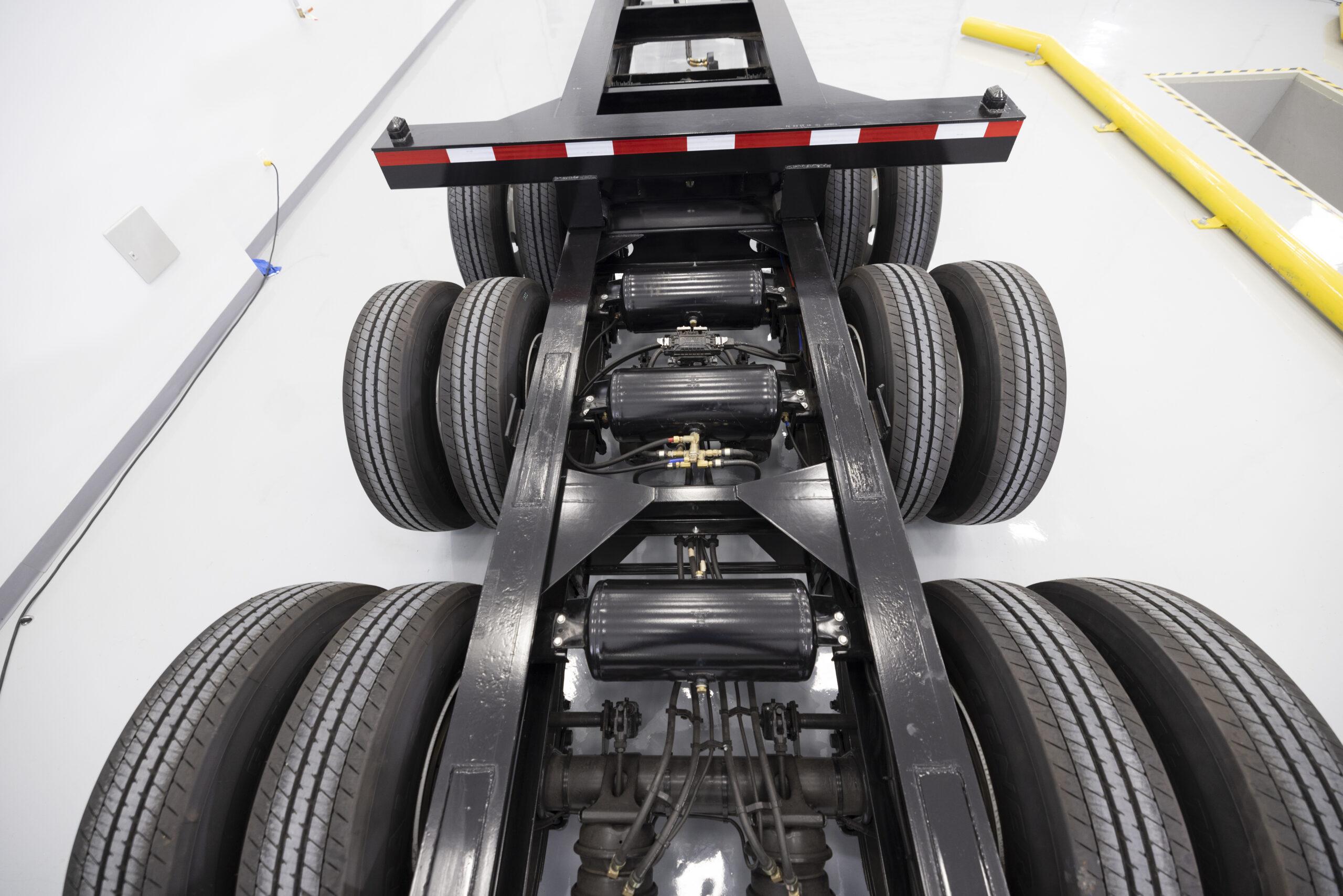

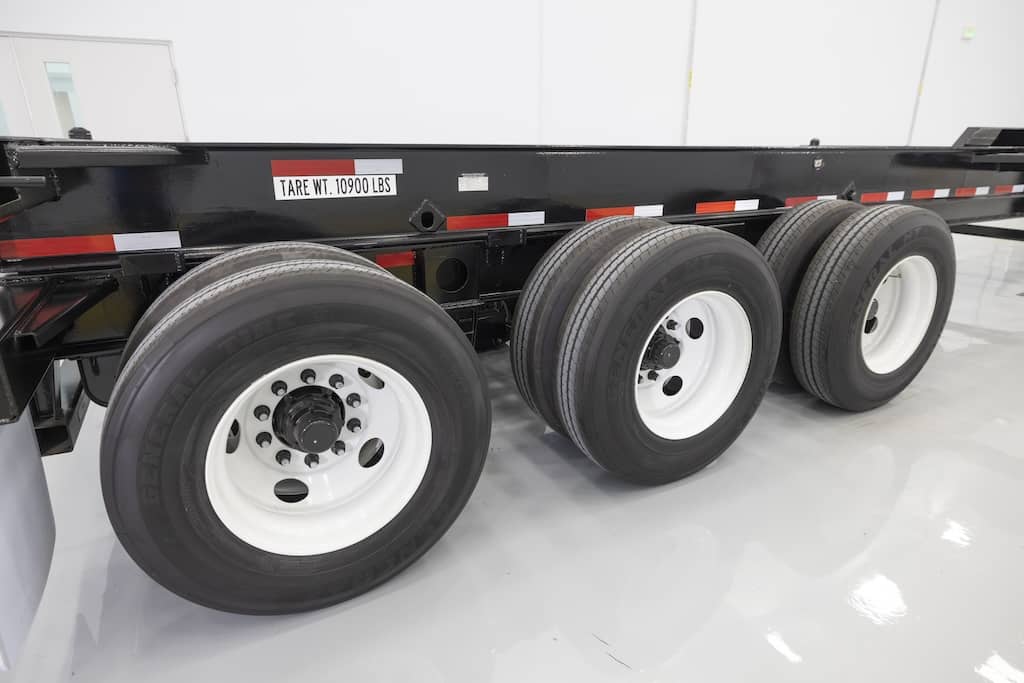

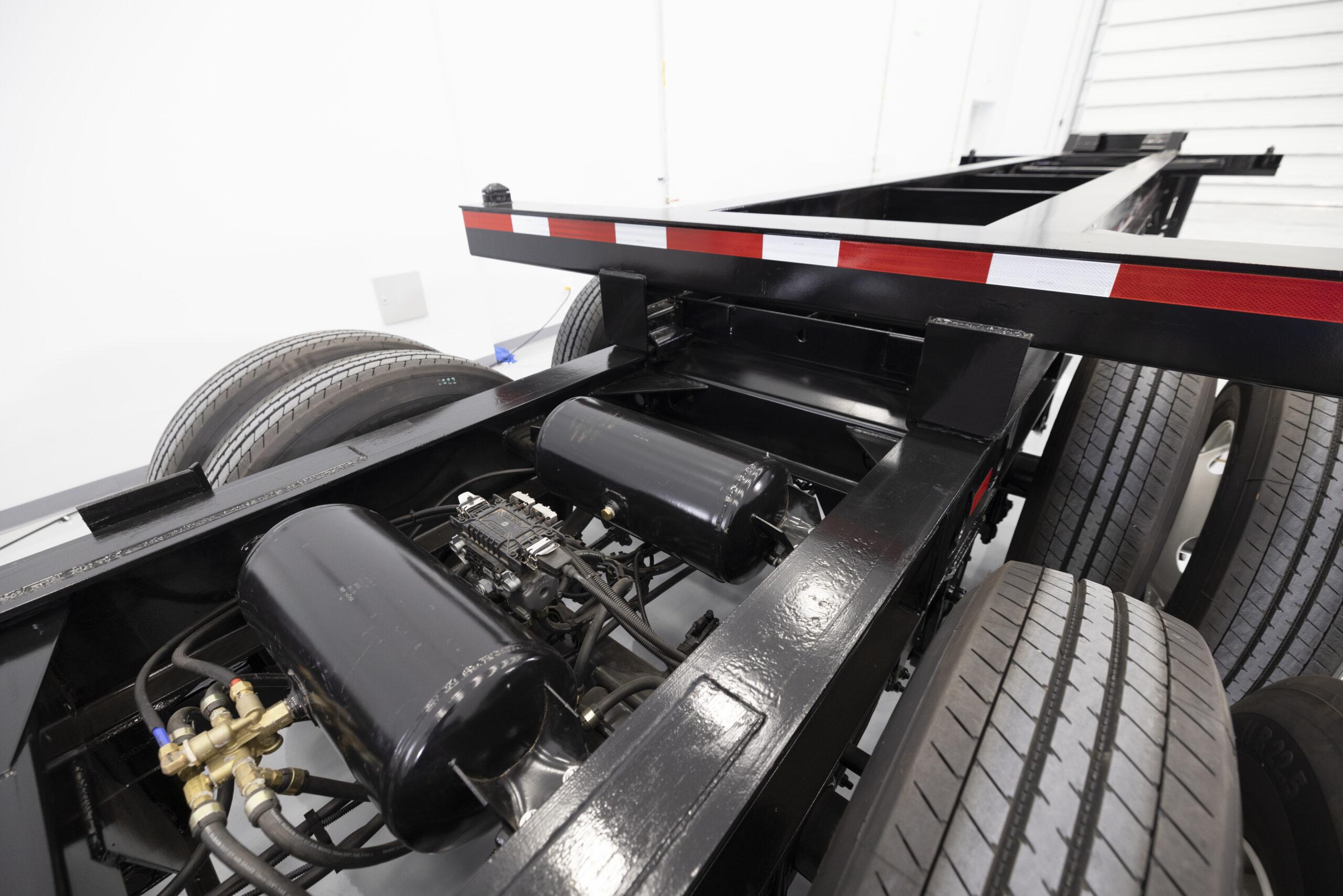

| Axles | 5″ round, 22,500 lbs rating, 71-1/2″ track with 16-1/2″ x 7” non-asbestos brake lining |

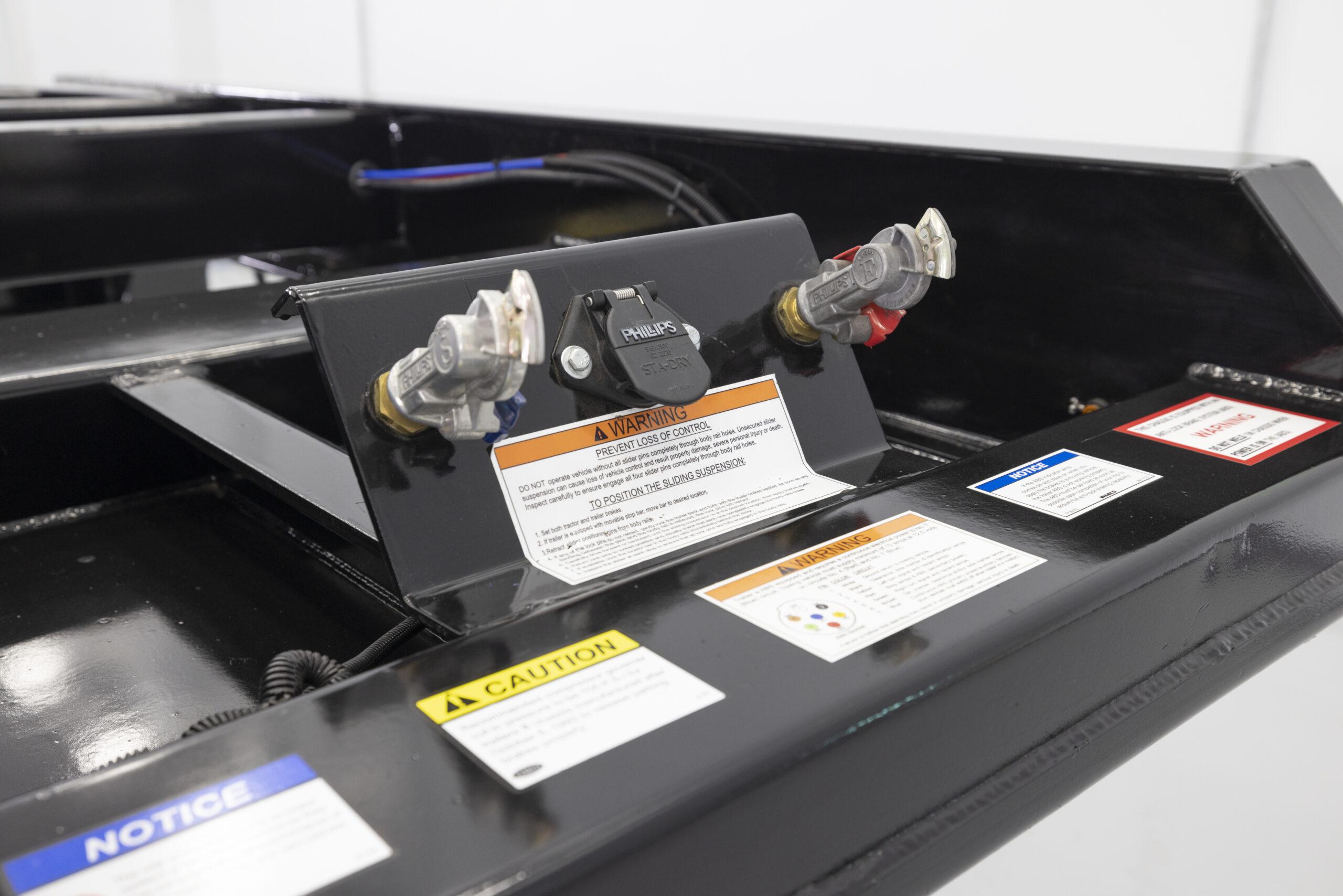

| Lights and Wiring | 12 volt sealed system with molded connectors to fit sealed LED lamps |
Difference Makers
Innovative features that elevate the 20′ Slider Tri-Axle
Explore why and how this Hyundai Translead chassis is more durable and versatile for your needs.
Manufacturing & Materials
Hyundai Translead chassis are built in our state-of-the-art manufacturing facility with top-notch surface preparation, advanced corrosion protection, and highly automated running gear assembly.
Customizable Options
Our chassis can be made to multiple length configurations to meet your intermodal needs.
Durability
Structure and surfaces are hardened and protected against harsh elements and damage, including wear and tear from vehicles, docks, yards, and containers.
Longevity
Hyundai Translead builds chassis for longer service life, reducing total cost of ownership with longevity-focused features and warranty.
Hot-Dipped Galvanization
Hyundai Translead offers hot-dipped galvanization of the complete chassis frame and components as an enhanced option to further protect against corrosion.
High-Strength Alloy Steel Construction
Hyundai Translead chassis are constructed with high-strength alloy steel for extra strength and durability.

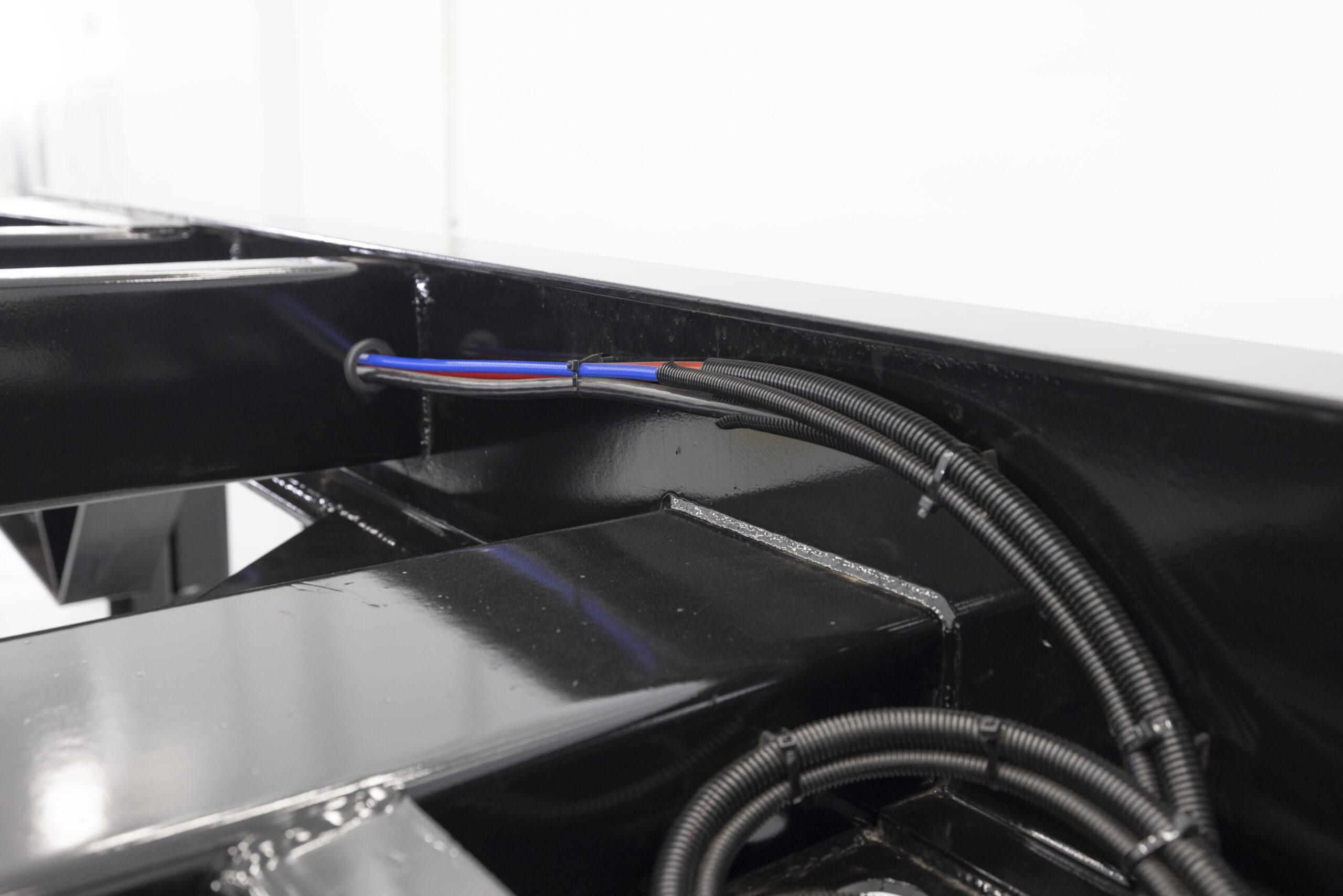

Sealed Wiring Harness with Internal Ground
Air and electrical lines protected with automotive wire loom for optimal wire protection.
