Extended Length
40′ 9-1/2″
Exterior Width
96″
Exterior Height
59″
Capacity (Lbs)
20′ – 58,800
40′ – 66,400
GVWR (Lbs)
66,400
Tare Weight
9,400 lbs

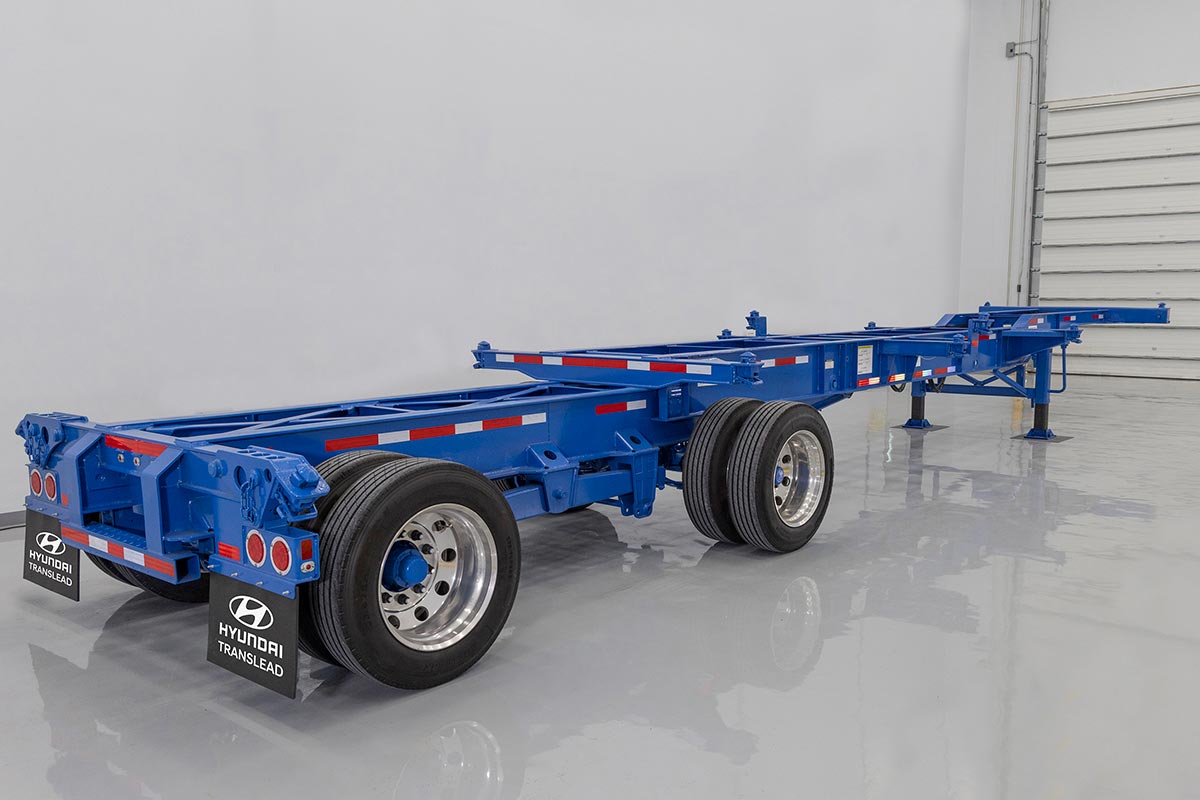

20′/40′ Tandem Spread Axle
Offering the ability to carry multiple types of containers, this chassis works in multiple configurations. It carries either one 40′ container, one 20′ container, or two empty 20′ containers. 109″ spread axle provides increased capacity over standard axle spacing.
Extended Length
40′ 9-1/2″
Exterior Width
96″
Exterior Height
59″
Capacity (Lbs)
20′ – 58,800
40′ – 66,400
GVWR
66,400 lbs
Tare Weight
9,400 lbs
20′/40′ Tandem Spread Axle Rotator
The Best From All Angles
See Hyundai Translead products come to life using our 360º Rotator feature. Click/hover on the icons to learn what makes Hyundai Trailers a step above the competition.
20′/40′ Tandem Spread Axle Gallery

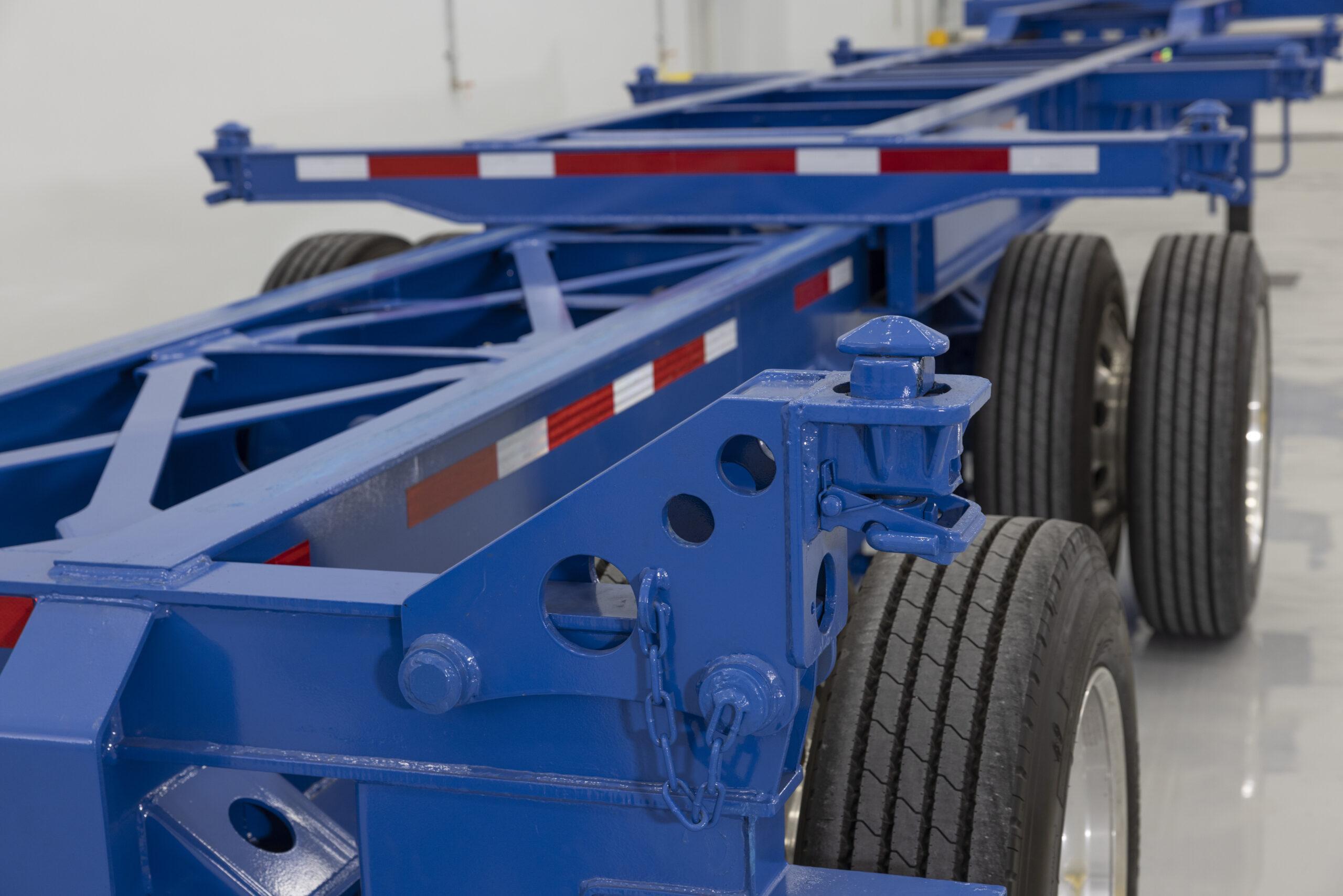

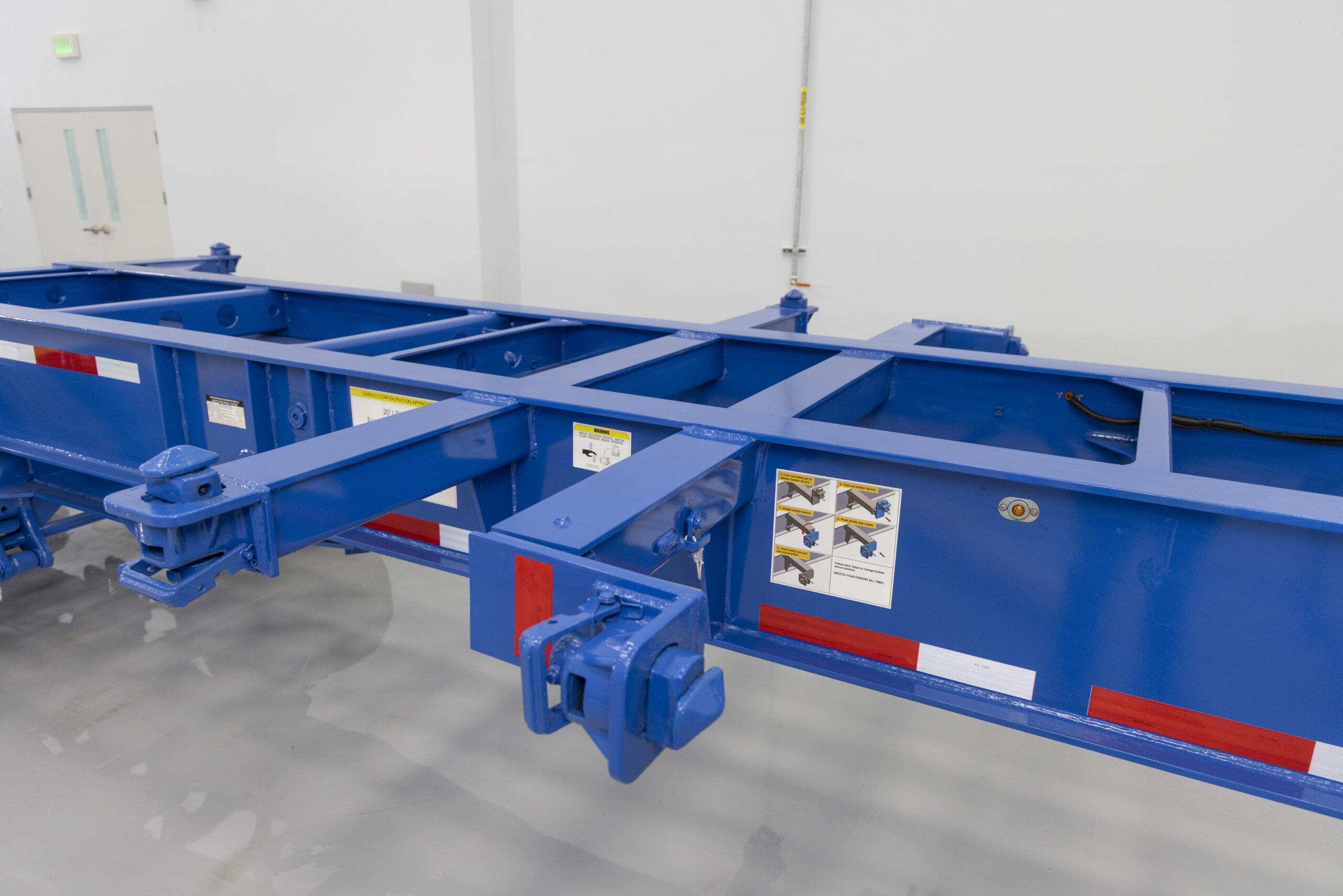

Hyundai Translead takes pride in quality, innovation, and manufacturing excellence that you can see on first impression. All Hyundai Translead chassis models are engineered for a long service life. The high-strength alloy steel construction provides strength and durability while reinforced bracing in the landing gear area showcases our commitment to excellence. Scroll through our photos to see features that deliver the quality you require.
Select the tabs above to view each specification category.
Product Specifications
Trailers designed to fit your needs. Not all goods are created equal so Hyundai has an ongoing commitment to customization and flexibility across the product lineup. All models can be built to spec so if there is an opportunity to better suit your needs our Dealer network is prepared to fit you to the perfect fit.
| Length | Closed: 31′ 11-3/4″ | Extended: 40′ 9-1/2″ |
|---|---|---|
| Width | 96″ | |
| Height | 59″ | |
| Capacity | 20′: 58,800 lbs | 40′: 66,400 lbs |
| Tare Weight | 9,400 lbs | |
| GVWR | 66,400 lbs | |
| AIAG Floor Rating | 59,710 lbs | |
Select the tabs above to view each specification category.
Body Construction
State-of-the-art manufacturing and our investment in engineering and materials deliver stronger and more efficient products, while also reducing costs.
| Main Beam | High tensile steel, hot rolled 12″ x 19 lbs/ft H-beam |
|---|---|
| Gooseneck | Fabricated “H” Beam with 5/8″ top & 1/2″ bottom flanges and 3/8″ web, all GR50 |

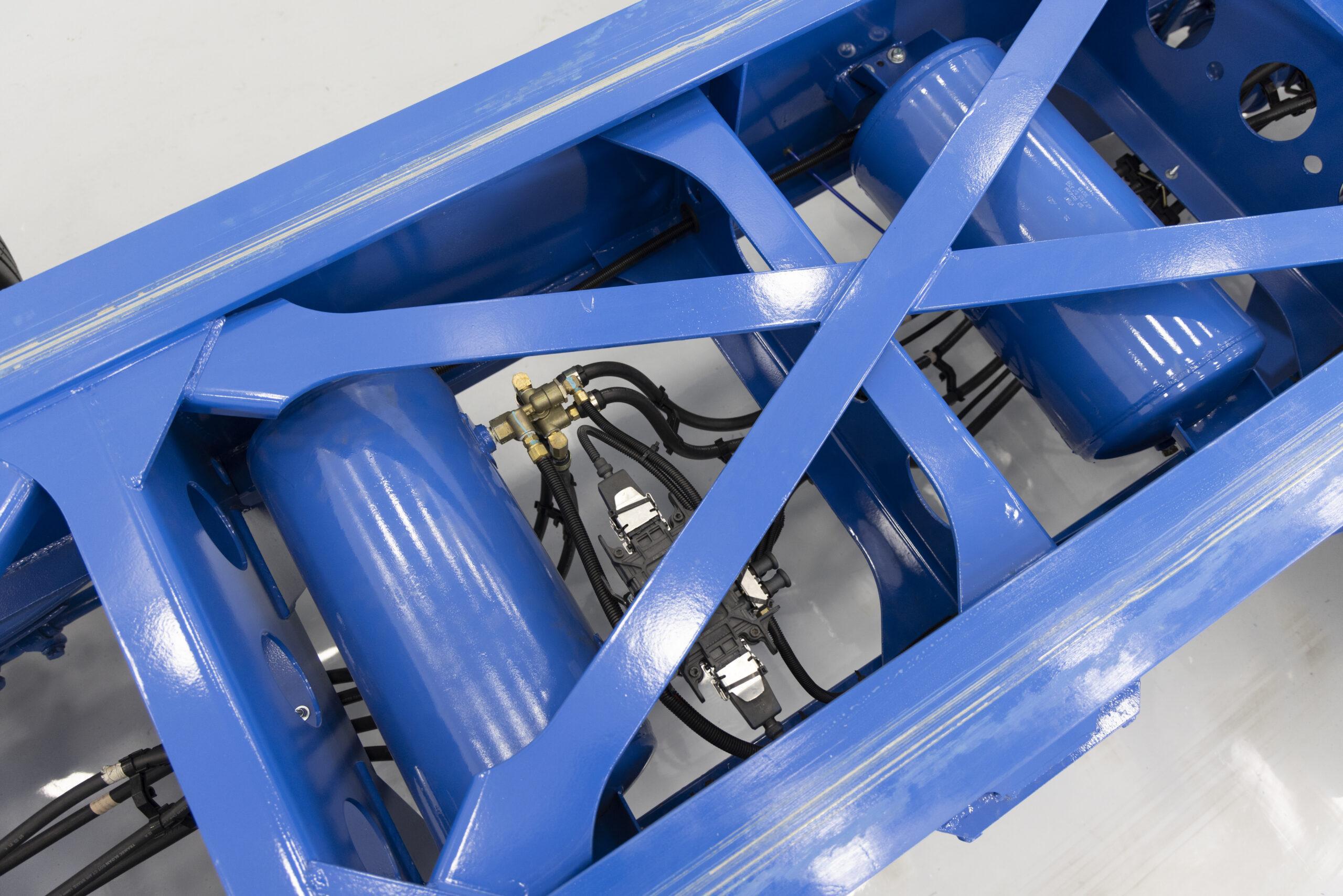

| Crossmember | Fabricated channel with gussets integrated |

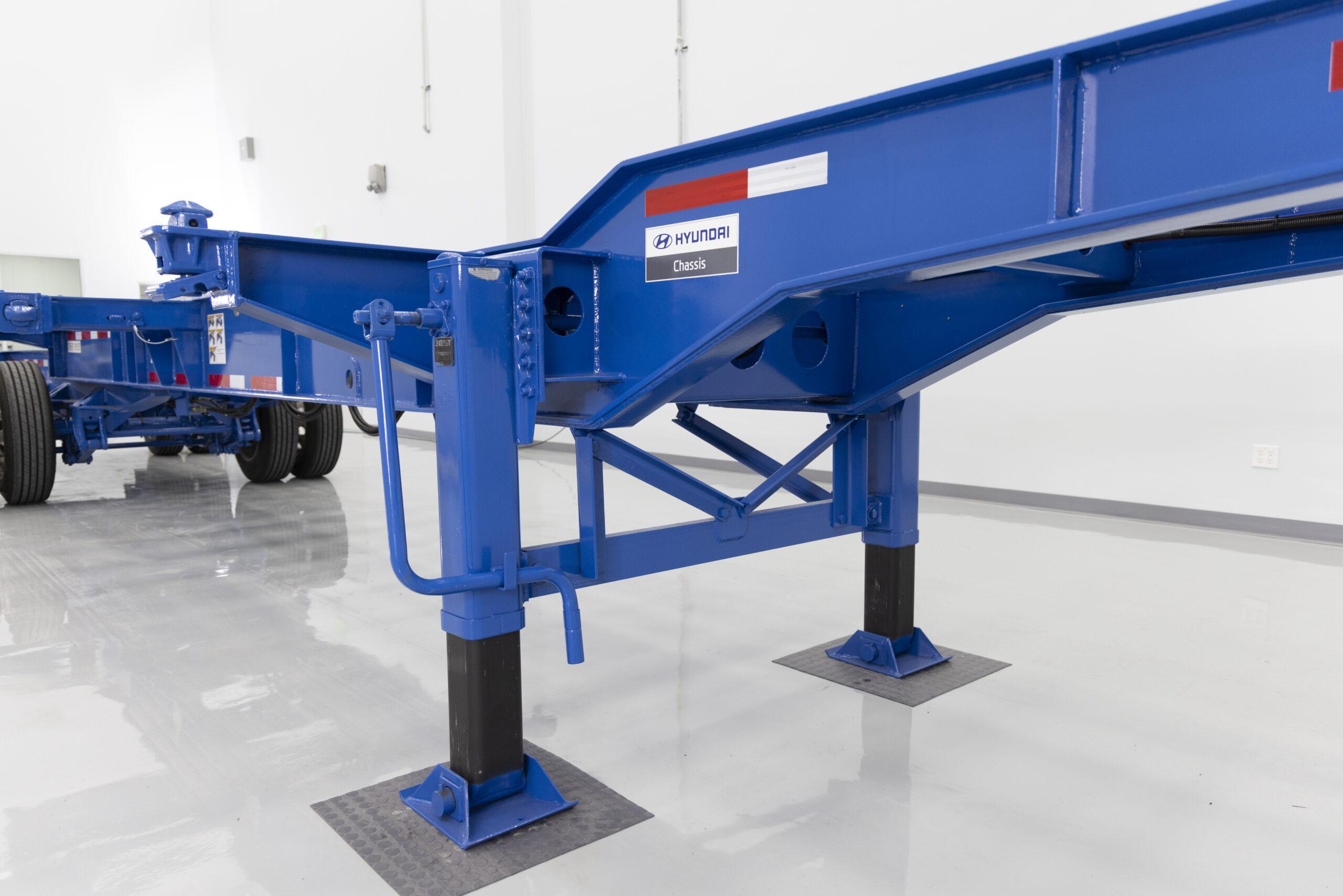

| Landing gear | 50,000 lbs capacity with heavy-duty low profile sand shoe (solid pin) |
| Suspension | Hutchens overslung spring hangers with three leaf springs |
| Axles | 5″ round, 22,500 lbs rating, 71-1/2″ track, 16-1/2″ x 7″ with non-asbestos brake lining |

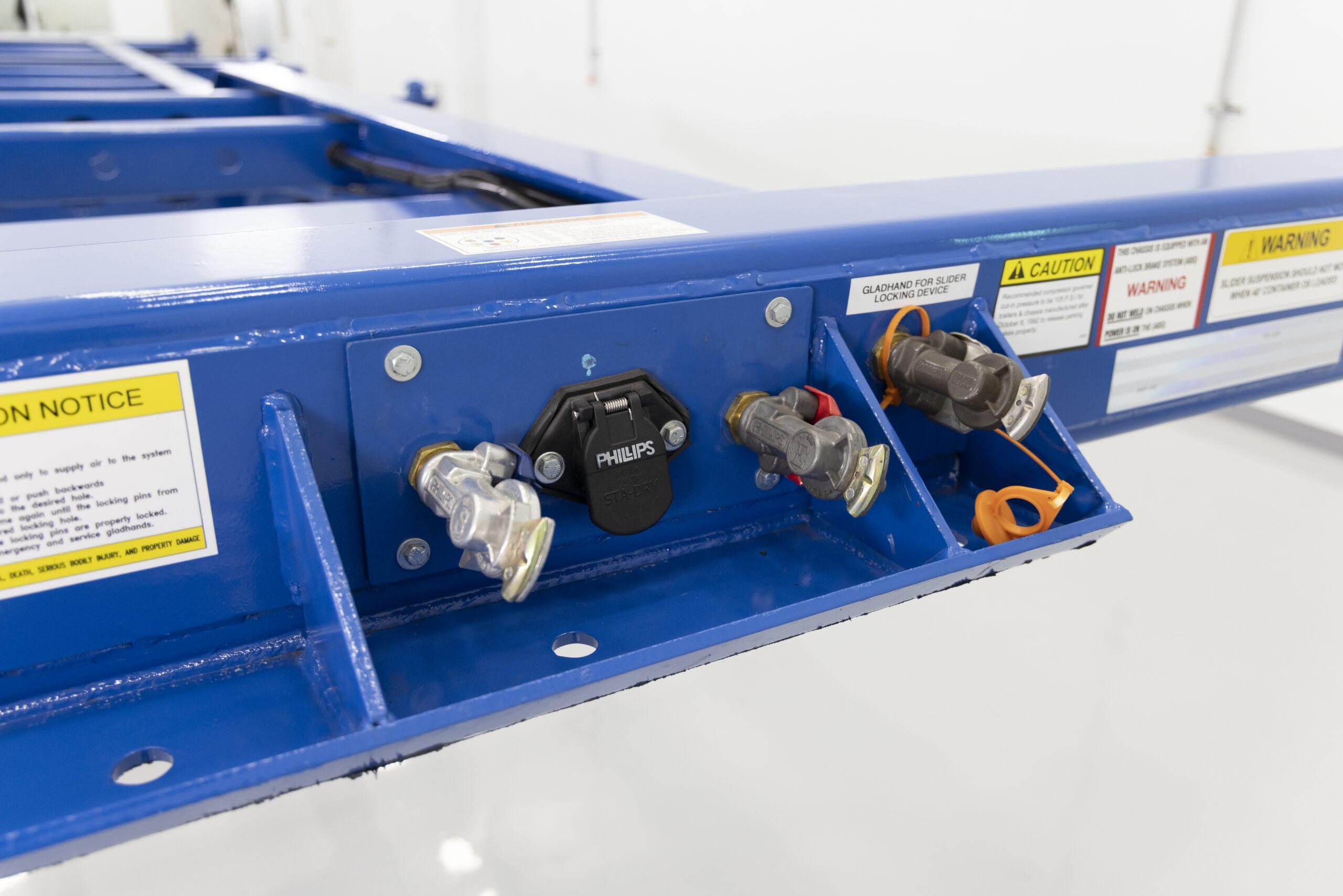

| Lights and Wiring | 12 volt sealed system with molded connectors to fit sealed LED lamps |
Difference Makers
Innovative features that elevate the 20′ Tandem Spread Axle
Explore why and how this Hyundai Translead chassis is more durable and more versatile for your needs.
Manufacturing & Materials
Hyundai Translead chassis are built in our state-of-the-art manufacturing facility with top-notch surface preparation, advanced corrosion protection, and highly automated running gear assembly.
Customizable Options
Our chassis can be customized and configured to exactly meet your intermodal needs.
Durability
Structure and surfaces are hardened and protected against harsh elements and damage, including wear and tear from vehicles, docks, yards, and containers.
Longevity
Hyundai Translead builds chassis for longer service life, reducing total cost of ownership with longevity-focused features and warranty.
Hot-Dipped Galvanization
Hyundai Translead is the only manufacturer to offer hot-dipped galvanizing of the complete chassis frame and components as an enhanced option to further protect against corrosion.
High-Strength Alloy Steel Construction
Hyundai Translead chassis are constructed with high-strength alloy steel for extra strength and durability.

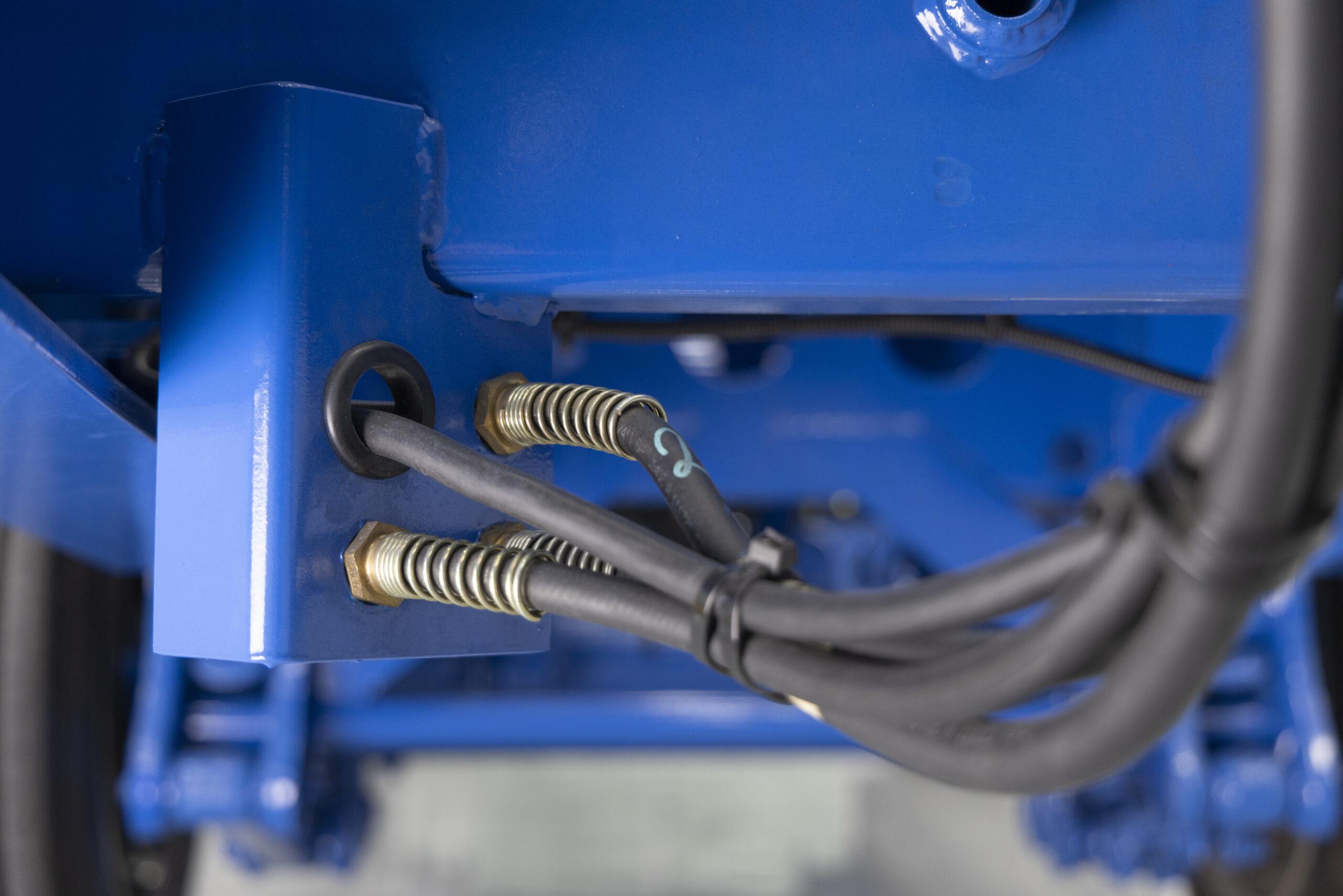

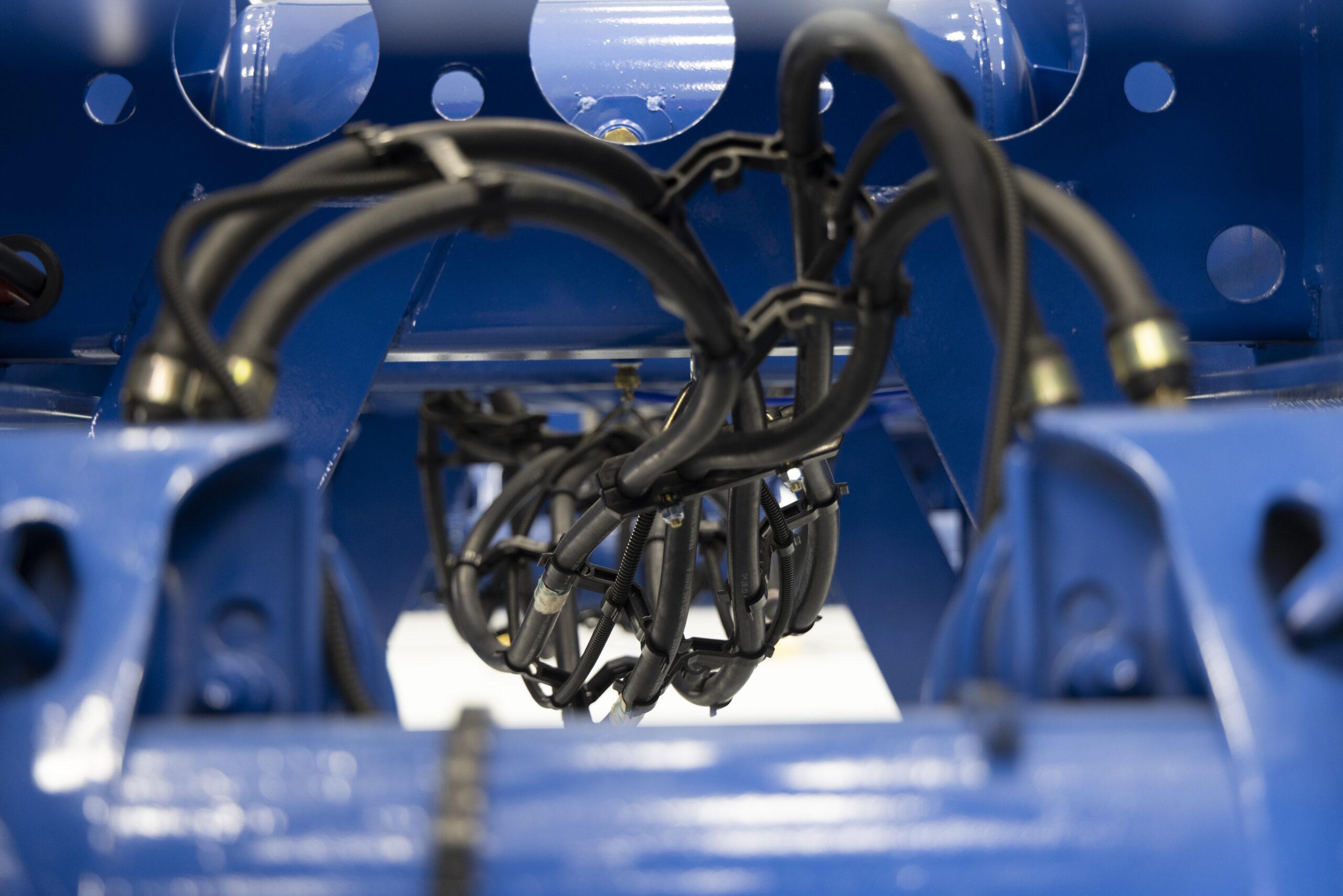

Sealed Wiring Harness with Integral Ground
Air and electrical lines are protected with automotive wire loom for optimal wire protection.
