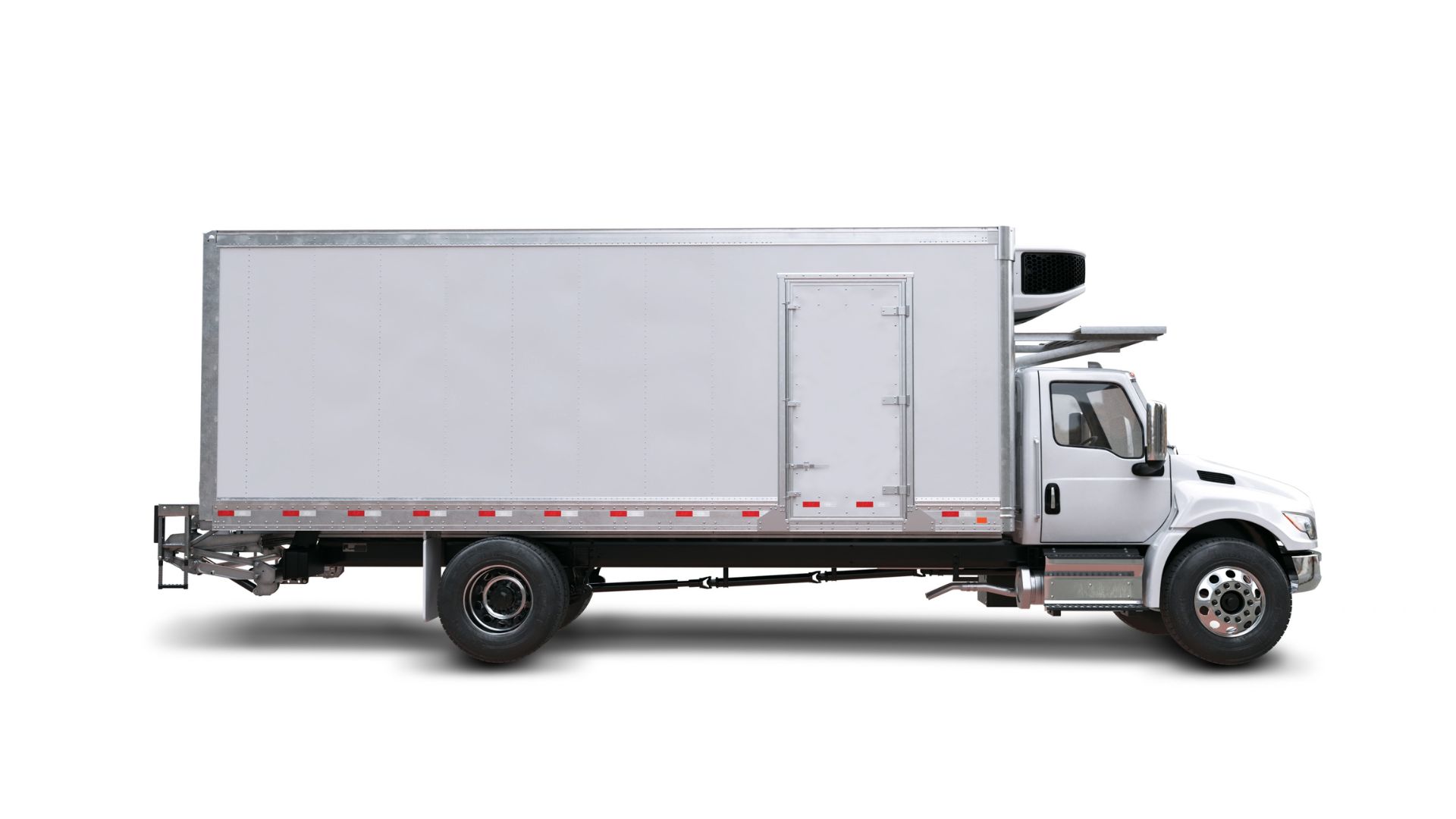

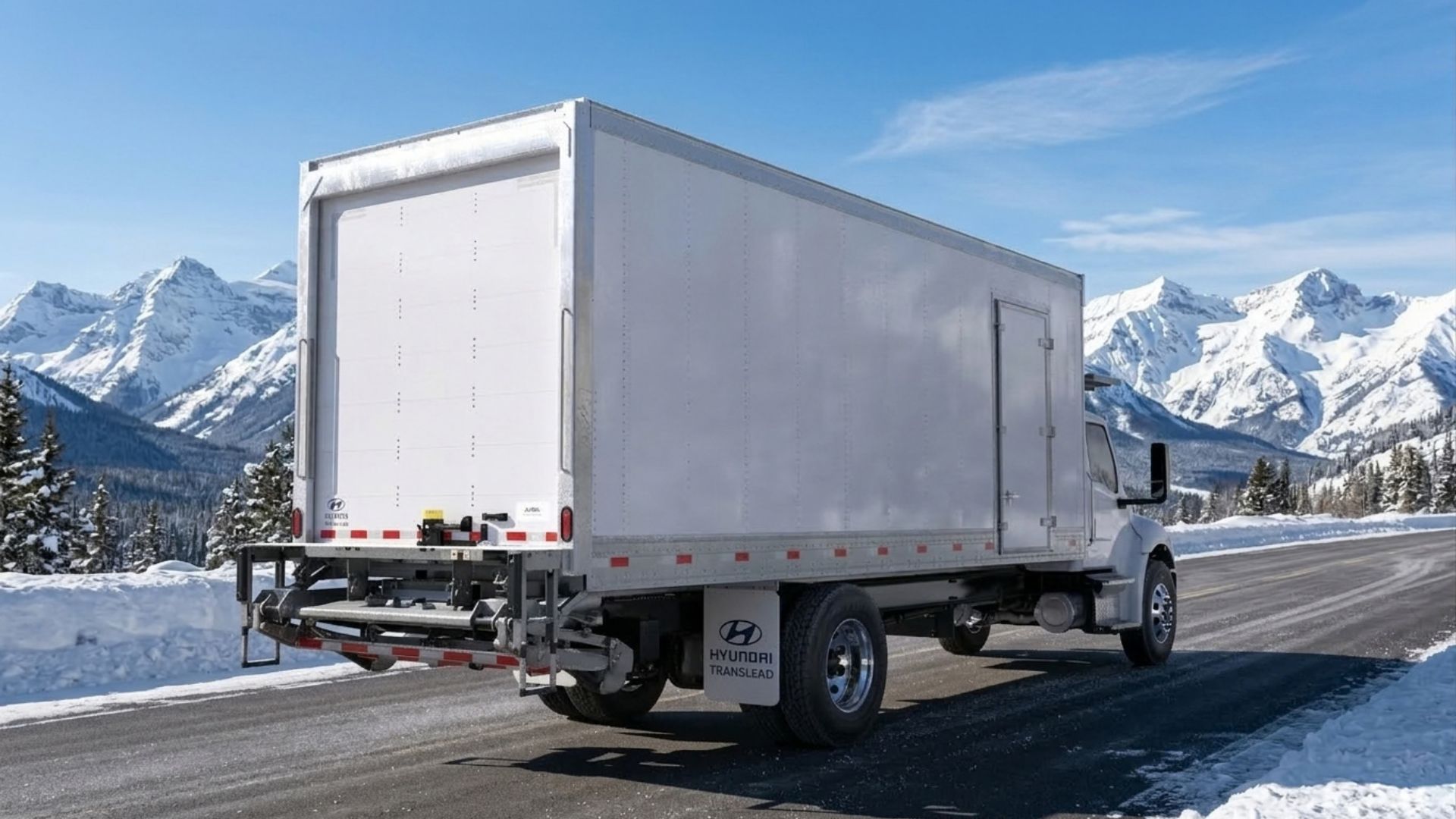

The Juneau Refrigerated Truck Body is engineered for enhanced thermal performance and optimized cargo capacity, protecting product quality, improving delivery efficiency, and simplifying logistics.
Juneau Photo Gallery
Juneau Photo Gallery
Select the tabs above to view each specification category.
Product Specifications
Juneau is built to deliver enhanced thermal performance, optimized cargo capacity, and simplified logistics through a flexible kit-delivery design.
| Standard Insulation | Advanced HT HANA Insulation | |
| Length | Exterior: 24’ Interior: 23’ 5-5/8” |
Exterior: 24’ Interior: 23’ 5-5/8” |
| Width | Exterior: 96” Interior: 89′ 1/2” |
Exterior: 96” Interior: 93′ 3/8” |
| Height | Exterior: 12’ 9” Interior: 95′ 1/2” |
Exterior: 12’ 9” Interior: 98′ 3/8” |
| Cubic Capacity |
1,393 ft³ |
1,497 ft³ |
Select the tabs above to view each specification category.
Body Construction
Juneau is built with high-quality components and supports wide range of configurable options.
| Standard Insulation | Advanced HT HANA Insulation | |
| Base | 4″ Insulation package | 4″ Insulation package with advance insulation layer |
| Floor | 1.34″ Extruded aluminum flat floor | 1.34″ Extruded aluminum flat floor |
| Side Sheets | 0.04″ Aluminum Prepainted White w/ natural color rivets | 0.04″ Aluminum Prepainted White w/ natural color rivets |
| Liner | – | Transcore 0.177″ |
| Side Stiffeners (Sidewall post) | 1.0″ Deep Extruded Aluminum “Z” Post (STD) | 1.0″ Deep Extruded Aluminum “Z” Post (STD) |
| Roof | 4″ Insulation package | 1.2″ Advance insulation and composite structural members |
| Roof Bow (Post) | 1″ Extruded Aluminum | 1.0″ Deep Pultruded Composite Roof Bow |
| Front Wall | 4″ Insulation package with an over cab maintenance platform | 4″ Insulation package with low profile top rail for maximum insulation |
| Rear Frame | Stainless steel rear frame with two grab handles | Stainless steel rear frame with two grab handles & prep’d for tuckaway liftgate |
| Sidewall | 3″ Insulation package | 1.2″ Advance insulation, low profile top rail |
| Rear Door | Roll-up Door | Roll-up Door |
| Scuff Band | 22″ Scuff Band | 22″ Scuffband |
| TRU | Single temperature | Single temp TRU |
| Front Post | Integrated steps with insect grab handles | – |
| Bottom Rail | Two piece side bottom rail for easy kit installation | Two piece side bottom rail for easy kit installation |
| Crossmembers | Hot-dipped galvanized crossmembers | Hot-dipped galvanized crossmembers |
Select the tabs above to view each specification category.
Optional Features
Browse our advanced options for enhancing your product.

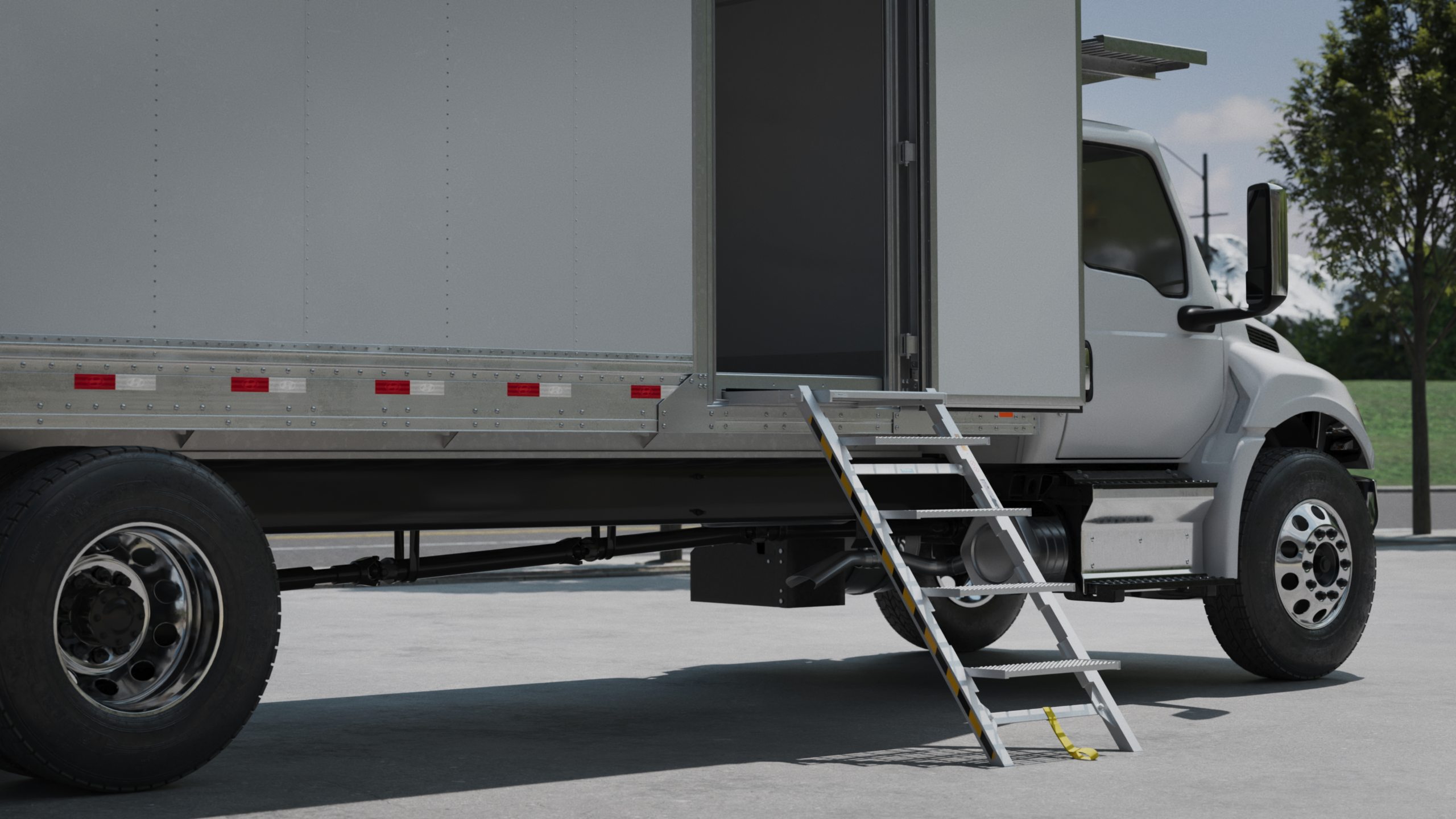

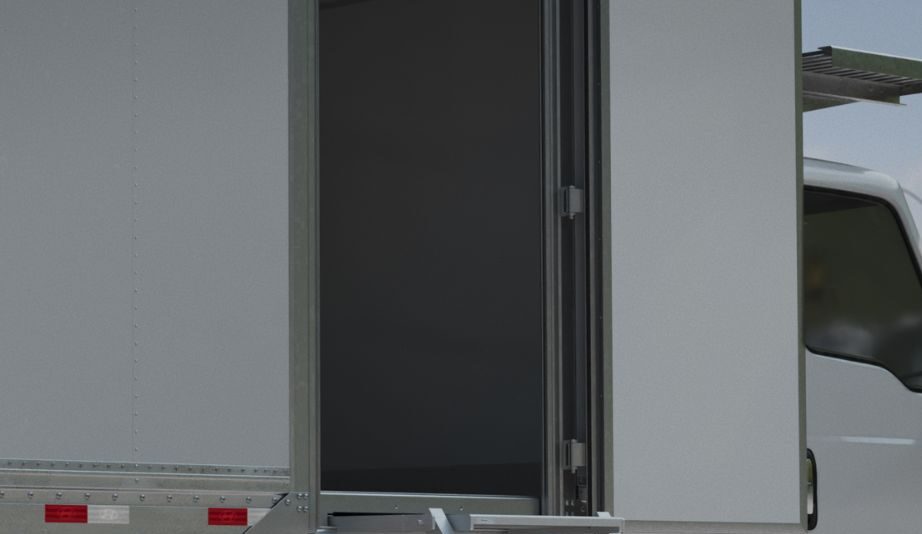

Side Door with Integrated Sidestep
Side door with hot-dipped galvanized side door frame.

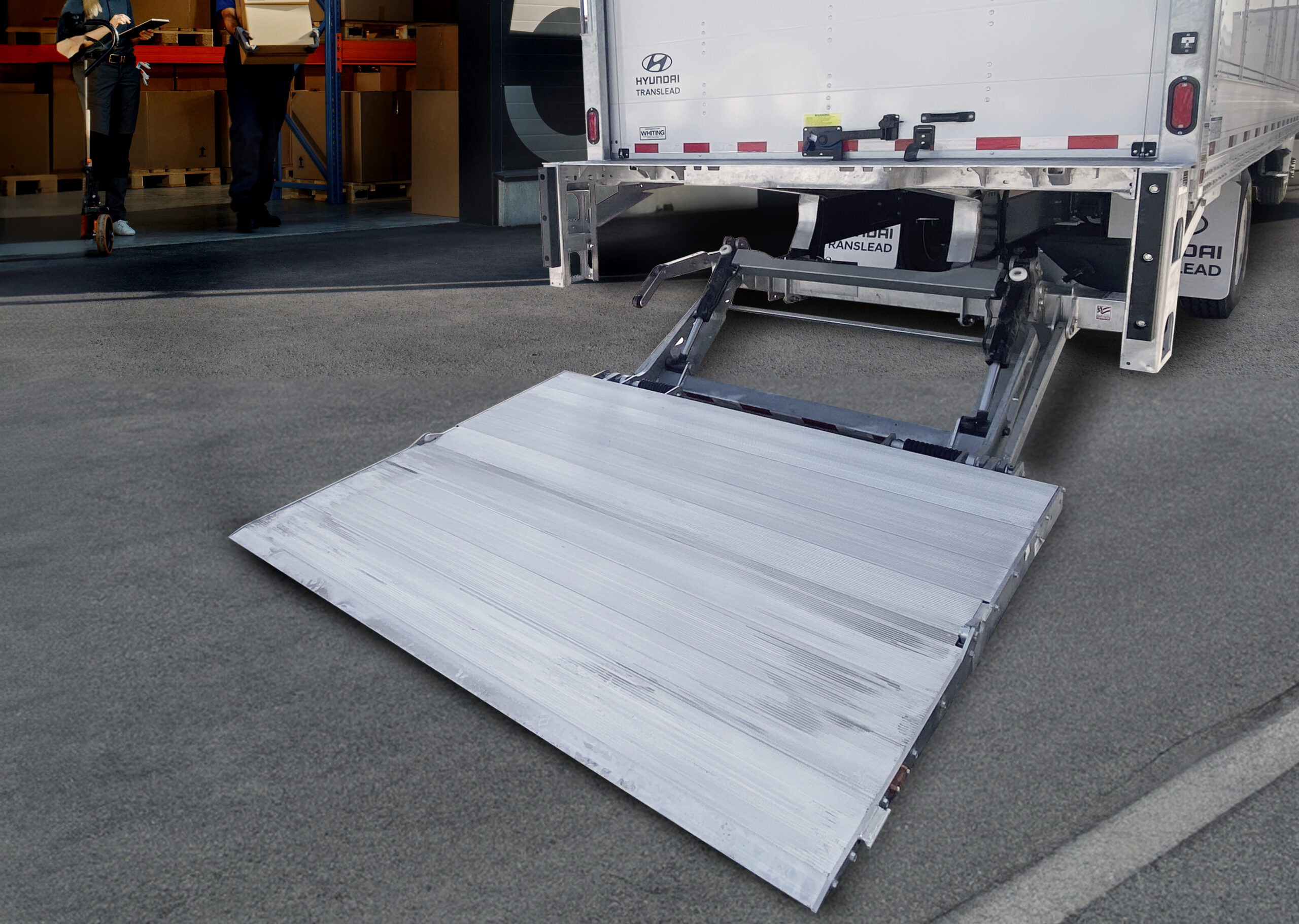

Tuck-Away Liftgate with Integrated Ramp
Maxon GPTWR3 tuck-away liftgate.
Advanced Insulation Package
Advanced insulation in sidewalls,
roof & sidewalls.

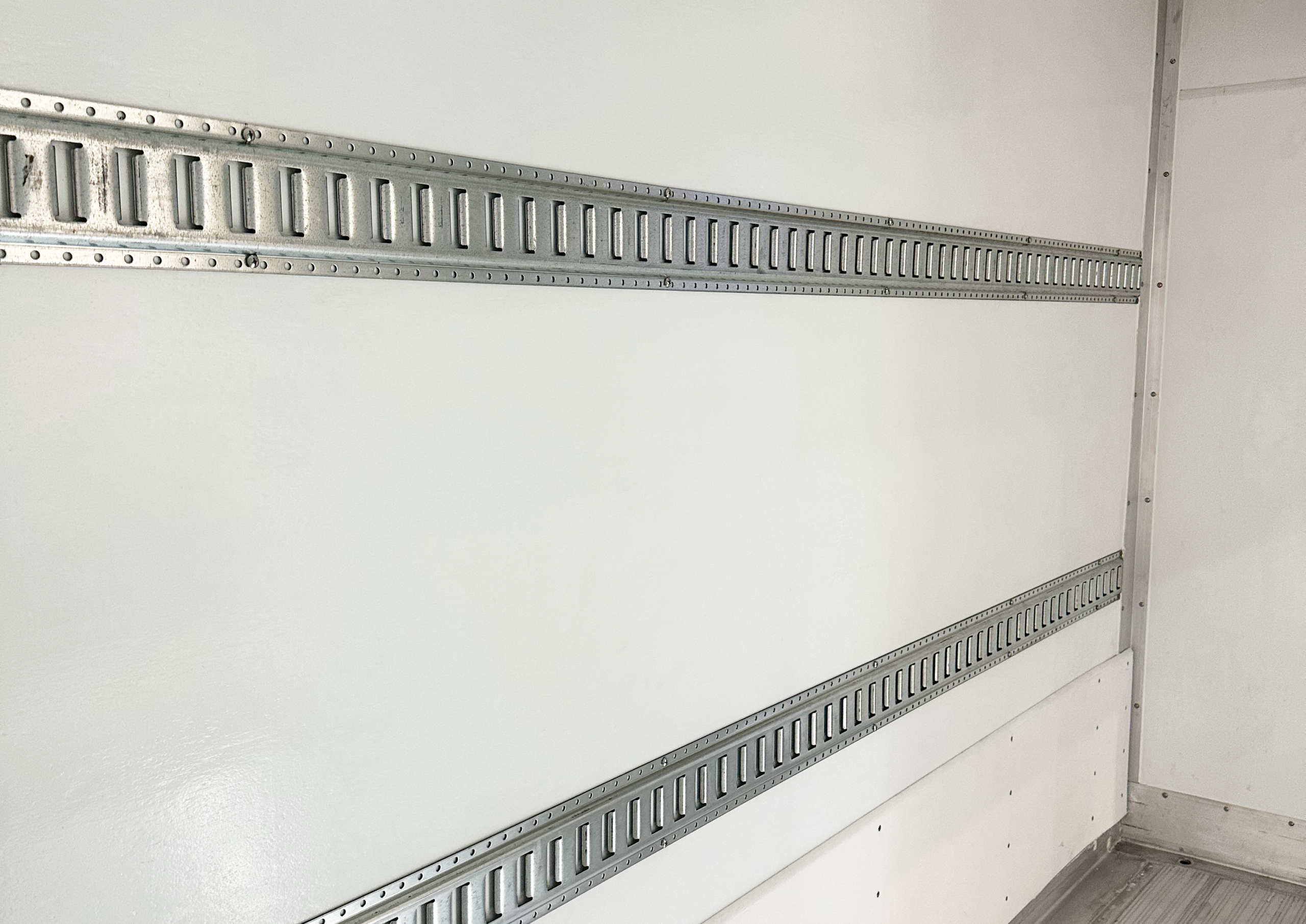

Composite Structural Members
Composite structural members including posts and roof bows.

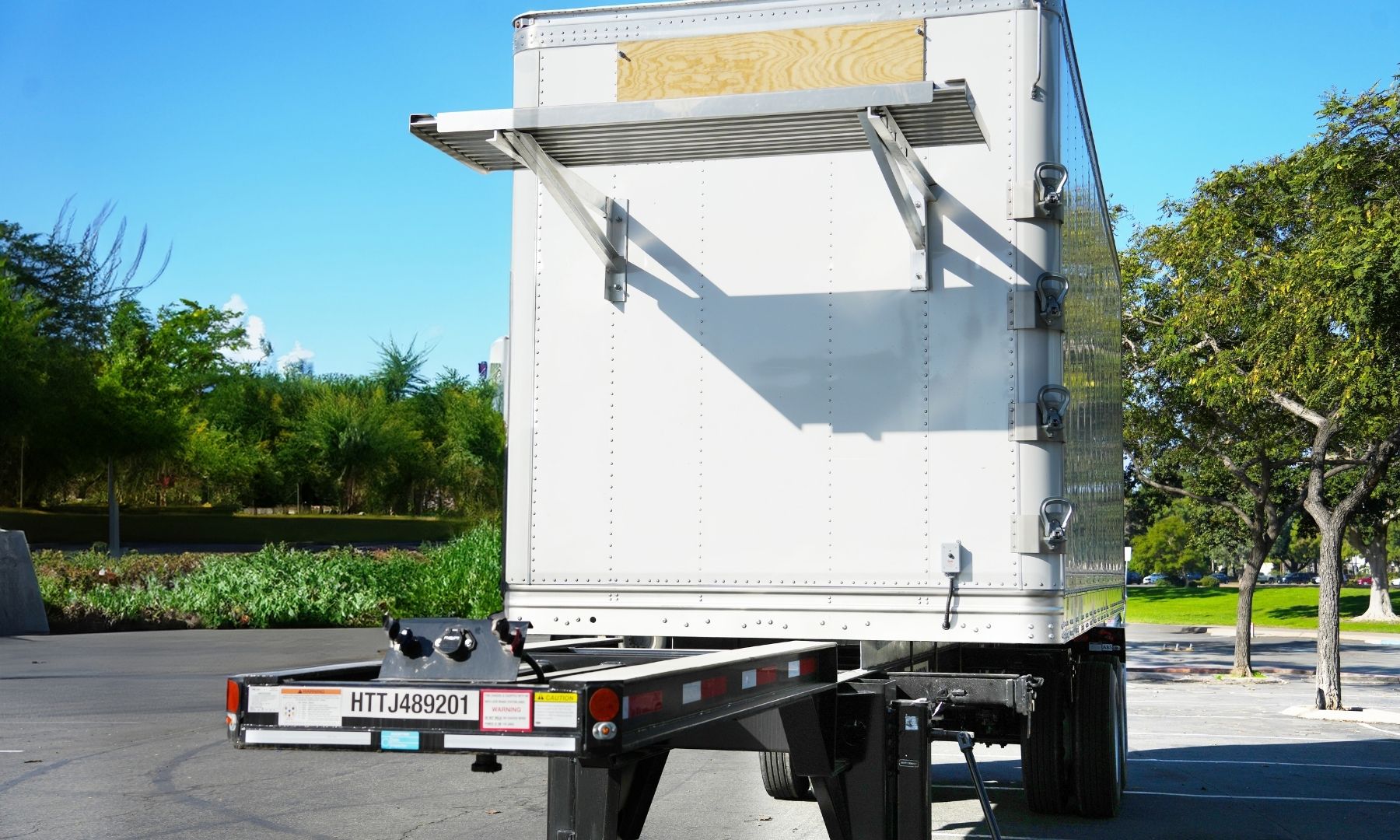

Pull-Out Access Platform
Bustin TAP200 pull-out platform.

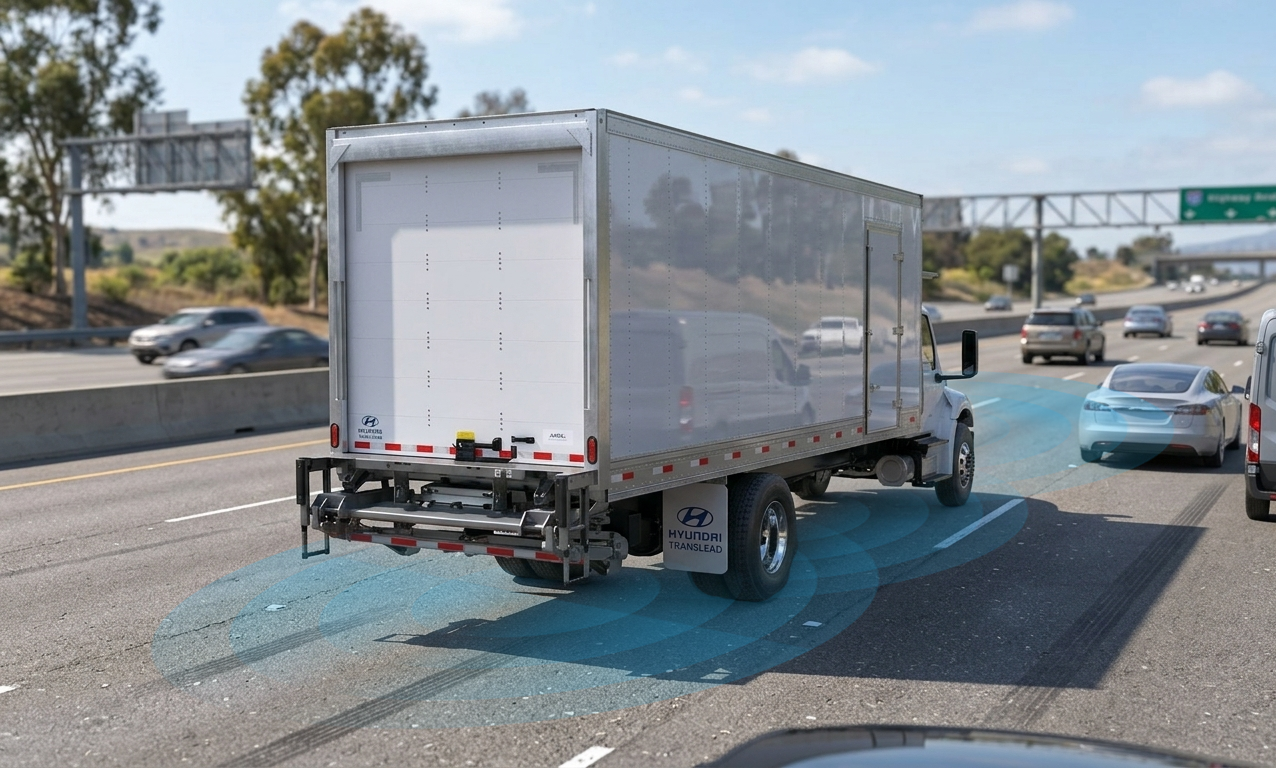

LinkVue System Compatibility
Compatible with the HT LinkVue 360-degree view camera system.
Select the tabs above to view each specification category.
Product Specifications
Juneau is built to deliver enhanced thermal performance, optimized cargo capacity, and simplified logistics through a flexible kit-delivery design.
Length
Width
Height
Cubic Capacity
Select the tabs above to view each specification category.
Body Construction
Juneau is built with high-quality components and supports wide range of configurable options.
Base
Floor
Side Sheets
Liner
Side Stiffeners (Sidewall post)
Roof
Roof Bow (Post)
Front Wall
Rear Frame
Sidewall
Rear Door
Scuff Band
TRU
Front Post
Bottom Rail
Crossmembers
Select the tabs above to view each specification category.
Optional Features
Browse our advanced options for enhancing your product.
Side Door with Integrated Sidestep
Side door with hot-dipped galvanized side door frame.
Tuck-Away Liftgate with Integrated Ramp
Maxon GPTWR3 tuck-away liftgate.
Advanced Insulation Package
Advanced insulation in sidewalls,
roof & sidewalls.
Composite Structural Members
Composite structural members including posts and roof bows.
Pull-Out Access Platform
Bustin TAP200 pull-out platform.
LinkVue System Compatibility
Compatible with the HT LinkVue 360-degree view camera system.
Insulation Options
Juneau offers two insulation systems designed to support different efficiency and capacity requirements.
Standard Insulation
Standard PU insulation provides enhanced thermal performance and reliable components and is ideal for refrigerated delivery across various industries and applications.
Advanced
Insulation
Advanced Insulation with HT HANA delivers superior thermal efficiency, reduces thermal transfer, and provides greater cargo interior space with thinner sidewall and roof construction.
Expanding Possibilities in Refrigerated Truck Bodies
Explore why and how Hyundai Translead trailers are more durable and made to meet your needs.
Flexibility
Designed for kit delivery, allowing ease of distribution and on-site assembly.
Compatibility
Offers universal compatibility with refrigeration units.
Reliability
Engineered with high-quality structural components for consistent performance.
Customization
Supports various customized options to meet specifc cargo and loading requirements.
